F15CEH (2025)
STARTING MOTOR

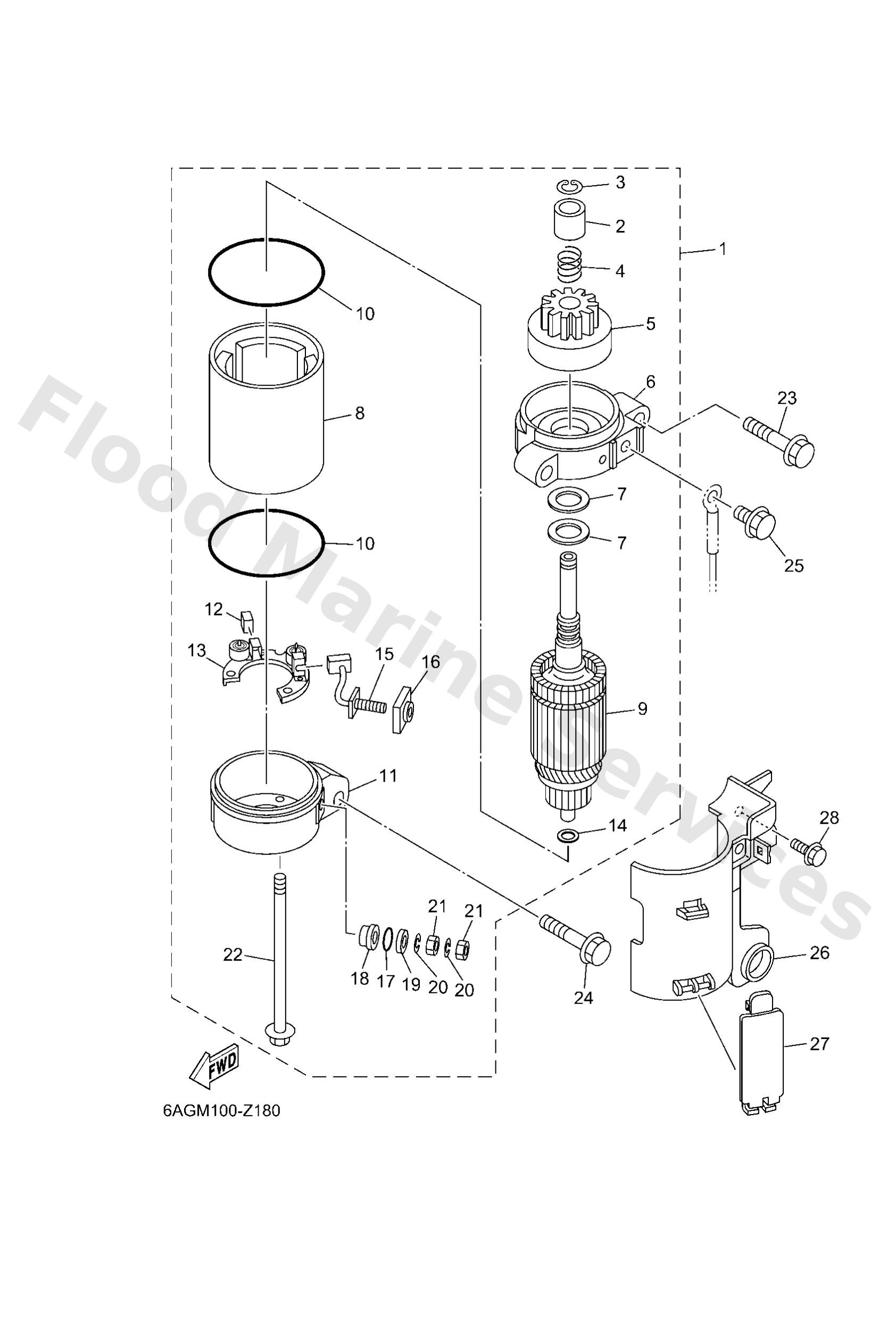

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6AH8180010
Starting motor assembly
Loading…
↗
2
6AH8185900
Stopper, Pinion
Loading…
↗
3
6898188400
Clip,Pinion Stopper
Loading…
↗
4
6898185800
Spring, Return
Loading…
↗
5
6898180720
Gear assembly, Starting Motor
Loading…
↗
6
6AH8183010
Front Bracket assembly
Loading…
↗
7
6898183500
UN
Washer
Loading…
↗
8
6898181020
Stator assembly
Loading…
↗
9
6898185020
Armature assembly
Loading…
↗
10
6898184720
O-Ring
Loading…
↗
11
6AH8182010
Rear Bracket assembly
Loading…
↗
12
6898181220
Brush 2
Loading…
↗
13
6AH8184000
Brush Holder assembly
Loading…
↗
14
6898182400
Washer 2
Loading…
↗
15
6AH8181110
Brush 1
Loading…
↗
16
6898182H00
Bush, Terminal 2
Loading…
↗
17
6898182L00
O-Ring 1
Loading…
↗
18
6898182G00
Bush, Terminal
Loading…
↗
19
6898182E00
Washer
Loading…
↗
20
6898182F00
Washer
Loading…
↗
21
6898182A00
Nut
Loading…
↗
22
6898182620
Bolt
Loading…
↗
23
9751308545
Bolt, with washer
Loading…
↗
24
9751308535
Bolt, with washer
Loading…
↗
25
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
26
6AH8194200
Cover
Loading…
↗
27
6AH8258100
Stay, cord clamp
Loading…
↗
28
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
