F25AMH (2002)
STARTING MOTOR

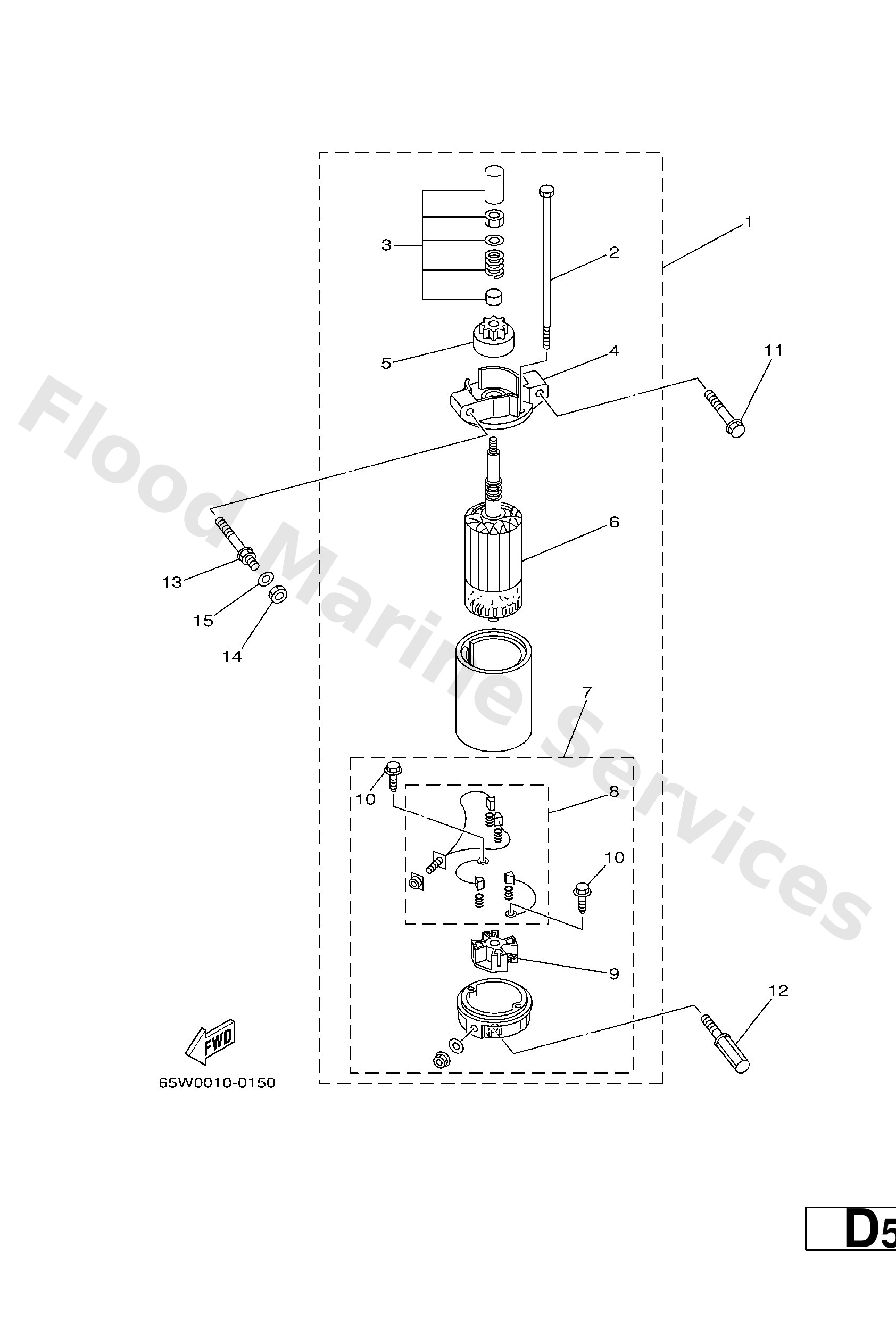

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
65W8180001
Starting motor assembly
Loading…
↗
2
65W8182600
Bolt
Loading…
↗
3
65W8185701
Retainer
Loading…
↗
4
65W8183000
-
Loading…
↗
5
65W8180700
Gear assembly, starting motor
Loading…
↗
6
65W8185001
Armature assembly
Loading…
↗
7
65W8182000
Rear bracket assembly
Loading…
↗
8
65W8180100
Brush set
Loading…
↗
9
65W8184000
Brush holder assembly
Loading…
↗
10
65W8182S00
Screw
Loading…
↗
11
9011908M39
Bolt, with washer
Loading…
↗
12
9010908M77
Bolt
Loading…
↗
13
9010908M78
Bolt
Loading…
↗
14
9538008700
Nut(661)
Loading…
↗
15
9299008600
Washer, plain (663)
Loading…
↗
