F25DMH (2015)
STARTING MOTOR

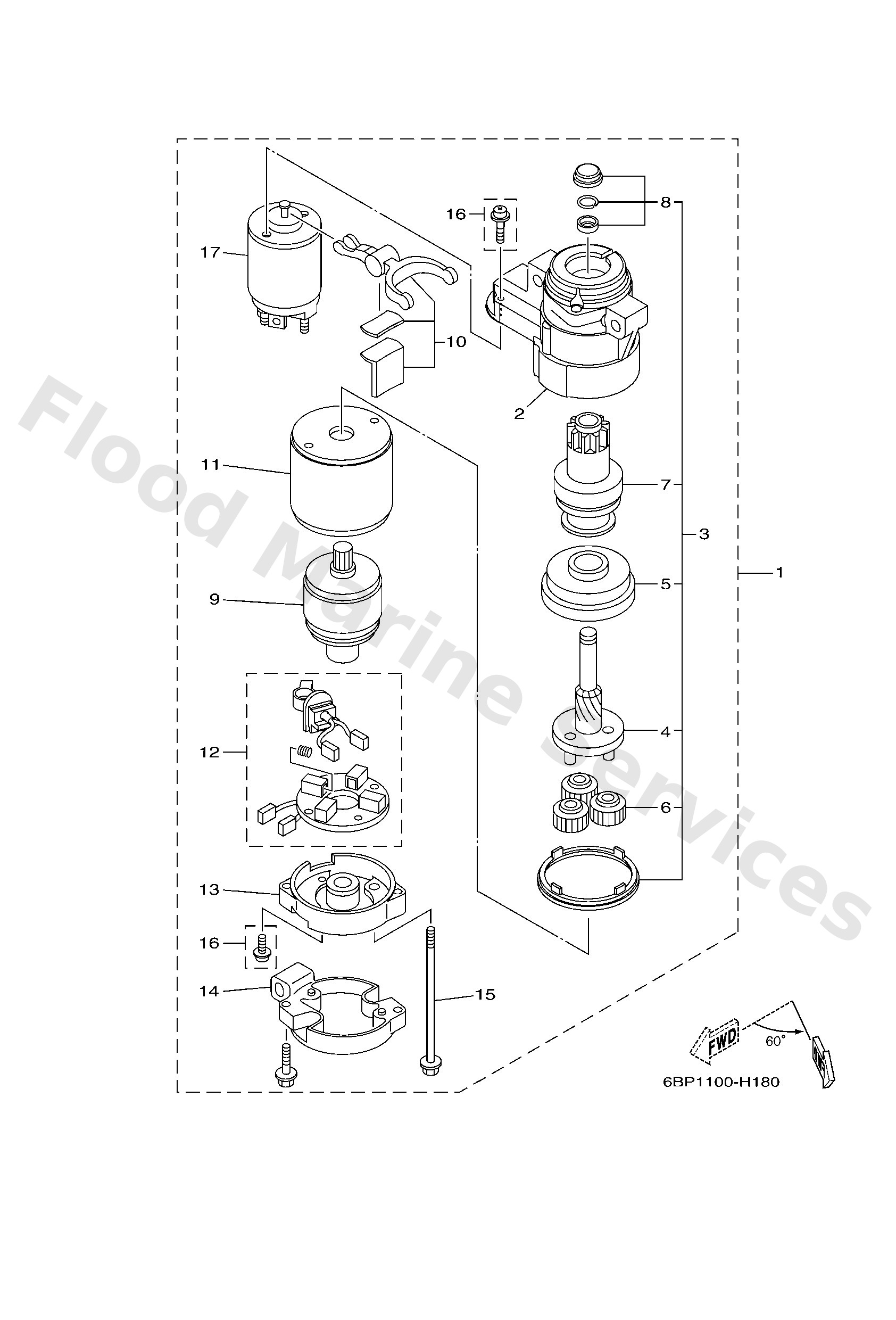

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6BG8180000
Starting motor assembly
Loading…
↗
2
6BG8183000
Front bracket assembly
Loading…
↗
3
6BG8180700
Gear assembly, starting motor
Loading…
↗
4
6BG8183600
Spring, lever
Loading…
↗
5
6BG8189100
Gear, ring
Loading…
↗
6
6AW8183T00
Gear, idler
Loading…
↗
7
6BG8183200
Clutch, over run
Loading…
↗
8
6BG8185700
Pinion stopper set
Loading…
↗
9
6BG8185000
Armature assembly
Loading…
↗
10
6BG8183900
Lever assembly
Loading…
↗
11
6BG8181000
Stator assembly
Loading…
↗
12
6BG8184000
Brush holder assembly
Loading…
↗
13
6BG8182000
Rear bracket assembly
Loading…
↗
14
6BG8182J00
Bracket complete
Loading…
↗
15
6BG8182600
Bolt
Loading…
↗
16
6BG8184600
Screw
Loading…
↗
17
6BG8194100
Starter relay assembly
Loading…
↗
