Yamaha Outboard Parts - STARTING MOTOR - F40BET (2004) | Flood Marine

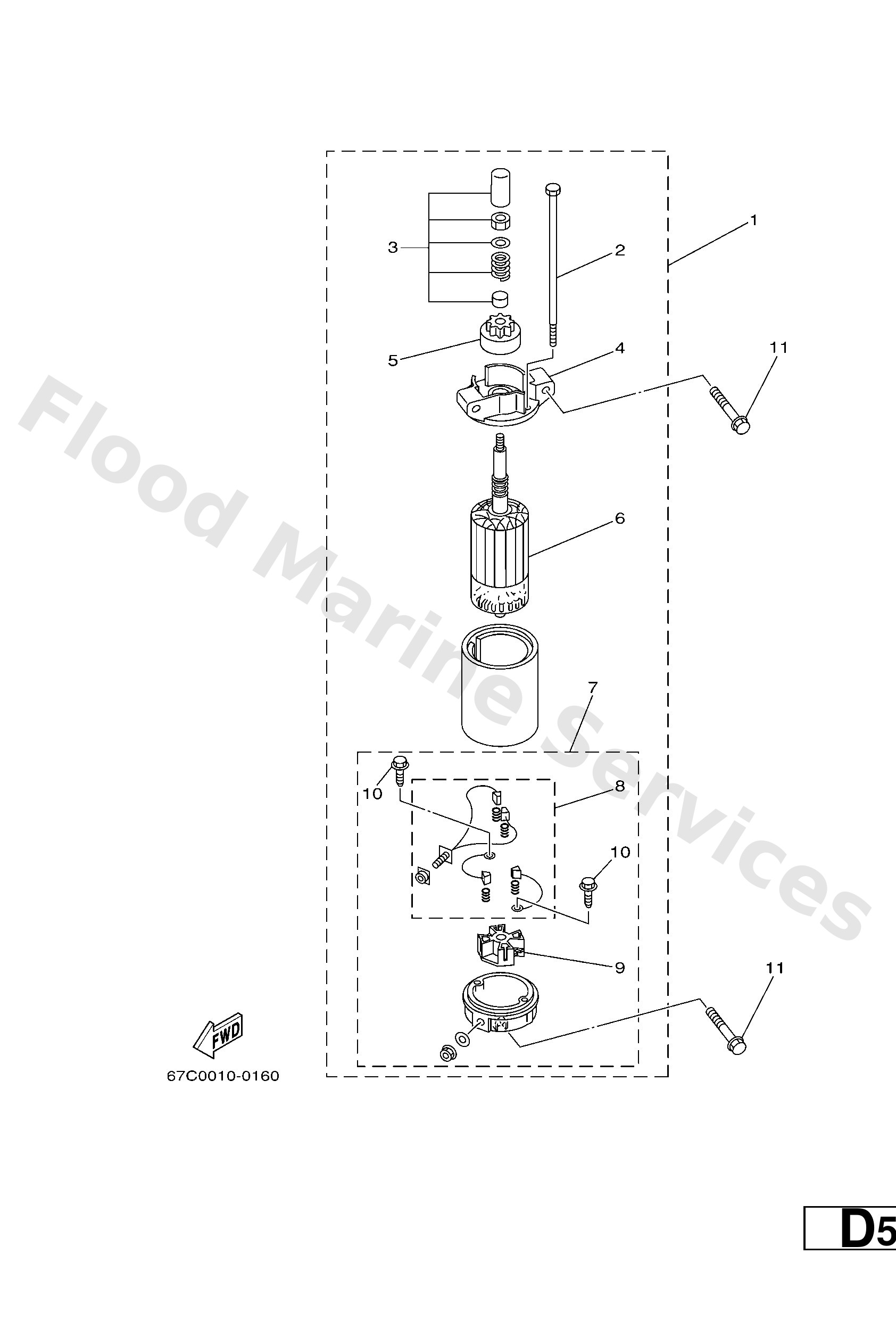

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
67C8180000
Starting motor assembly
Loading…

↗
2
67C8182600
-
Loading…

↗
3
65W8185701
Retainer
Loading…

↗
4
65W8183000
-
Loading…

↗
5
65W8180700
Gear assembly, starting motor
Loading…

↗
6
67C8185000
-
Loading…

↗
7
65W8182000
Rear bracket assembly
Loading…

↗
8
65W8180100
Brush set
Loading…

↗
9
65W8184000
Brush holder assembly
Loading…

↗
10
65W8182S00
Screw
Loading…

↗
11
9011908M39
Bolt, with washer
Loading…

↗
