F40EHD (2005)
STARTING MOTOR

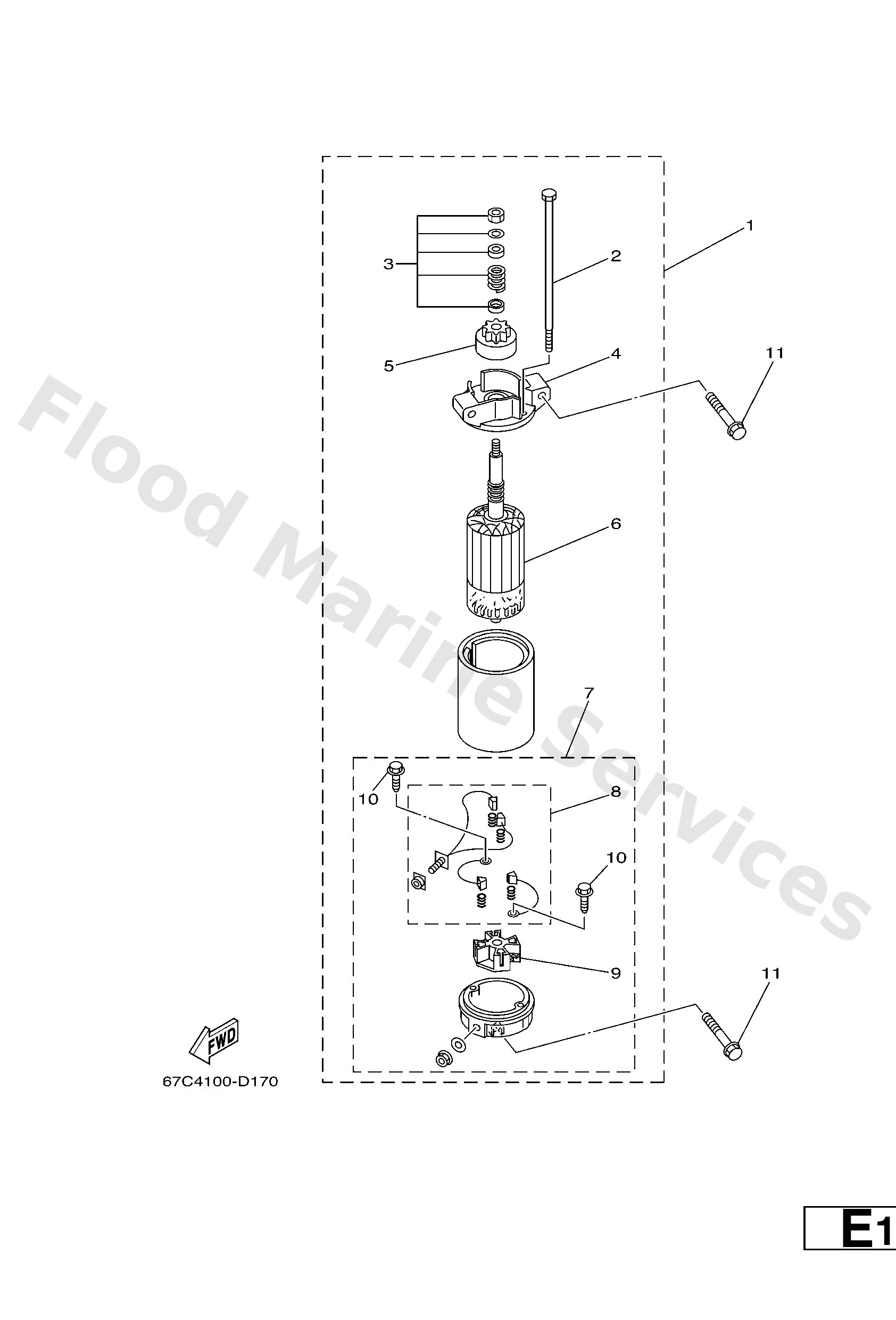

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
67C8180001
Starting motor assembly
Loading…
↗
2
67C8182600
-
Loading…
↗
3
65W8185702
Pinion stopper set
Loading…
↗
4
65W8183000
-
Loading…
↗
5
65W8180700
Gear assembly, starting motor
Loading…
↗
6
67C8185001
Armature assembly
Loading…
↗
7
65W8182000
Rear bracket assembly
Loading…
↗
8
65W8180100
Brush set
Loading…
↗
9
65W8184000
Brush holder assembly
Loading…
↗
10
65W8182S00
Screw
Loading…
↗
11
9011908M39
Bolt, with washer
Loading…
↗
