F50AEHT (2002)
STARTING MOTOR

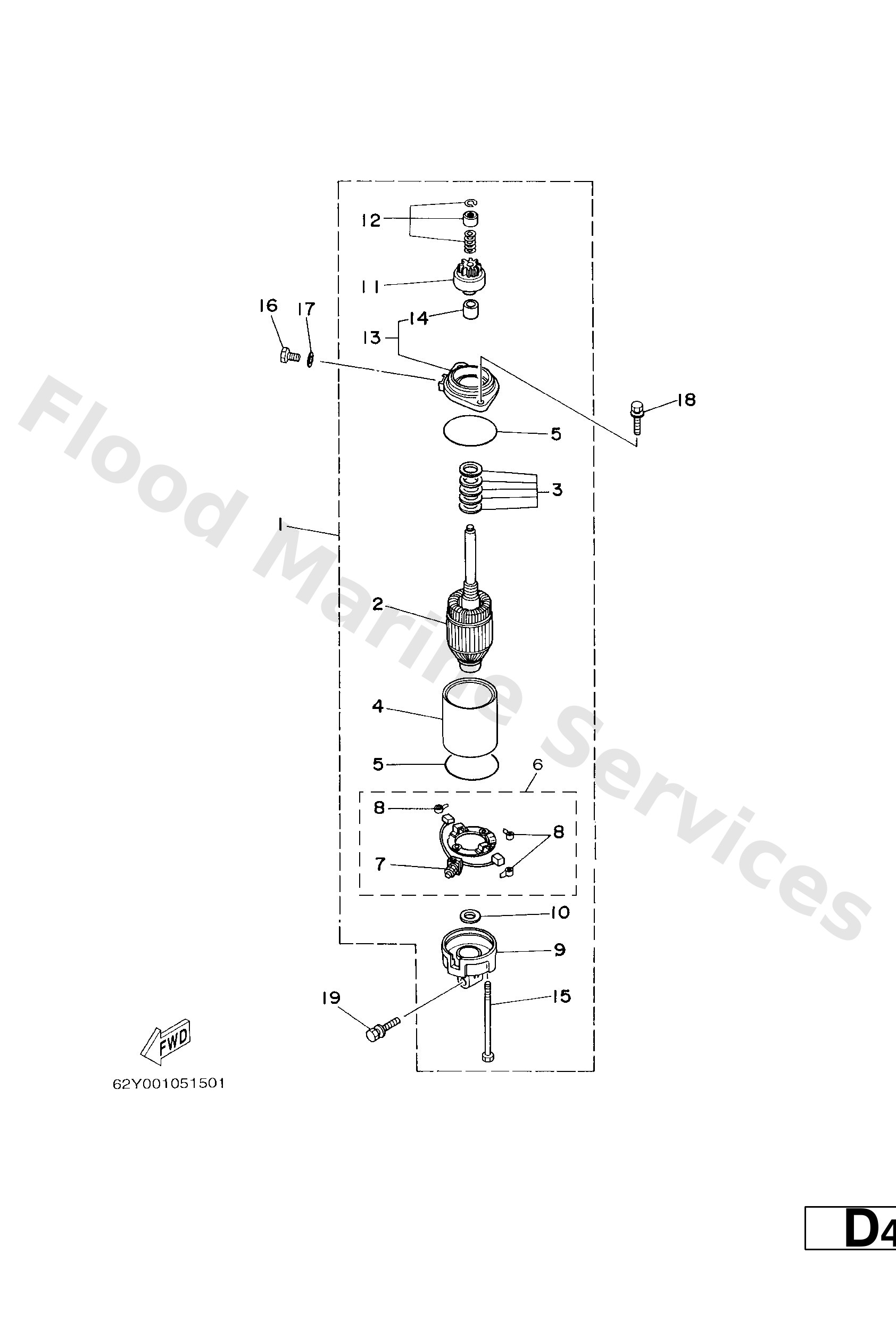

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6E58180012
Starting motor assembly
Loading…
↗
2
6E58185011
Armature assembly
Loading…
↗
3
6E58180910
Washer Kit
Loading…
↗
4
6E58181010
Stator assembly
Loading…
↗
5
6E58184710
O-ring
Loading…
↗
6
6E58184010
Brush holder ass'y
Loading…
↗
7
6E58180110
Brush ass'y
Loading…
↗
8
6E58181310
Spring, Brush
Loading…
↗
9
6E58182011
Rear Bracket assembly
Loading…
↗
10
6E58182400
Washer 2
Loading…
↗
11
6E58180711
Pinion assembly
Loading…
↗
12
61H8185700
Retainer
Loading…
↗
13
6E58183010
Front Bracket assembly
Loading…
↗
14
6888183100
Metal, front
Loading…
↗
15
6E58182610
Bolt
Loading…
↗
16
9709508016
Bolt, hexagon deep recess
Loading…
↗
17
9299508600
Washer, plain (663)
Loading…
↗
18
9011908M76
Bolt, with washer(6e5)
Loading…
↗
19
9011908M77
Bolt, with washer(6e5)
Loading…
↗
