F80AET (2003)
STARTING MOTOR

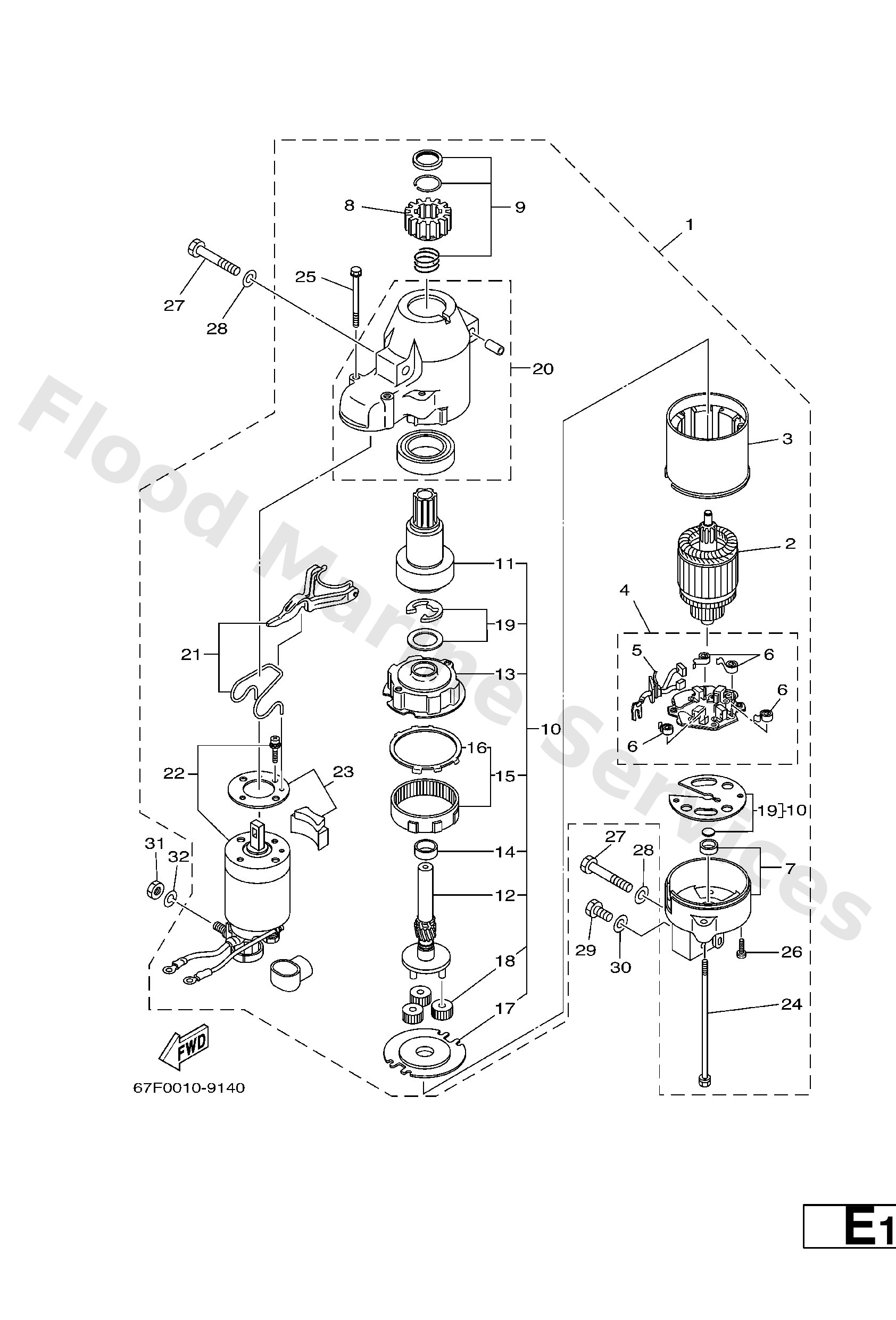

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
67F−81800−02
Starting motor assembly
Loading…
↗
2
67F−81850−00
Armature assembly
Loading…
↗
3
67F−81810−00
Stator assembly
Loading…
↗
4
67F−81840−00
Brush holder assembly
Loading…
↗
5
67F−81801−00
Brush set
Loading…
↗
6
67F−81813−00
Spring, brush
Loading…
↗
7
67F−81820−00
Rear bracket assembly
Loading…
↗
8
67F−81808−00
Pinion assembly
Loading…
↗
9
67F−81857−00
Pinion stopper set
Loading…
↗
10
67F−81807−00
Gear assembly, starting motor
Loading…
↗
11
67F−81832−00
Clutch, over run
Loading…
↗
12
67F−81836−00
Shaft, pinion
Loading…
↗
13
67F−81821−00
Bracket, center 1
Loading…
↗
14
67F−81841−00
Bearing
Loading…
↗
15
67F−81891−00
Gear, ring
Loading…
↗
16
67F−8183R−00
Gasket
Loading…
↗
17
67F−81830−00
Bracket, center 2
Loading…
↗
18
67F−8183T−00
Gear, Idler
Loading…
↗
19
67F−81809−00
Washer kit
Loading…
↗
20
67F−81842−00
Cover
Loading…
↗
21
67F−81839−00
Lever assembly
Loading…
↗
22
67F−81941−01
Starter Relay assembly
Loading…
↗
23
67F−81869−00
Cover, dust
Loading…
↗
24
6K7−81826−10
Bolt
Loading…
↗
25
67F−81828−00
Bolt 2
Loading…
↗
26
67F−81846−00
Screw
Loading…
↗
27
97013−08045
Bolt
Loading…
↗
28
92903−08600
Washer, plain (663)
Loading…
↗
29
97013−08016
Bolt, hexagon
Loading…
↗
31
95333−08600
Nut(6l2)
Loading…
↗
32
92903−08100
Ybs67-8 washer, spring
