F8FMH (2025)
STARTING MOTOR

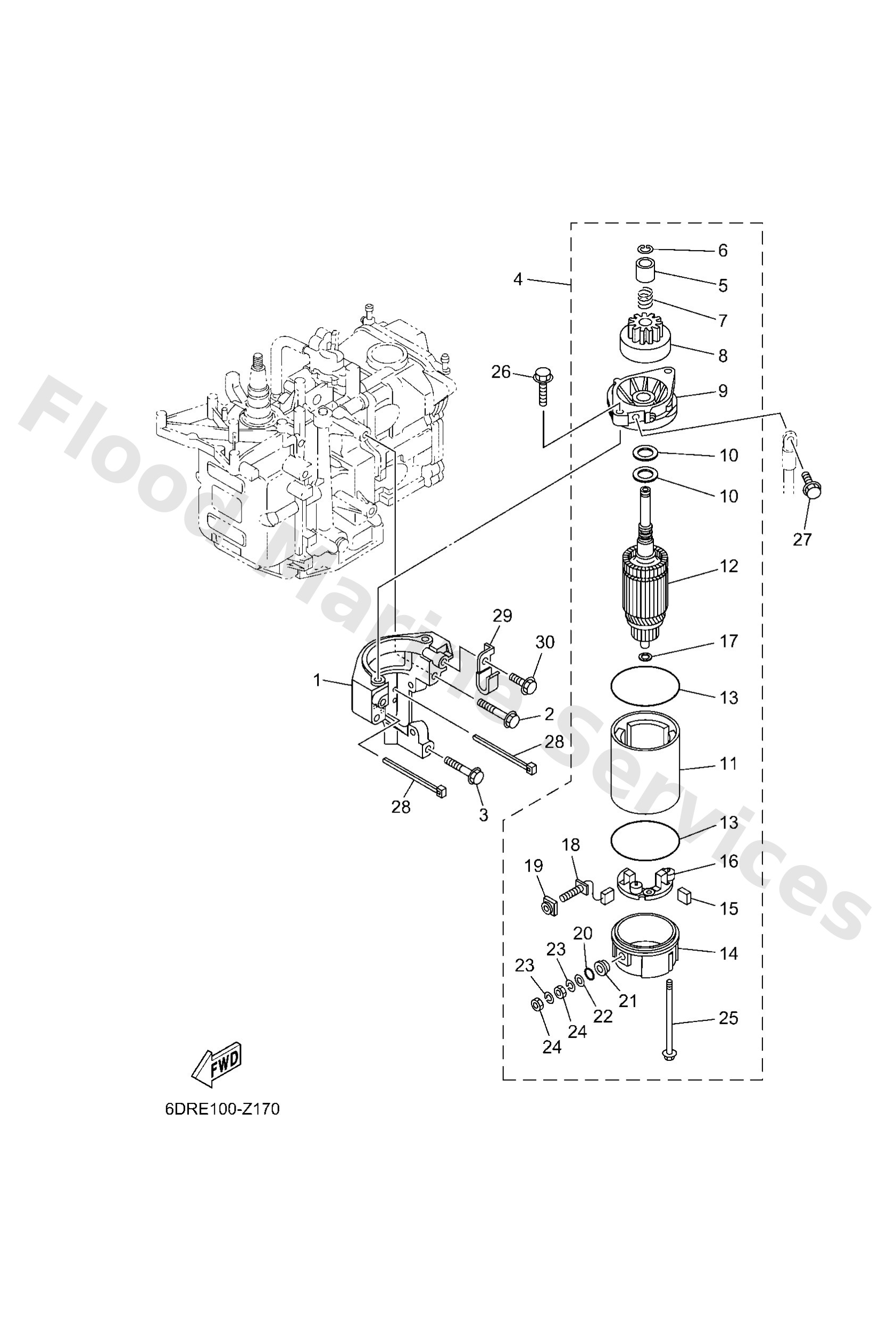

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
68T8182201
Bracket, starting motor
Loading…
↗
2
9011908046
Bolt, with washer
Loading…
↗
3
9011908020
Bolt, with washer
Loading…
↗
4
68T8180010
Starting motor assembly
Loading…
↗
5
68T8185900
Stopper, Pinion
Loading…
↗
6
6898188400
Clip,Pinion Stopper
Loading…
↗
7
6898185800
Spring, Return
Loading…
↗
8
6898180720
Gear assembly, Starting Motor
Loading…
↗
9
68T8183000
Front Bracket assembly
Loading…
↗
10
6898183500
UN
Washer
Loading…
↗
11
6898181020
Stator assembly
Loading…
↗
12
6898185020
Armature assembly
Loading…
↗
13
6898184720
O-Ring
Loading…
↗
14
6898182020
Rear Bracket assembly
Loading…
↗
15
6898181220
Brush 2
Loading…
↗
16
6898184020
Brush Holder assembly
Loading…
↗
17
6898182400
Washer 2
Loading…
↗
18
6898181120
Brush 1
Loading…
↗
19
6898182H00
Bush, Terminal 2
Loading…
↗
20
6898182L00
O-Ring 1
Loading…
↗
21
6898182G00
Bush, Terminal
Loading…
↗
22
6898182E00
Washer
Loading…
↗
23
6898182F00
Washer
Loading…
↗
24
6898182A00
Nut
Loading…
↗
25
6898182620
Bolt
Loading…
↗
26
9011908M76
Bolt, with washer(6e5)
Loading…
↗
27
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
28
9046511M10
MH-FOR RUS
Clamp
Loading…
↗
29
9046508M99
Clamp
Loading…
↗
30
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
