F9.9HE1 (2022)
STARTING MOTOR

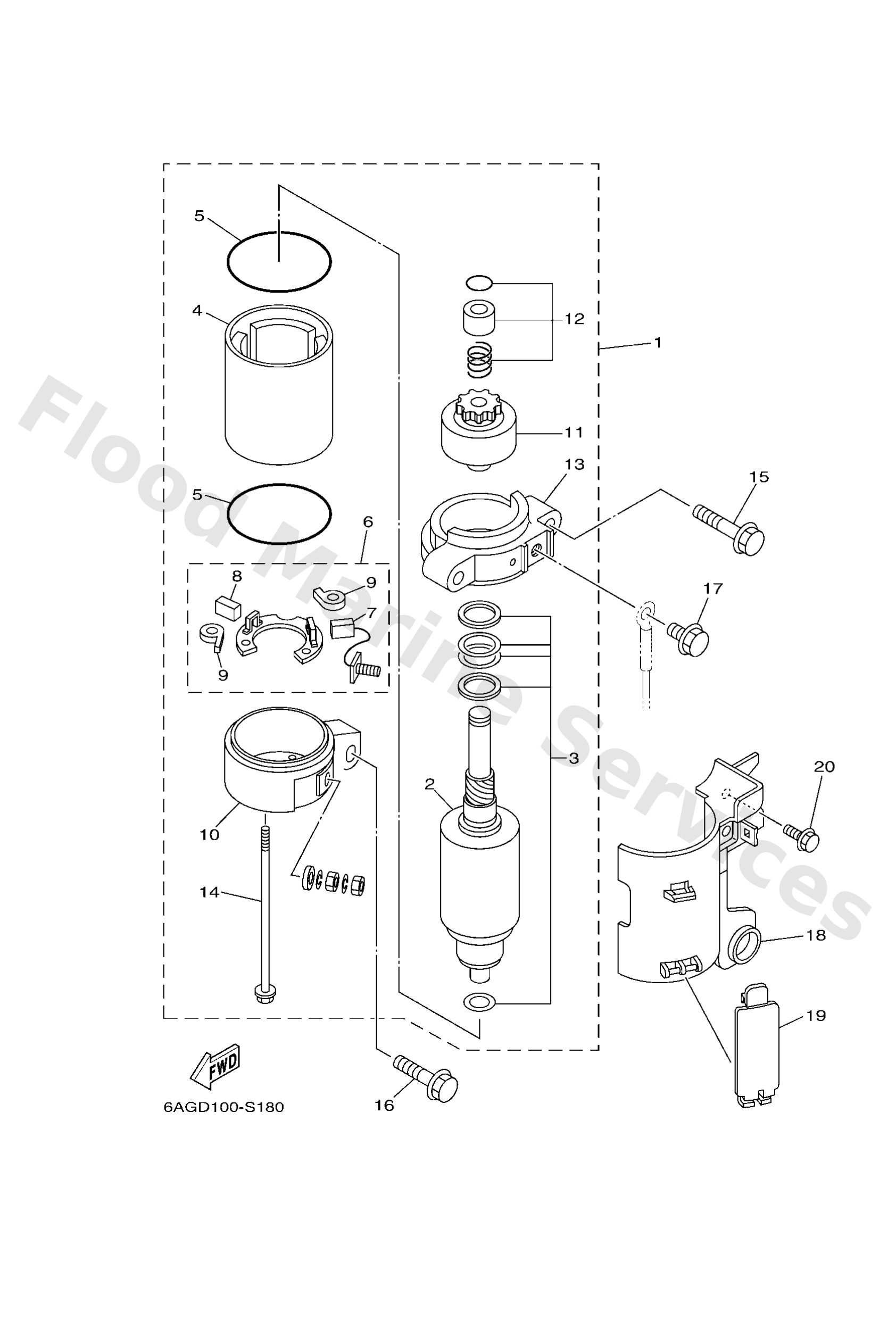

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6AH8180001
Starting motor assembly
Loading…
↗
2
6898185012
Armature assembly
Loading…
↗
3
6898180911
Washer kit
Loading…
↗
4
6898181011
Stator ass'y
Loading…
↗
5
6898184711
O-ring
Loading…
↗
6
6898184011
Brush holder assembly
Loading…
↗
7
6898181111
Brush 1
Loading…
↗
8
6898181211
Brush 2
Loading…
↗
9
6898181310
Spring, brush
Loading…
↗
10
6AH8182001
Rear bracket assembly
Loading…
↗
11
6898180712
Pinion assembly
Loading…
↗
12
68T8185700
Pinion stopper set
Loading…
↗
13
6AH8183000
Front bracket assembly
Loading…
↗
14
6898182610
Bolt
Loading…
↗
15
9751308545
Bolt, with washer
Loading…
↗
16
9751308535
Bolt, with washer
Loading…
↗
17
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
18
6AH8194200
Cover
Loading…
↗
19
6AH8258100
Stay, cord clamp
Loading…
↗
20
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
