F9.9JE (2020)
STARTING MOTOR

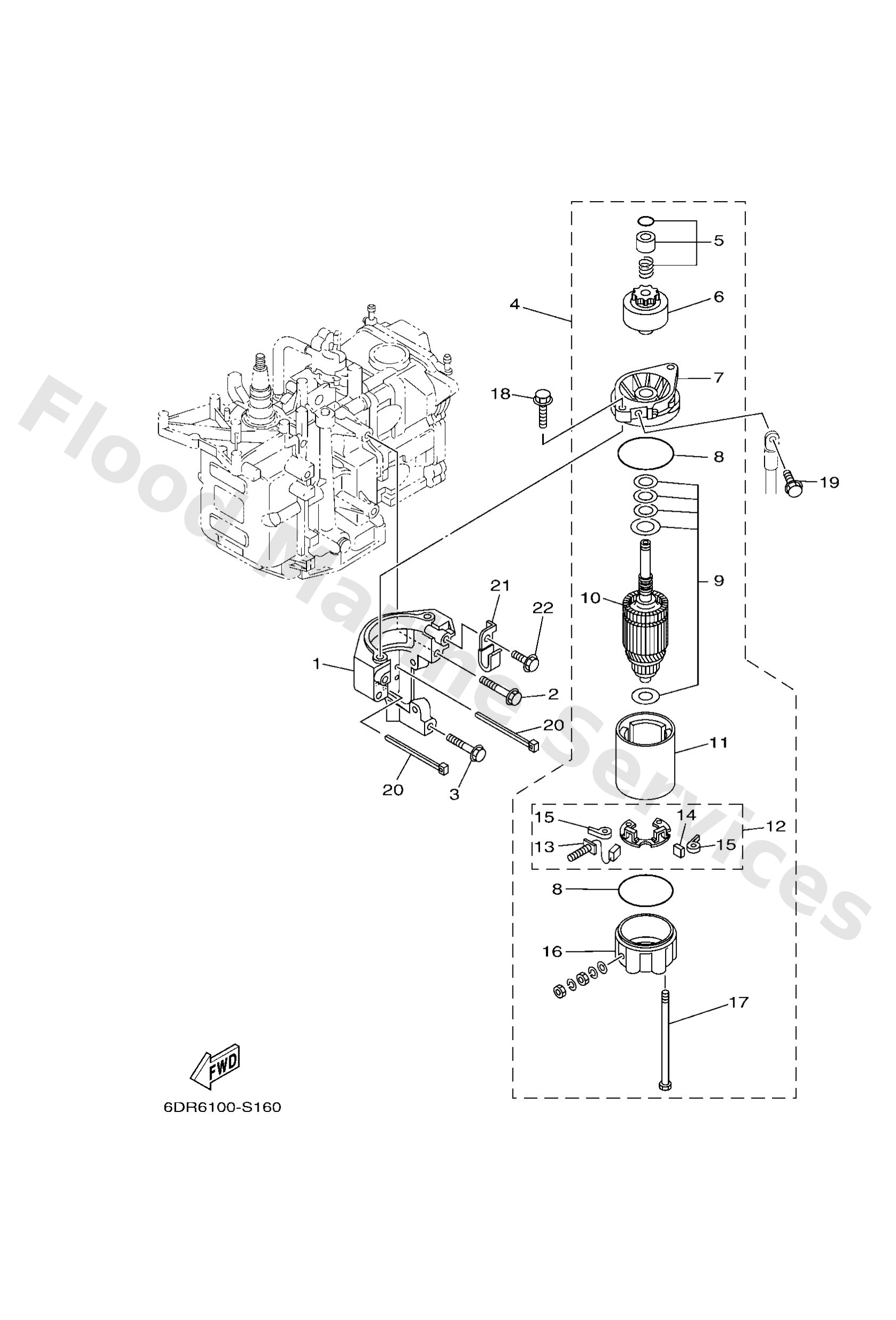

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
68T8182201
Bracket, starting motor
Loading…
↗
2
9011908046
Bolt, with washer
Loading…
↗
3
9011908020
Bolt, with washer
Loading…
↗
4
68T8180000
Starting motor assembly
Loading…
↗
5
68T8185700
Pinion stopper set
Loading…
↗
6
6898180712
Pinion assembly
Loading…
↗
7
6F58183010
Front cover assembly
Loading…
↗
8
6898184711
O-ring
Loading…
↗
9
6898180911
Washer kit
Loading…
↗
10
6898185012
Armature assembly
Loading…
↗
11
6898181011
Stator ass'y
Loading…
↗
12
6898184011
Brush holder assembly
Loading…
↗
13
6898181111
Brush 1
Loading…
↗
14
6898181211
Brush 2
Loading…
↗
15
6898181310
Spring, brush
Loading…
↗
16
6898182011
Rear cover ass'y
Loading…
↗
17
6898182610
Bolt
Loading…
↗
18
9011908M76
Bolt, with washer(6e5)
Loading…
↗
19
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
20
9046511M10
MH-FOR RUS
Clamp
Loading…
↗
21
9046508M99
Clamp
Loading…
↗
22
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
