Yamaha Outboard Parts - STARTING MOTOR - FL115AET (2002) | Flood Marine

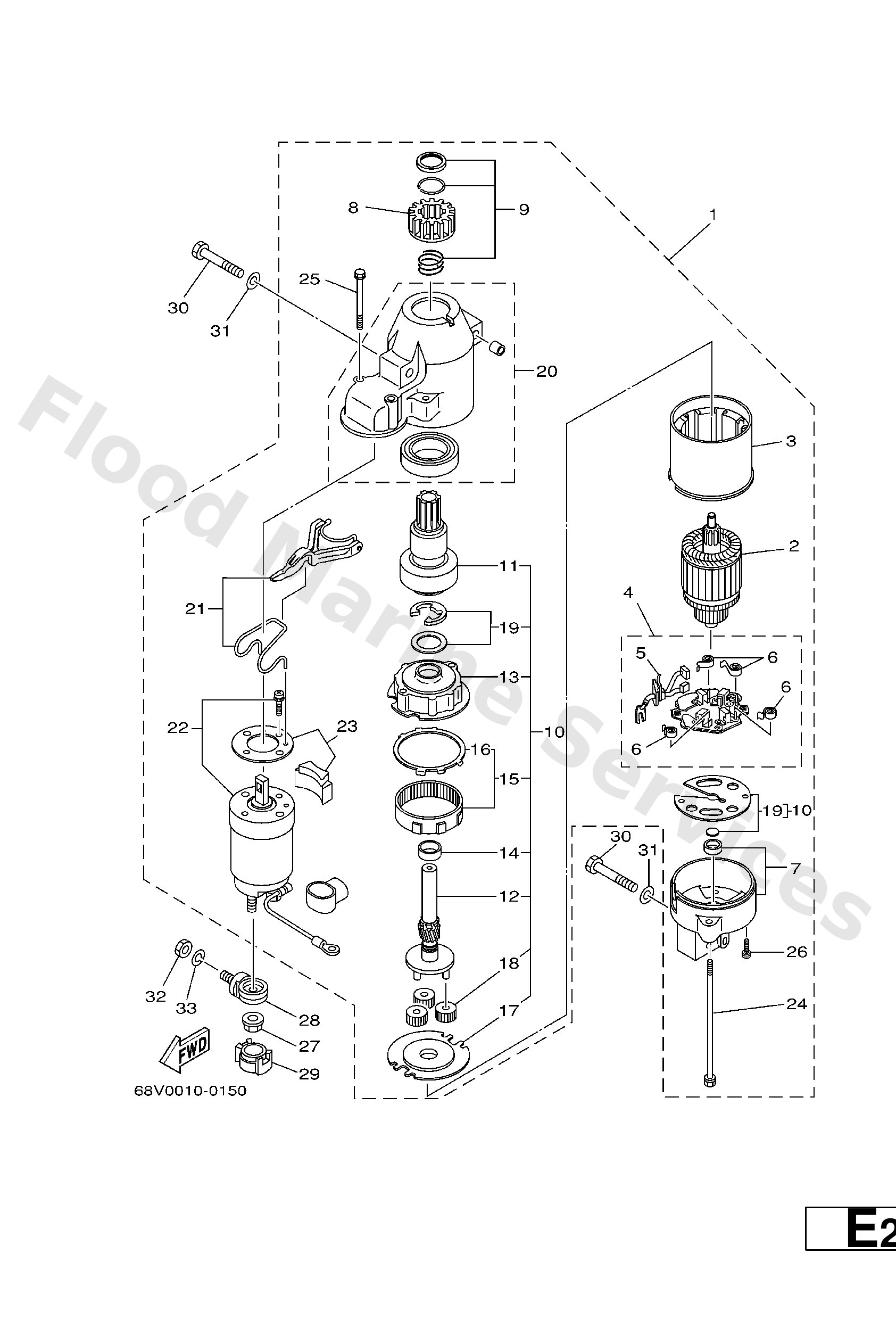

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
68V−81800−01
Starting motor assembly
Loading…

↗
2
67F−81850−00
Armature assembly
Loading…

↗
3
67F−81810−00
Stator assembly
Loading…

↗
4
68F−81840−00
Brush holder assembly
Loading…

↗
5
67F−81801−00
Brush set
Loading…

↗
6
67F−81813−00
Spring, brush
Loading…

↗
7
68F−81820−00
Rear bracket assembly
Loading…

↗
8
67F−81808−00
Pinion assembly
Loading…

↗
9
67F−81857−00
Pinion stopper set
Loading…

↗
10
67F−81807−00
Gear assembly, starting motor
Loading…

↗
11
67F−81832−00
Clutch, over run
Loading…

↗
12
67F−81836−00
Shaft, pinion
Loading…

↗
13
67F−81821−00
Bracket, center 1
Loading…

↗
14
67F−81841−00
Bearing
Loading…

↗
15
67F−81891−00
Gear, ring
Loading…

↗
16
67F−8183R−00
Gasket
Loading…

↗
17
67F−81830−00
Bracket, center 2
Loading…

↗
18
67F−8183T−00
Gear, Idler
Loading…

↗
19
67F−81809−00
Washer kit
Loading…

↗
20
67F−81842−00
Cover
Loading…

↗
21
67F−81839−00
Lever assembly
Loading…

↗
22
68V−81941−01
Starter relay assembly
Loading…

↗
23
67F−81869−00
Cover, dust
Loading…

↗
24
6K7−81826−10
Bolt
Loading…

↗
25
67F−81828−00
Bolt 2
Loading…

↗
26
67F−81846−00
Screw
Loading…

↗
27
90179−08003
Nut
Loading…

↗
28
68F−81925−00
Terminal
Loading…

↗
29
68F−82582−00
Cover, wire harness
Loading…

↗
30
97013−08045
Bolt
Loading…

↗
31
92903−08600
Washer, plain (663)
Loading…

↗
32
95333−08600
Nut(6l2)
Loading…

↗
33
92903−08100
Ybs67-8 washer, spring
Loading…

↗
