Yamaha Outboard Parts - STARTING MOTOR - FL200CET (2021) | Flood Marine

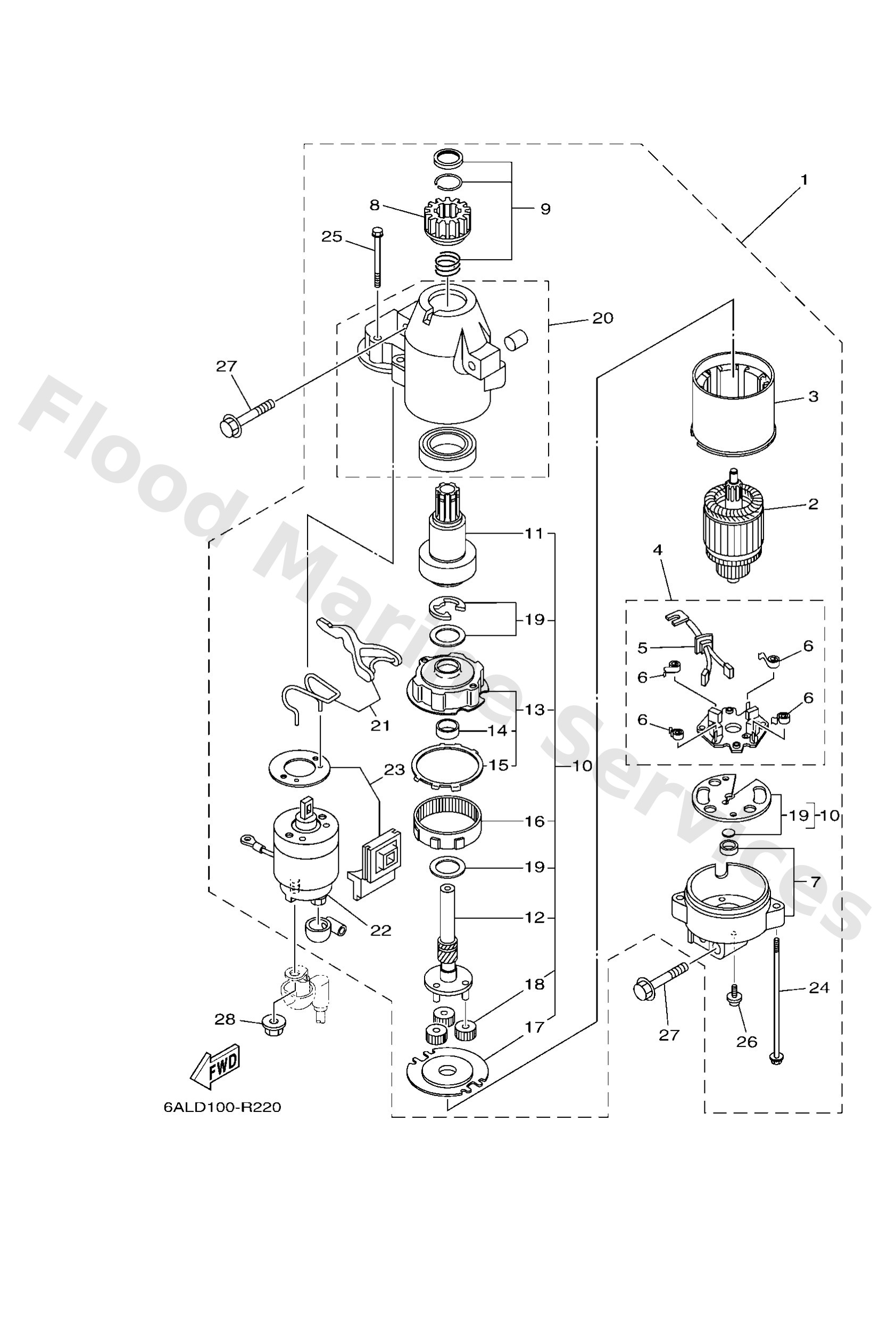

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
6BR8180002
Starting motor assembly
Loading…

↗
2
67F8185000
Armature assembly
Loading…

↗
3
67F8181000
Stator assembly
Loading…

↗
4
69J8184011
Brush holder assembly
Loading…

↗
5
69J8180111
Brush set
Loading…

↗
6
67F8181300
Spring, brush
Loading…

↗
7
67F8182000
Rear bracket assembly
Loading…

↗
8
67F8180800
Pinion assembly
Loading…

↗
9
67F8185700
Pinion stopper set
Loading…

↗
10
67F8180700
Gear assembly, starting motor
Loading…

↗
11
67F8183200
Clutch, over run
Loading…

↗
12
67F8183600
Shaft, pinion
Loading…

↗
13
67F8182100
Bracket, center 1
Loading…

↗
14
67F8184100
Bearing
Loading…

↗
15
67F8183R00
Gasket
Loading…

↗
16
67F8189100 WITH 67F-8183R-00
Gear, ring
Loading…

↗
17
67F8183000
Bracket, center 2
Loading…

↗
18
60V8183T00
Gear, idler
Loading…

↗
19
67F8180900
Washer kit
Loading…

↗
20
69J8184200
Cover
Loading…

↗
21
6C58183900
Lever assembly
Loading…

↗
22
63P8194100
Starter relay assembly
Loading…

↗
23
6C58186900
Cover, dust
Loading…

↗
24
6K78182611
Bolt
Loading…

↗
25
69J8182800
Bolt 2
Loading…

↗
26
67F8184600
Screw
Loading…

↗
27
9751308545
Bolt, with washer
Loading…

↗
28
9017908003
Nut
Loading…

↗
