Yamaha Outboard Parts - STARTING MOTOR - FL225FET (2011) | Flood Marine

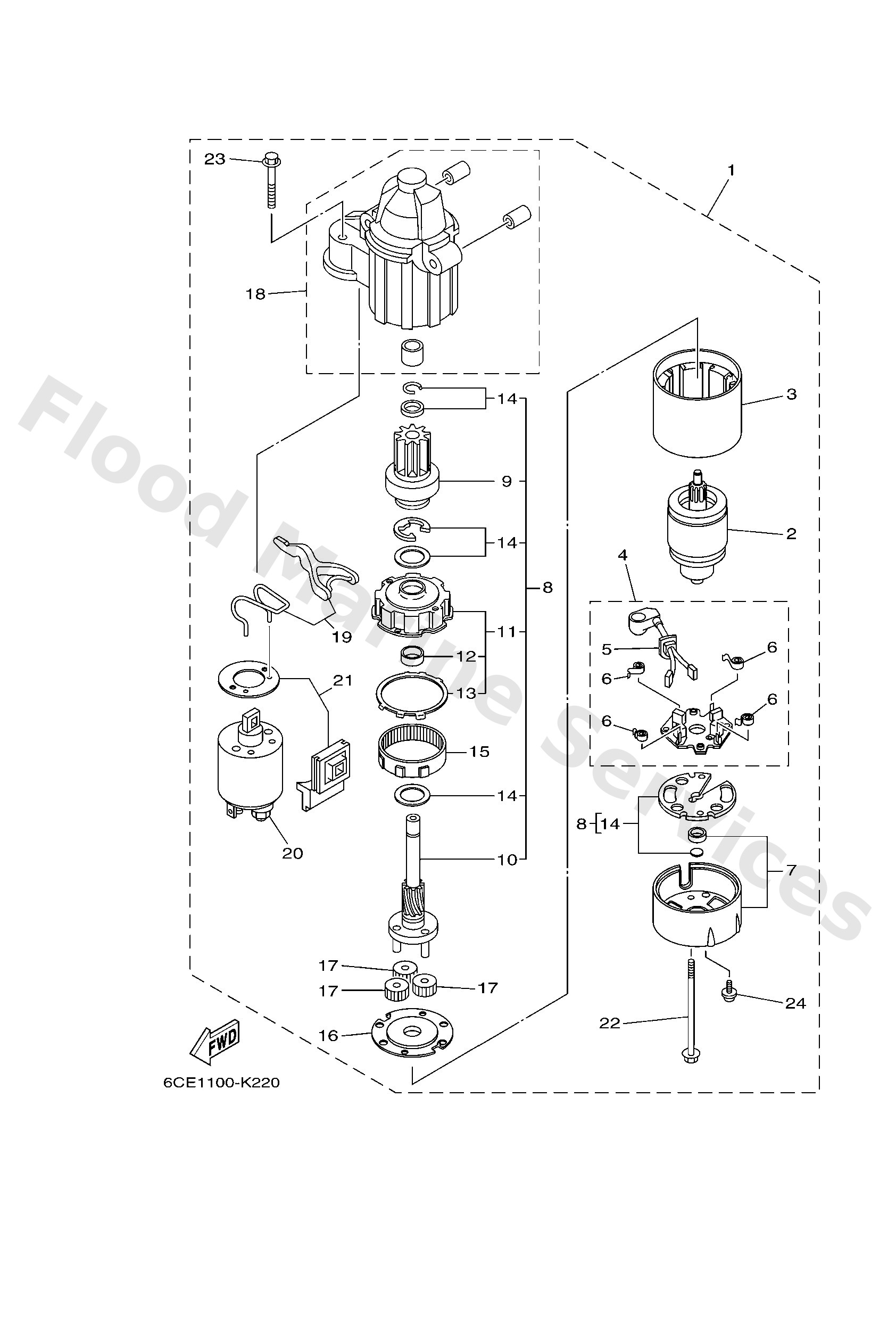

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
6CE8180000
Starting motor assembly
Loading…

↗
2
6CE8185000
Armature assembly
Loading…

↗
3
6CE8181000
Stator assembly
Loading…

↗
4
6CE8184000
Brush holder assembly
Loading…

↗
5
6CE8180100
Brush set
Loading…

↗
6
67F8181300
Spring, brush
Loading…

↗
7
6CE8182000
Rear bracket assembly
Loading…

↗
8
6CE8180700
Gear assembly, starting motor
Loading…

↗
9
6CB8183200
Clutch, over run
Loading…

↗
10
6CB8183600
Spring, lever
Loading…

↗
11
6CE8182100
Cover, switch
Loading…

↗
12
67F8184100
Bearing
Loading…

↗
13
67F8183R00
Gasket
Loading…

↗
14
6CB8180900
Washer kit
Loading…

↗
15
67F8189100
Gear, ring
Loading…

↗
16
6CE8183000
Front bracket assembly
Loading…

↗
17
60V8183T00
Gear, idler
Loading…

↗
18
6CE8184200
Cover
Loading…

↗
19
6CE8183900
Lever assembly
Loading…

↗
20
6C58194100
Starter relay assembly
Loading…

↗
21
6CE8186900
Cover, dust
Loading…

↗
22
6CB8182600
Bolt
Loading…

↗
23
69J8182800
Bolt 2
Loading…

↗
24
67F8184600
Screw
Loading…

↗
