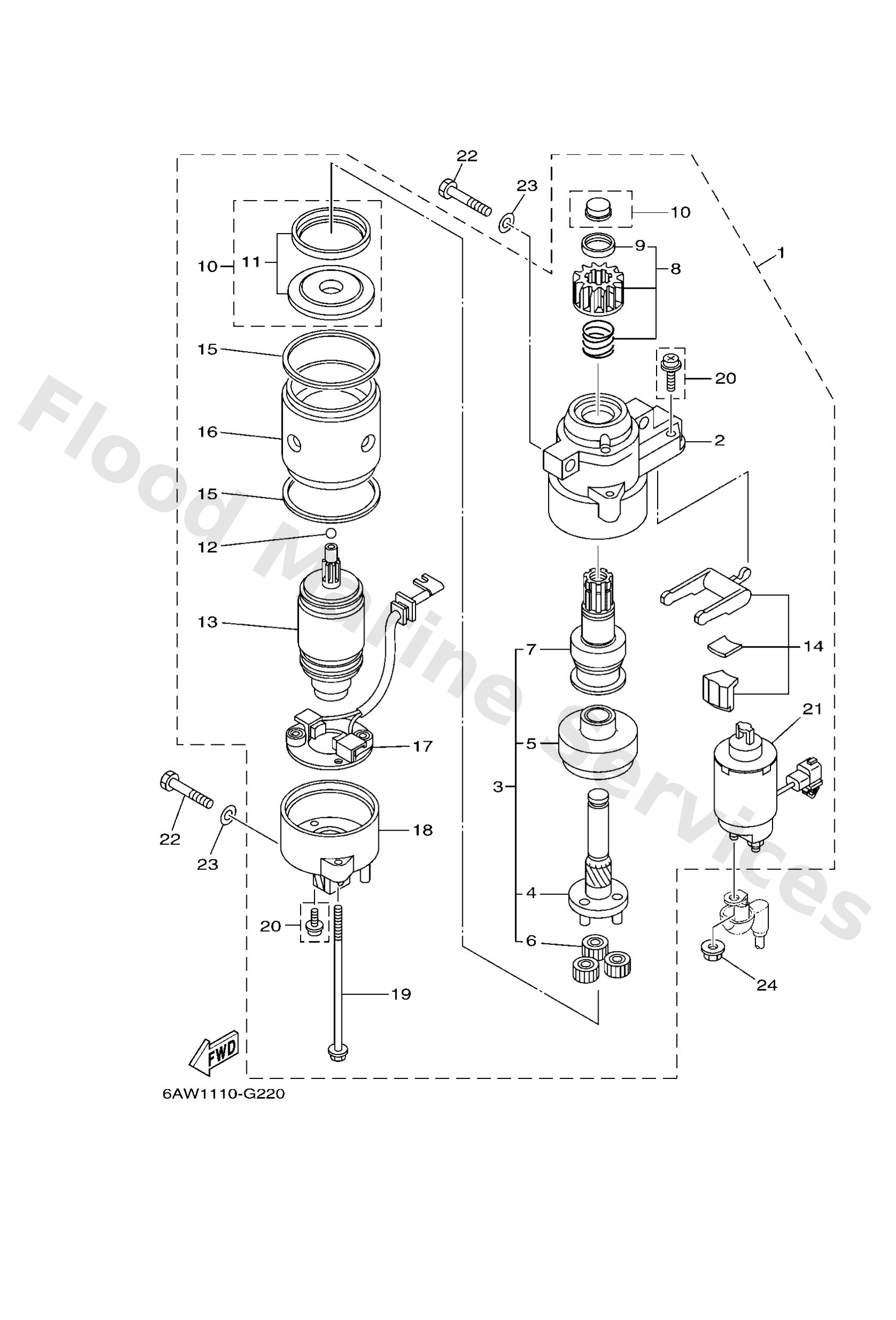

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
6AW8180000
Starting motor assembly
Loading…

↗
2
6AW8183000
Front bracket assembly
Loading…

↗
3
6AW8180700
Gear assembly, starting motor
Loading…

↗
4
6AW8183600
Spring, lever
Loading…

↗
5
6AW8189100
Gear, ring
Loading…

↗
6
6AW8183T00
Gear, idler
Loading…

↗
7
6AW8183200
Clutch, over run
Loading…

↗
8
6AW8180800
Pinion assembly
Loading…

↗
9
6AW8185700
Pinion stopper set
Loading…

↗
10
6AW8186200
Cap
Loading…

↗
11
6AW8183R00
Packing set
Loading…

↗
12
6AW8185400
Ball, steel
Loading…

↗
13
6AW8185000
Armature assembly
Loading…

↗
14
6AW8183900
Lever assembly
Loading…

↗
15
6AW8184200
Packing
Loading…

↗
16
6AW8181000
Stator assembly
Loading…

↗
17
6AW8184000
Brush holder assembly
Loading…

↗
18
6AW8182000
Rear bracket assembly
Loading…

↗
19
6AW8182600
Bolt
Loading…

↗
20
6AW8184600
Screw
Loading…

↗
21
6AW8194100
Starter relay assembly
Loading…

↗
22
9701308045
Bolt
Loading…

↗
23
9290308600
Washer, plain (663)
Loading…

↗
24
9017908003
Nut
Loading…

↗
