FT25BET (2002)
STARTING MOTOR

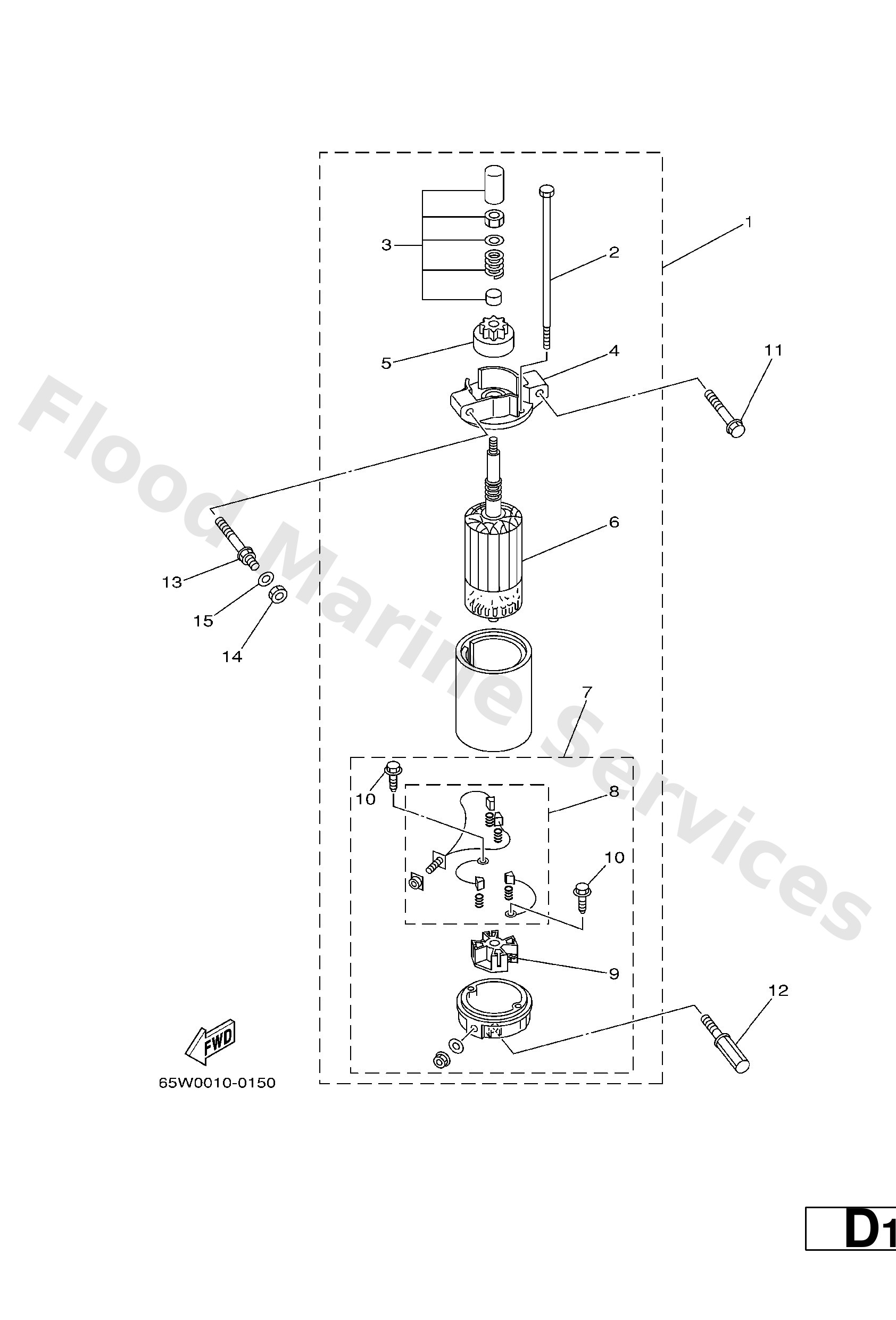

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
65W8180001
Starting motor assembly
Loading…
↗
2
65W--81826--00
Bolt
Loading…
↗
3
65W--81857--01
Retainer
Loading…
↗
4
65W--81830--00
Front Bracket assembly
Loading…
↗
5
65W--81807--00
Gear assembly, starting motor
Loading…
↗
6
65W--81850--01
Armature assembly
Loading…
↗
7
65W--81820--00
Rear bracket assembly
Loading…
↗
8
65W--81801--00
Brush set
Loading…
↗
9
65W--81840--00
Brush holder assembly
Loading…
↗
10
65W--8182S--00
Screw
Loading…
↗
11
90119--08M39
Bolt, with washer
Loading…
↗
12
90109--08M77
Bolt
Loading…
↗
13
90109--08M78
Bolt
Loading…
↗
14
95380--08700
Nut(661)
Loading…
↗
15
92990--08600
Washer, plain (663)
Loading…
↗
