Yamaha Outboard Parts - STARTING MOTOR - FT25BET (2003) | Flood Marine

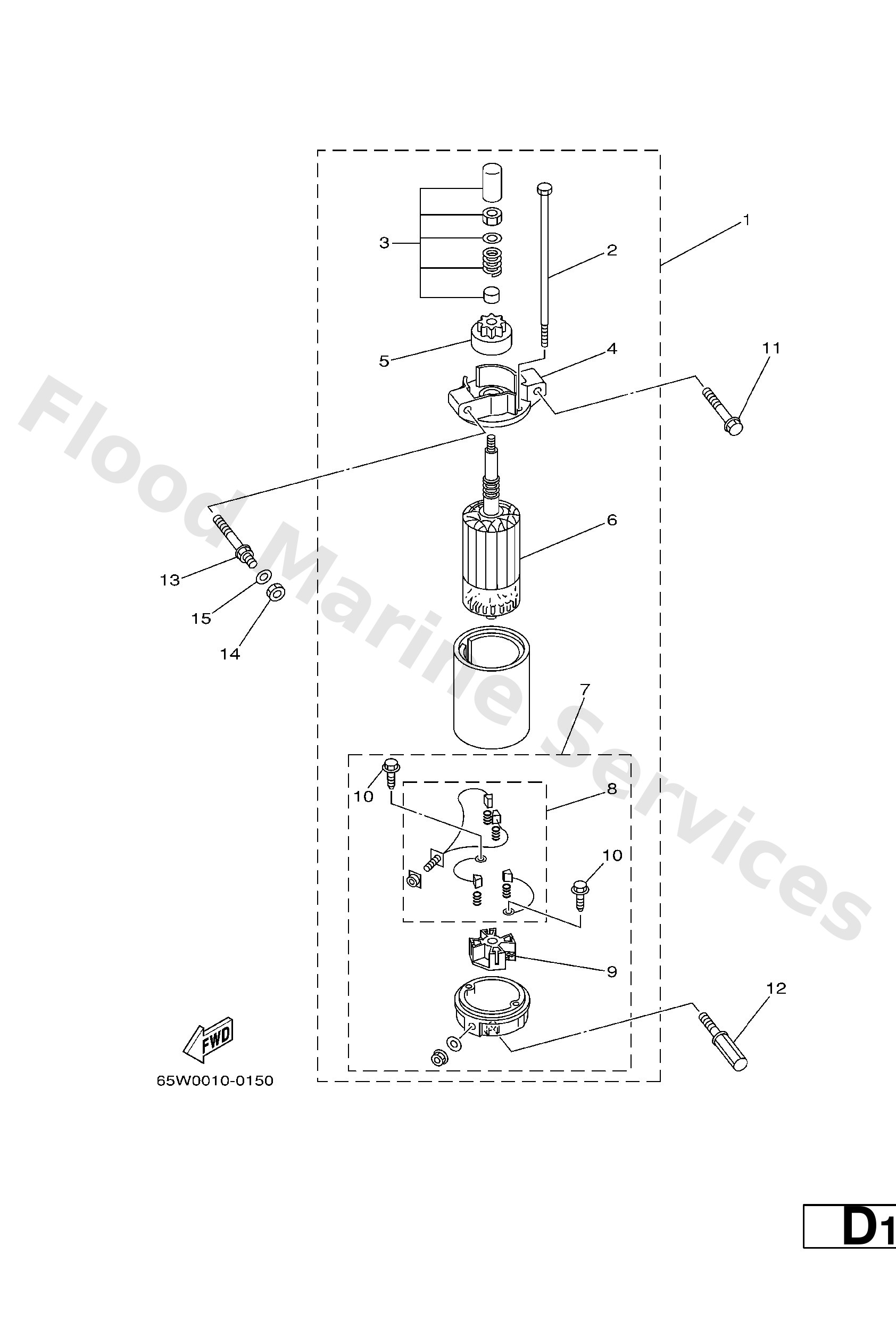

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
65W−81800−01
Starting motor assembly
Loading…

↗
2
65W−81826−00
Bolt
Loading…

↗
3
65W−81857−01
Retainer
Loading…

↗
4
65W−81830−00
16 −
Loading…

↗
5
65W−81807−00
Gear assembly, starting motor
Loading…

↗
6
65W−81850−01
Armature assembly
Loading…

↗
7
65W−81820−00
Rear bracket assembly
Loading…

↗
8
65W−81801−00
Brush set
Loading…

↗
9
65W−81840−00
Brush holder assembly
Loading…

↗
10
65W−8182S−00
Screw
Loading…

↗
11
90119−08M39
Bolt, with washer
Loading…

↗
12
90109−08M77
Bolt
Loading…

↗
13
90109−08M78
Bolt
Loading…

↗
14
95380−08700
Nut(661)
Loading…

↗
15
92990−08600
Washer, plain (663)
Loading…

↗
