Yamaha Outboard Parts - STARTING MOTOR - FT25BET (2005) | Flood Marine

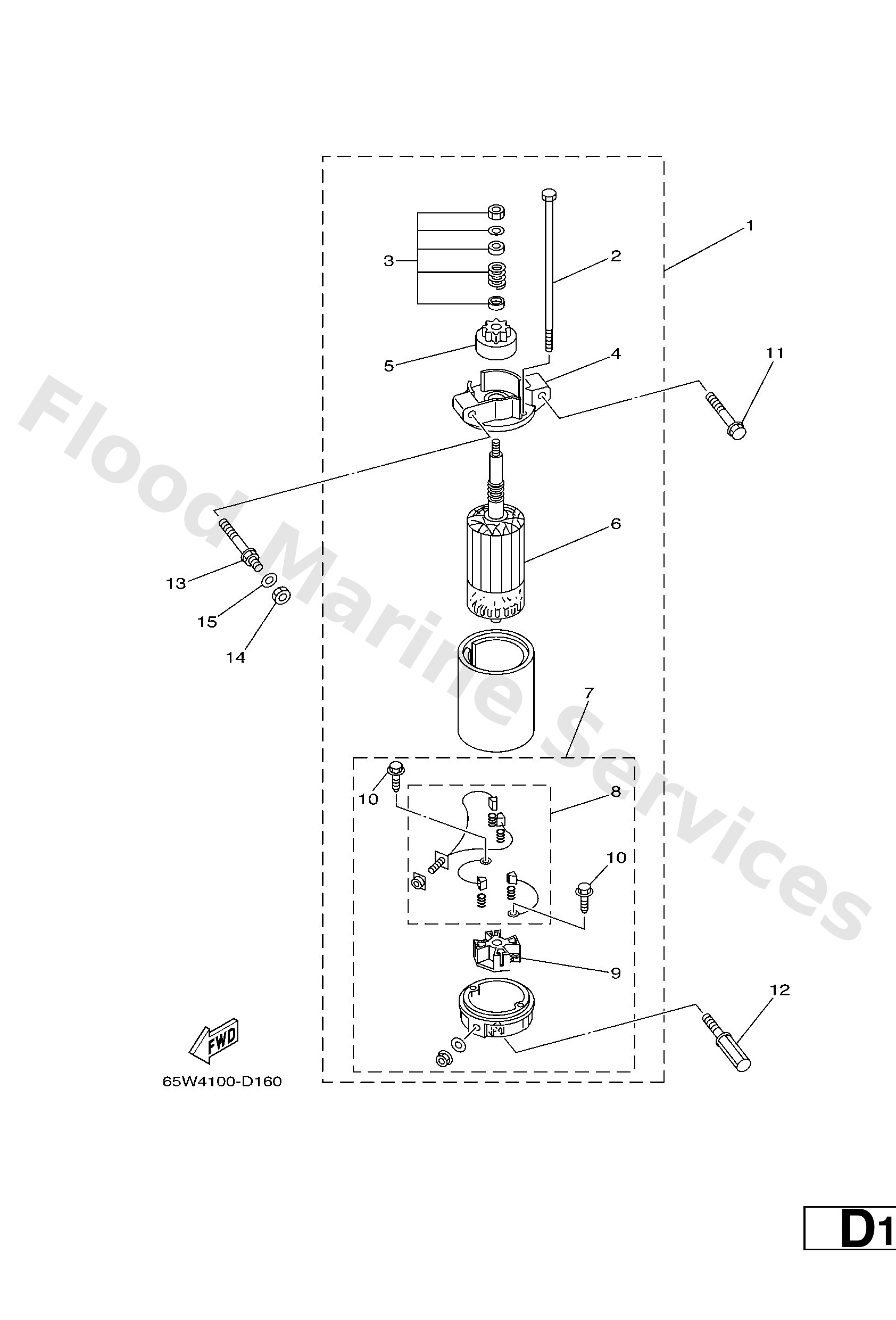

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
65W8180002
Starting motor assembly
Loading…

↗
2
65W8182600
Bolt
Loading…

↗
3
65W8185702
Pinion stopper set
Loading…

↗
4
65W8183000
-
Loading…

↗
5
65W8180700
Gear assembly, starting motor
Loading…

↗
6
65W8185002
Armature assembly
Loading…

↗
7
65W8182000
Rear bracket assembly
Loading…

↗
8
65W8180100
Brush set
Loading…

↗
9
65W8184000
Brush holder assembly
Loading…

↗
10
65W8182S00
Screw
Loading…

↗
11
9011908M39
Bolt, with washer
Loading…

↗
12
9010908M77
Bolt
Loading…

↗
13
9010908M78
Bolt
Loading…

↗
14
9538008700
Nut(661)
Loading…

↗
15
9299008600
Washer, plain (663)
Loading…

↗
