Yamaha Outboard Parts - STARTING MOTOR - FT50CET (2003) | Flood Marine

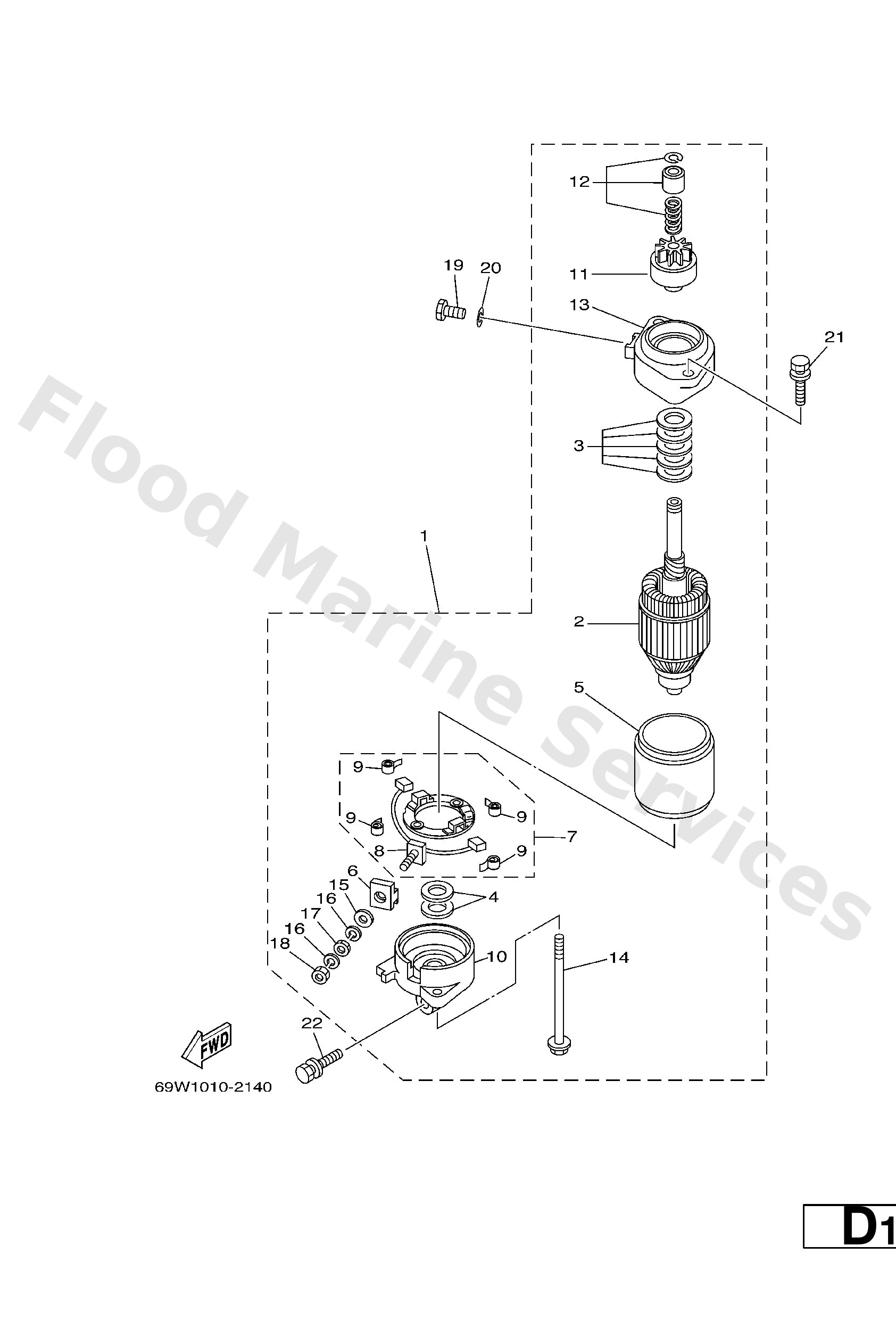

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
69W−81800−00
Starting motor assembly
Loading…

↗
2
6N7−81850−10
Armature assembly
Loading…

↗
3
61A−81809−00
Washer kit
Loading…

↗
4
61A−81824−00
Washer 2
Loading…

↗
5
6N7−81810−00
Stator assembly
Loading…

↗
6
6K7−8182G−10
Bush, terminal
Loading…

↗
7
6N7−81840−00
Brush holder assembly
Loading…

↗
8
6N7−81801−00
Brush set
Loading…

↗
9
6N7−81813−00
Spring, brush
Loading…

↗
10
6N7−81820−00
Rear bracket assembly
Loading…

↗
11
69W−81807−00
Gear assembly, starting motor
Loading…

↗
12
6N7−81857−00
Pinion stopper set
Loading…

↗
13
6N7−81830−00
Front bracket assembly
Loading…

↗
14
6K7−81826−10
Bolt
Loading…

↗
15
6E5−8182E−10
Washer, spring
Loading…

↗
16
6E5−8182F−10
Washer,plain
Loading…

↗
17
6E5−8182A−10
Nut
Loading…

↗
18
6E5−8182K−10
Nut
Loading…

↗
19
97095−08016
Bolt, hexagon deep recess
Loading…

↗
20
92995−08600
Washer, plain (663)
Loading…

↗
21
90119−08M76
Bolt, with washer(6e5)
Loading…

↗
22
90119−08M77
Bolt, with washer(6e5)
Loading…

↗
