Yamaha Outboard Parts - STARTING MOTOR - FT9.9DMH (2003) | Flood Marine

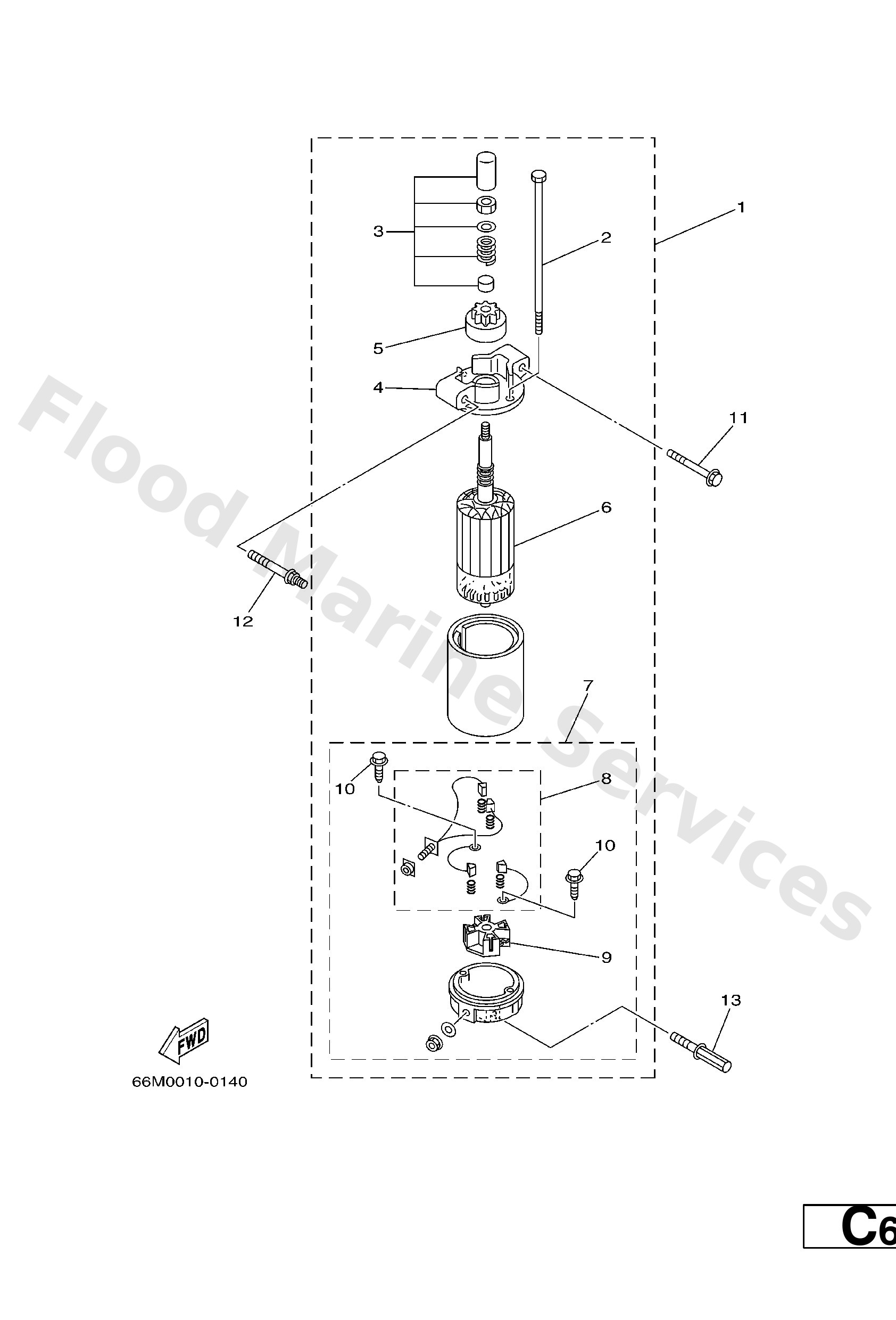

Diagram: STARTING MOTOR

Diagram

Parts List

Reference

Description

Price

1

66M−81800−01

Starting motor assembly

Loading…

2

65W−81826−00

Loading…

3

65W−81857−01

Loading…

4

66M−81830−00

Front bracket assembly

Loading…

5

65W−81807−00

Gear assembly, starting motor

Loading…

6

65W−81850−01

Armature assembly

Loading…

7

66M−81820−00

Rear bracket assembly

Loading…

8

65W−81801−00

Loading…

9

65W−81840−00

Brush holder assembly

Loading…

10

65W−8182S−00

Loading…

11

Bolt, with washer

Loading…

12

Loading…

13

Loading…
