L225FET0 (2003)
STARTING MOTOR

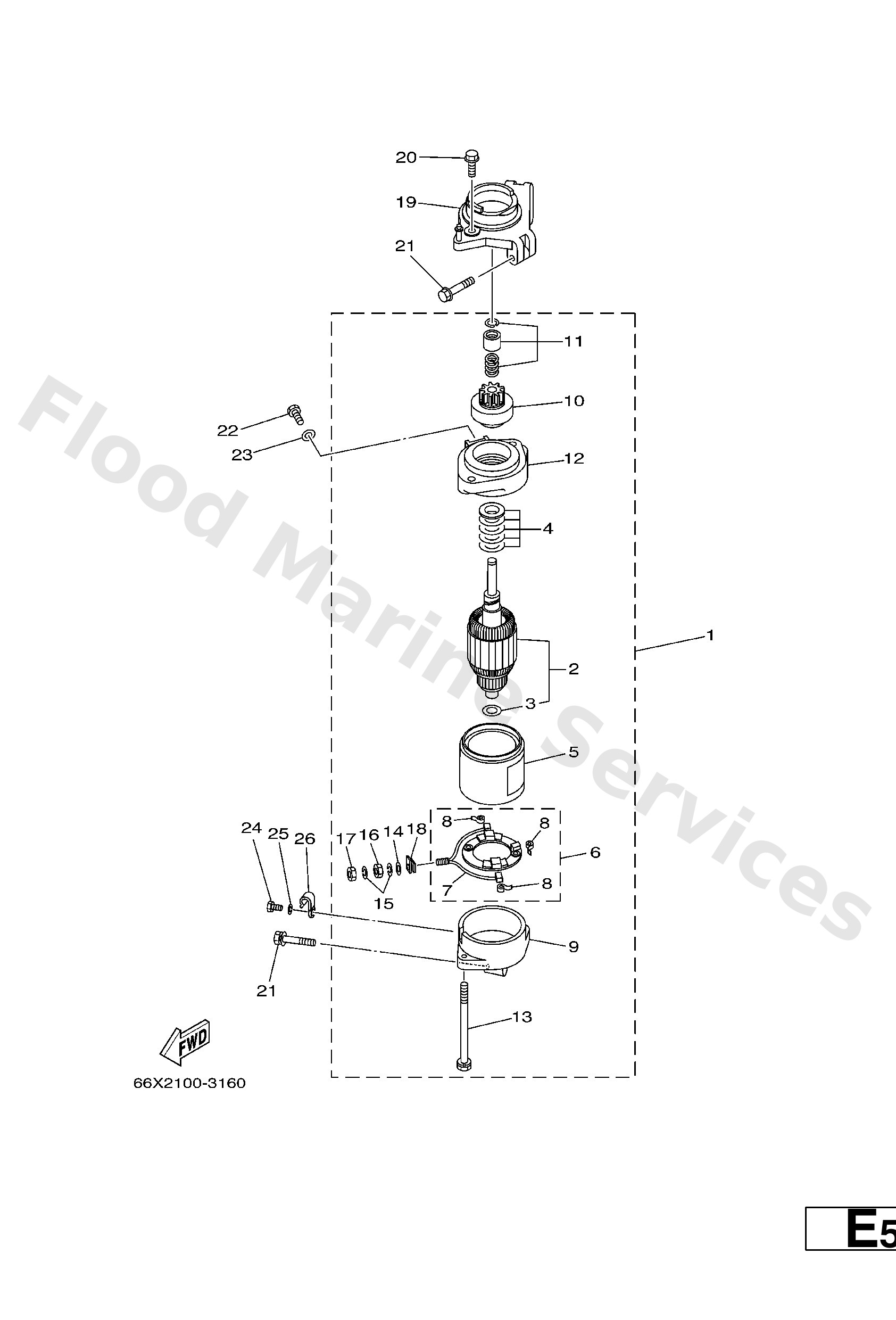

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
61A−81800−01
Starting motor assembly
Loading…
↗
2
61A−81850−01
Armature assembly
Loading…
↗
3
61A−81824−00
Washer 2
Loading…
↗
4
61A−81809−00
Washer kit
Loading…
↗
5
6K7−81810−00
Stator assembly
Loading…
↗
6
61A−81840−00
Brush holder assembly
Loading…
↗
7
6K7−81801−10
Brush Set
Loading…
↗
8
6E5−81813−10
Spring, Brush
Loading…
↗
9
61A−81820−00
Rear Bracket assembly
Loading…
↗
10
61A−81807−00
Gear assembly, Starting Motor
Loading…
↗
11
61H−81857−00
Retainer
Loading…
↗
12
61A−81830−00
Front Bracket assembly
Loading…
↗
13
6K7−81826−10
Bolt
Loading…
↗
14
6E5−8182E−10
Washer, spring
Loading…
↗
15
6E5−8182F−10
Washer,plain
Loading…
↗
16
6E5−8182A−10
Nut
Loading…
↗
17
6E5−8182K−10
Nut
Loading…
↗
18
6K7−8182G−10
Bush, terminal
Loading…
↗
19
61A−81822−00−94
Bracket, starting motor
Loading…
↗
20
90119−08M76
Bolt, with washer(6e5)
Loading…
↗
21
90119−08M77
Bolt, with washer(6e5)
Loading…
↗
22
97095−08016
Bolt, hexagon deep recess
Loading…
↗
23
92995−08600
Washer, plain (663)
Loading…
↗
24
97095−06012
Bolt(gh1)
Loading…
↗
25
92995−06600
Washer, plain (646)
Loading…
↗
26
90465−06M86
Clamp
Loading…
↗
