Yamaha Outboard Parts - STARTING MOTOR - LZ150PETO (2007) | Flood Marine

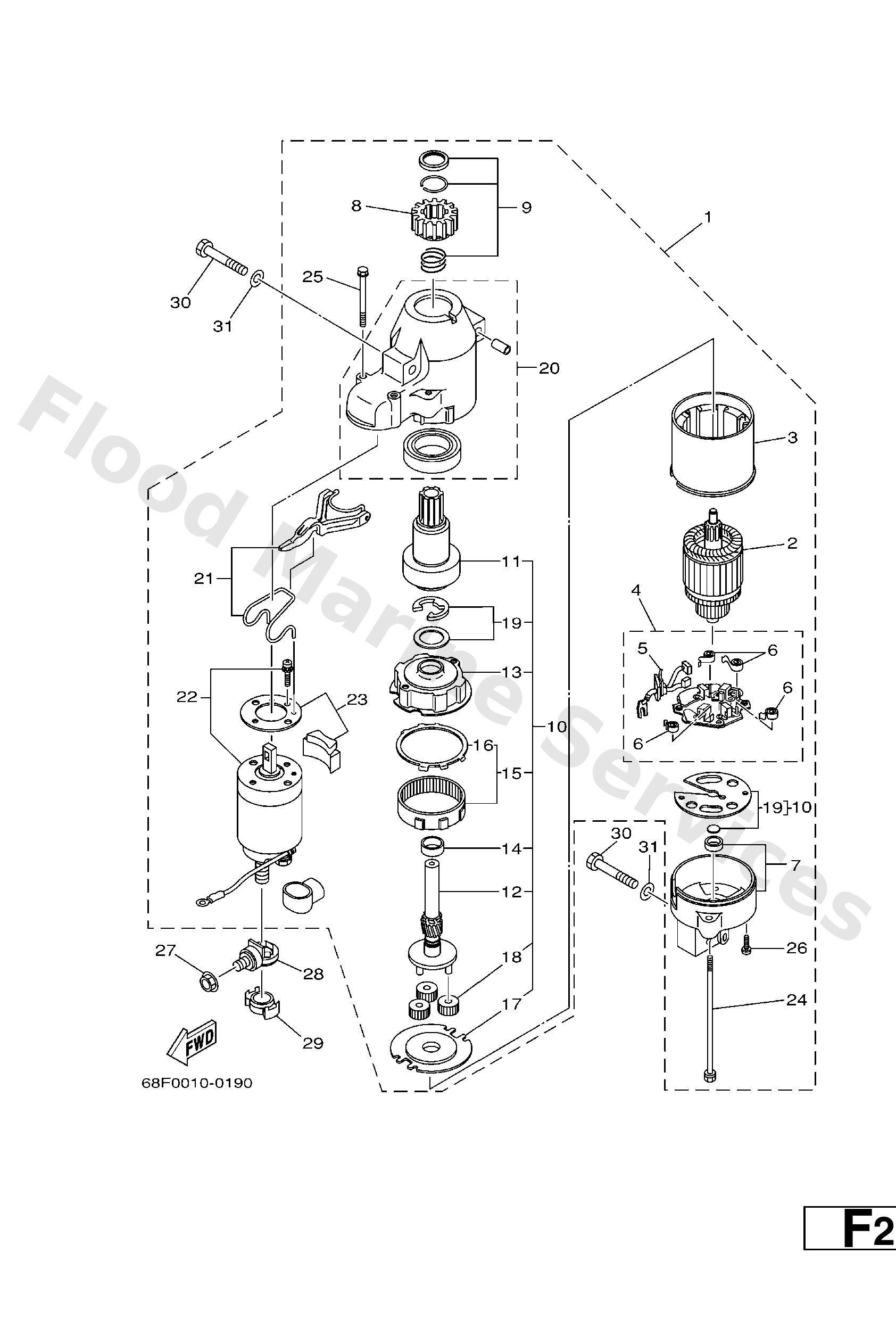

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
68F8180001
Starting motor assembly
Loading…

↗
2
67F8185000
Armature assembly
Loading…

↗
3
67F8181000
Stator assembly
Loading…

↗
4
68F8184000
Brush holder assembly
Loading…

↗
5
67F8180100
Brush set
Loading…

↗
6
67F8181300
Spring, brush
Loading…

↗
7
68F8182000
Rear bracket assembly
Loading…

↗
8
67F8180800
Pinion assembly
Loading…

↗
9
67F8185700
Pinion stopper set
Loading…

↗
10
67F8180700
Gear assembly, starting motor
Loading…

↗
11
67F8183200
Clutch, over run
Loading…

↗
12
67F8183600
Shaft, pinion
Loading…

↗
13
67F8182100
Bracket, center 1
Loading…

↗
14
67F8184100
Bearing
Loading…

↗
15
67F8189100
Gear, ring
Loading…

↗
16
67F8183R00
Gasket
Loading…

↗
17
67F8183000
Bracket, center 2
Loading…

↗
18
60V8183T00
Gear, idler
Loading…

↗
19
67F8180900
Washer kit
Loading…

↗
20
67F8184200
Cover
Loading…

↗
21
67F8183900
Lever assembly
Loading…

↗
22
68F8194101
Starter Relay assembly
Loading…

↗
23
67F8186900
Cover, dust
Loading…

↗
24
6K78182610
Bolt
Loading…

↗
25
67F8182800
Bolt 2
Loading…

↗
26
67F8184600
Screw
Loading…

↗
27
9017908003
Nut
Loading…

↗
28
60V8192500
Terminal
Loading…

↗
29
68F8258200
Cover, wire harness
Loading…

↗
30
9701308045
Bolt
Loading…

↗
31
9290308600
Washer, plain (663)
Loading…

↗
