Z200NETO (2002)
STARTING MOTOR

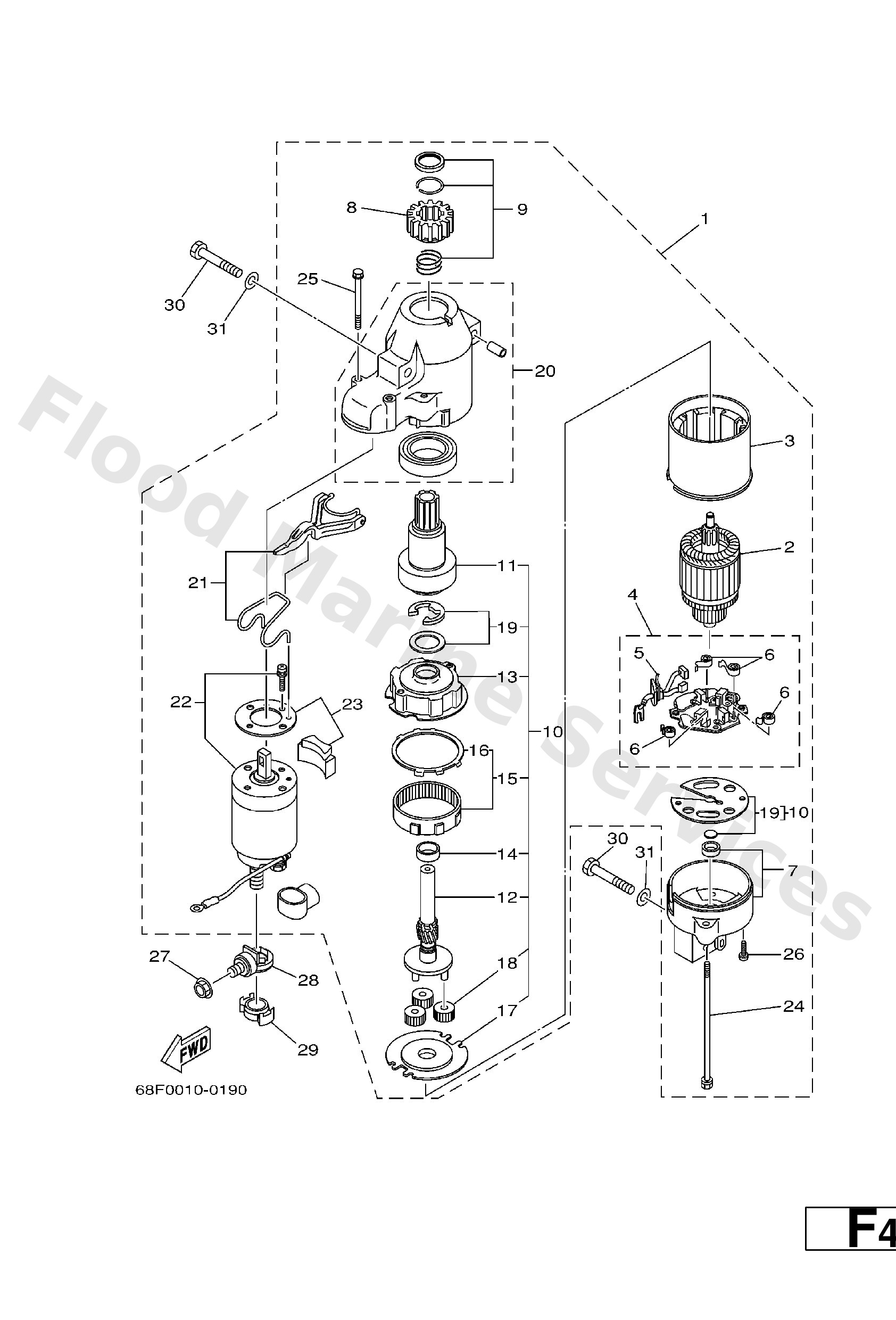

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
68F8180001
Starting motor assembly
Loading…
↗
2
67F--81850--00
Armature assembly
Loading…
↗
3
67F--81810--00
Stator assembly
Loading…
↗
4
68F--81840--00
Brush holder assembly
Loading…
↗
5
67F--81801--00
Brush set
Loading…
↗
6
67F--81813--00
Spring, brush
Loading…
↗
7
68F--81820--00
Rear bracket assembly
Loading…
↗
8
67F--81808--00
Pinion assembly
Loading…
↗
9
67F--81857--00
Pinion stopper set
Loading…
↗
10
67F--81807--00
Gear assembly, starting motor
Loading…
↗
11
67F--81832--00
Clutch, over run
Loading…
↗
12
67F--81836--00
Shaft, pinion
Loading…
↗
13
67F--81821--00
Bracket, center 1
Loading…
↗
14
67F--81841--00
Bearing
Loading…
↗
15
67F--81891--00
Gear, ring
Loading…
↗
16
67F--8183R--00
Gasket
Loading…
↗
17
67F--81830--00
Bracket, center 2
Loading…
↗
18
67F8183T00
-
Loading…
↗
19
67F--81809--00
Washer kit
Loading…
↗
20
67F--81842--00
Cover
Loading…
↗
21
67F--81839--00
Lever assembly
Loading…
↗
22
68F8194101
Starter Relay assembly
Loading…
↗
23
67F--81869--00
Cover, dust
Loading…
↗
24
6K7--81826--10
Bolt
Loading…
↗
25
67F--81828--00
Bolt 2
Loading…
↗
26
67F--81846--00
Screw
Loading…
↗
27
90179--08003
Nut
Loading…
↗
28
68F8192500
Terminal
Loading…
↗
29
68F--82582--00
Cover, wire harness
Loading…
↗
30
97013--08045
Bolt
Loading…
↗
31
92903--08600
Washer, plain (663)
Loading…
↗
