Yamaha Outboard Parts - STEERING - 20DMHO (2002) | Flood Marine

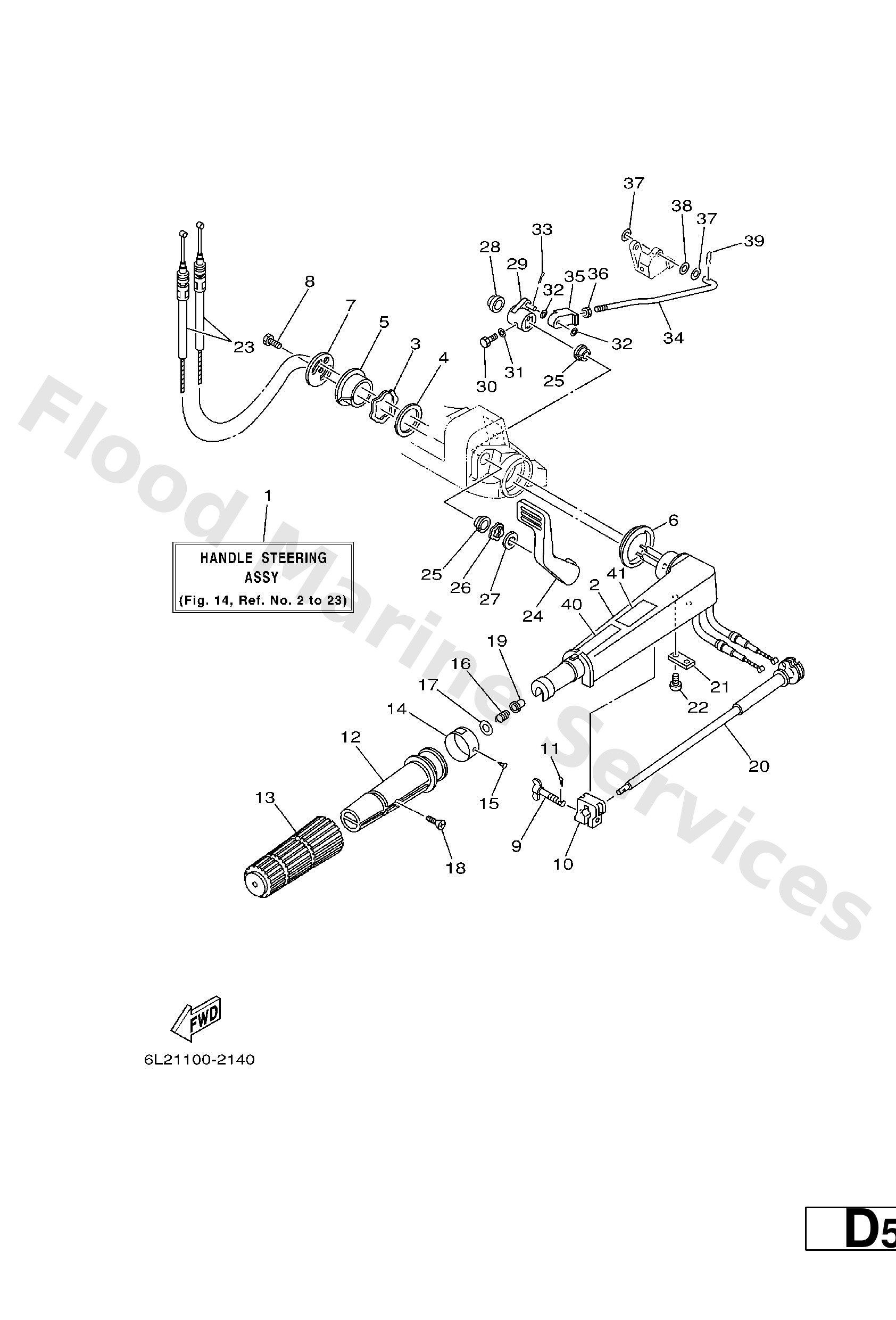

Diagram: STEERING

Diagram

Parts List

Reference
Description
Price


3
90206−36M21
Washer, wave(63v)
Loading…

↗
4
90202−36M55
Washer, plate(63v)
Loading…

↗
5
90386−33M96
Bush(63v)
Loading…

↗
6
90386−34M97
Bush(63v)
Loading…

↗
7
6G1−42131−01
Cover, handle steering
Loading…

↗
8
97095−06020
Bolt(7u8)
Loading…

↗
9
6G1−42125−01
Bolt, friction adjusting
Loading…

↗
10
6G1−42126−00
Piece, friction
Loading…

↗
11
91490−16010
Pin, cotter
Loading…

↗
12
664−42119−00
Grip, steering handle
Loading…

↗
13
6F6−42177−A0
Rubber, handle
Loading…

↗
14
6L2−42137−00
Indicator, throttle
Loading…

↗
15
90269−02M09
Rivet(6l5)
Loading…

↗
16
90501−23215
Spring (655)
Loading…

↗
17
92903−10600
Washer, plate
Loading…

↗
18
90149−05M13
Screw, countersunk
Loading…

↗
19
90386−08032
Bushing (650)
Loading…

↗
20
6G1−42138−01
Lever, throttle
Loading…

↗
21
6E0−42159−02
Stay
Loading…

↗
22
97885−05012
Screw,pan head (646)
Loading…

↗
23
6L2−26301−00
Throttle cable assembly
Loading…

↗
25
90386−15M73
Bush(6l2)
Loading…

↗
26
90206−15M18
Washer, wave(6l2)
Loading…

↗
27
90202−15M37
Washer, plate(6l2)
Loading…

↗
28
90386−12M72
Bush(6l2)
Loading…

↗
29
6L2−44125−00−94
Lever, shift rod
Loading…

↗
31
92995−06600
Washer, plain (646)
Loading…

↗
32
90202−06009
Washer plate 626427510000
Loading…

↗
33
91490−20010
Pin, cotter
Loading…

↗
34
6L2−44124−00
Link, shift rod
Loading…

↗
35
6L2−26363−00
End, cable
Loading…

↗
36
95380−06700
Nut
Loading…

↗
37
90202−05088
Washer, plate (666)
Loading…

↗
38
90202−05M38
Washer, plate(6l2)
Loading…

↗
39
90468−05M03
Clip(6j8)
Loading…

↗
40
6E0−83627−41
Label, caution 7
Loading…

↗
41
6E0−83627−51
Label, Caution 7
Loading…

↗
