20DMHO (2011)
STEERING

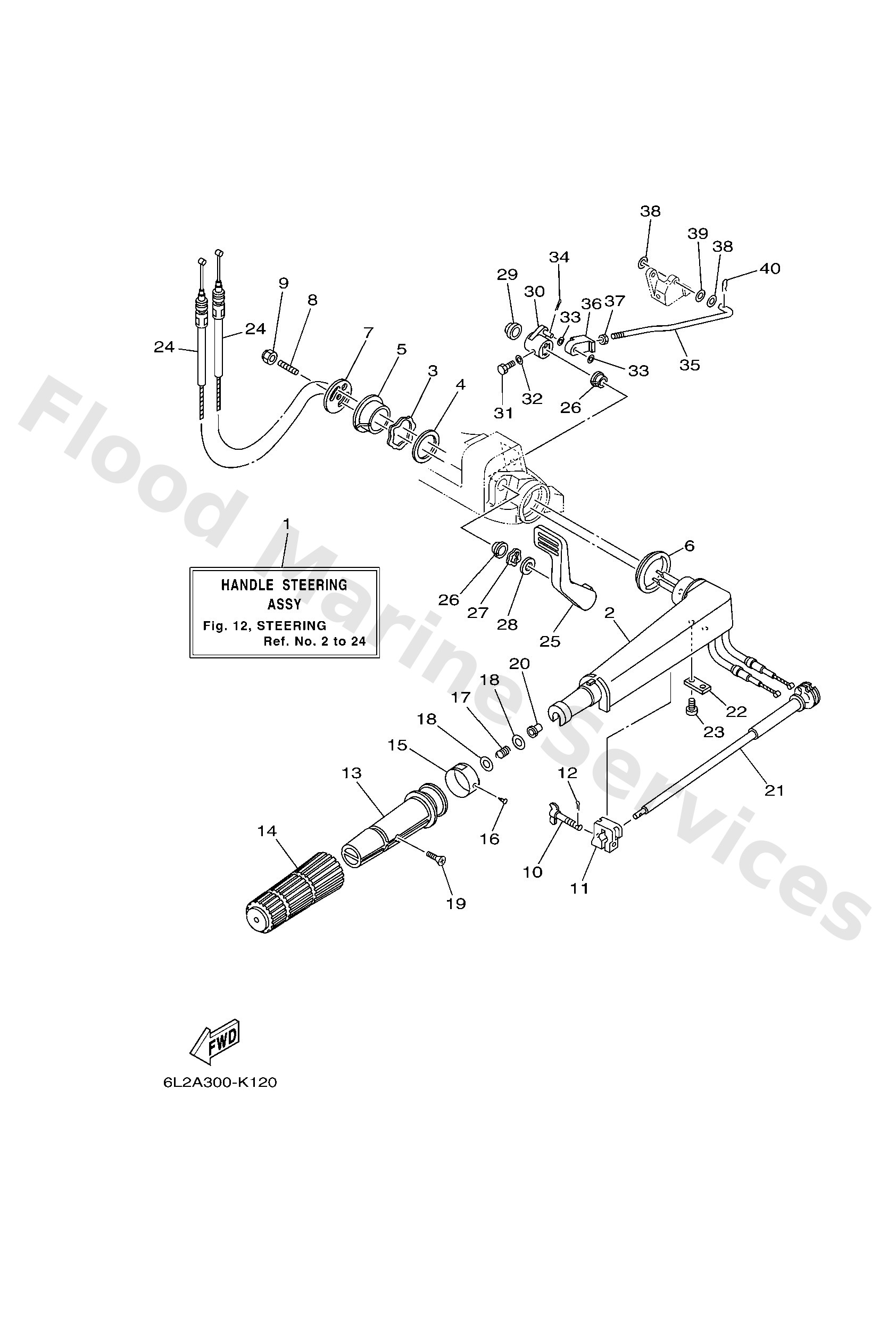

Diagram: STEERING
Parts List
Reference
Description
Price
1
6L2W0084114D
Handle steering assembly
Loading…
↗
2
6G142111124D
Handle, steering
Loading…
↗
3
9020636M21
Washer, wave(63v)
Loading…
↗
4
9020236M55
Washer, plate(63v)
Loading…
↗
5
9038633M96
Bush(63v)
Loading…
↗
6
9038634M97
Bush(63v)
Loading…
↗
7
6G14213102
Cover, handle steering
Loading…
↗
8
9011608016
Bolt, stud
Loading…
↗
9
9018508057
Nut, nylon (6j8)
Loading…
↗
10
6G14212501
Bolt, friction adjusting
Loading…
↗
11
6G14212600
Piece, friction
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
6644211900
Grip, steering handle
Loading…
↗
14
6F642177A0
Rubber, handle
Loading…
↗
15
6L24213700
Indicator, throttle
Loading…
↗
16
9026902M09
Rivet(6l5)
Loading…
↗
17
9050123215
Spring (655)
Loading…
↗
18
9020110M02
Washer, plate(6g9)
Loading…
↗
19
9015205011
Screw, countersunk
Loading…
↗
20
9038608032
Bushing (650)
Loading…
↗
21
6G14213801
Lever, throttle
Loading…
↗
22
6E04215902
Stay
Loading…
↗
23
9788505012
Screw,pan head (646)
Loading…
↗
24
6L22630101
Throttle cable assembly
Loading…
↗
25
6L2441110194
Handle, gear shift
Loading…
↗
26
9038615M73
Bush(6l2)
Loading…
↗
27
9020615M18
Washer, wave(6l2)
Loading…
↗
28
9020215M37
Washer, plate(6l2)
Loading…
↗
29
9038612M72
Bush(6l2)
Loading…
↗
30
6L2441250094
Lever, shift rod
Loading…
↗
31
9709506020
Bolt(7u8)
Loading…
↗
32
9299506600
Washer, plain (646)
Loading…
↗
33
9020206009
Washer plate 626427510000
Loading…
↗
34
9149020010
Pin, cotter
Loading…
↗
35
6L24412400
Link, shift rod
Loading…
↗
36
6L22636300
End, cable
Loading…
↗
37
9538006700
Nut
Loading…
↗
38
9020205088
Washer, plate (666)
Loading…
↗
39
9020205M38
Washer, plate(6l2)
Loading…
↗
40
9046805M03
Clip(6j8)
Loading…
↗
