30DMHO (2013)
STEERING

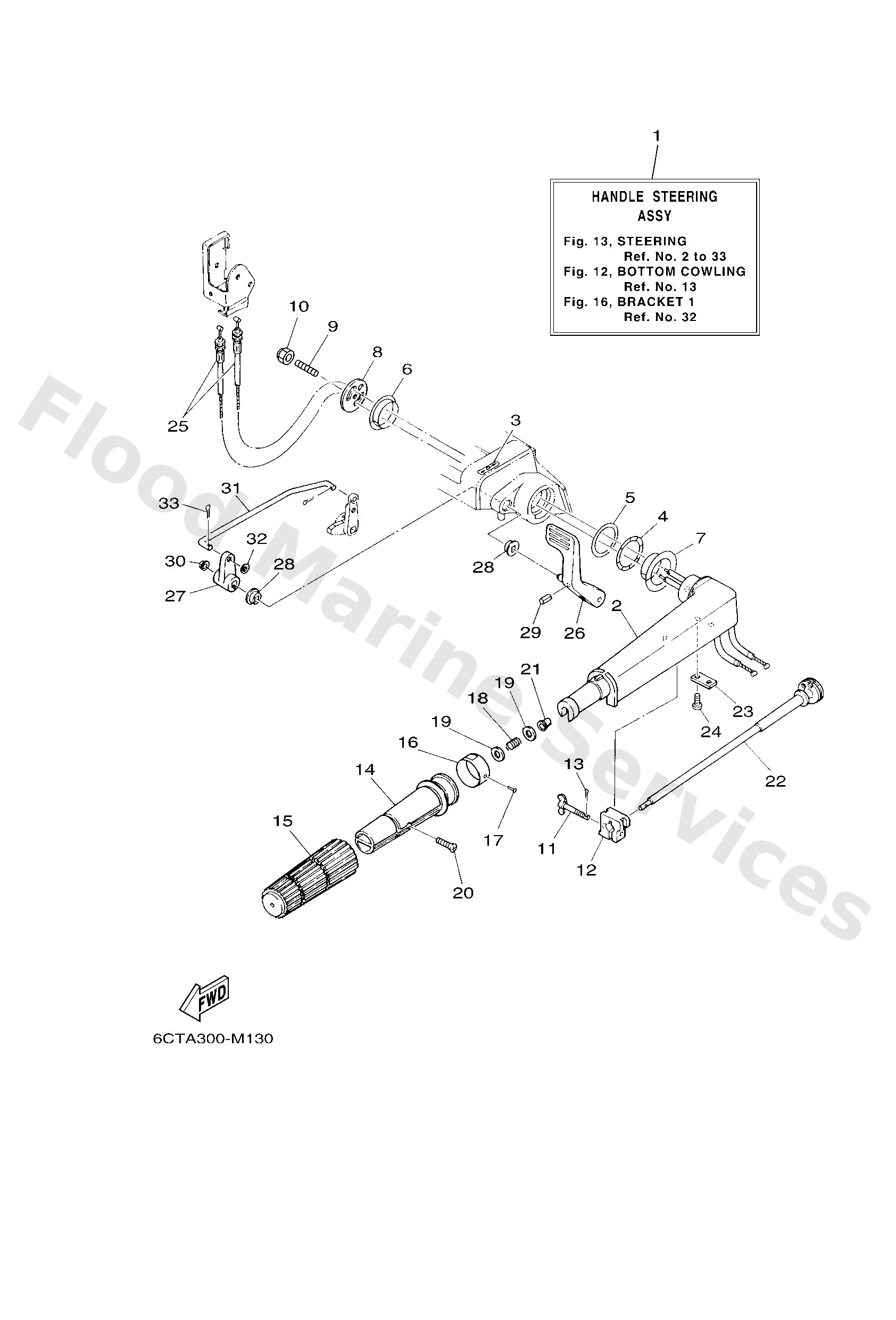

Diagram: STEERING
Parts List
Reference
Description
Price
1
6J8W0084114D
Handle steering assembly
Loading…
↗
2
6G142111124D
Handle, steering
Loading…
↗
3
6E04419111
Indicator, shift
Loading…
↗
4
9020636M21
Washer, wave(63v)
Loading…
↗
5
9020236M55
Washer, plate(63v)
Loading…
↗
6
9038633M96
Bush(63v)
Loading…
↗
7
9038634M97
Bush(63v)
Loading…
↗
8
6G14213102
Cover, handle steering
Loading…
↗
9
9011608016
Bolt, stud
Loading…
↗
10
9018508057
Nut, nylon (6j8)
Loading…
↗
11
6G14212501
Bolt, friction adjusting
Loading…
↗
12
6G14212600
Piece, friction
Loading…
↗
13
9149016010
Pin, cotter
Loading…
↗
14
6644211900
Grip, steering handle
Loading…
↗
15
6G14217700
Rubber, handle
Loading…
↗
16
6J84213700
Indicator, throttle
Loading…
↗
17
9026902M09
Rivet(6l5)
Loading…
↗
18
9050123215
Spring (655)
Loading…
↗
19
9020110M02
Washer, plate(6g9)
Loading…
↗
20
9015205011
Screw, countersunk
Loading…
↗
21
9038608032
Bushing (650)
Loading…
↗
22
6G14213801
Lever, throttle
Loading…
↗
23
6E04215902
Stay
Loading…
↗
24
9788505012
Screw,pan head (646)
Loading…
↗
25
6J82630100
Throttle cable assembly
Loading…
↗
26
6J844111014D
Handle, gear shift
Loading…
↗
27
6J84412500
Lever, shift rod
Loading…
↗
28
6824413200
Bushing
Loading…
↗
29
9025403M04
Pin, spring (6h3)
Loading…
↗
30
9038606M12
Bushing (688)
Loading…
↗
31
6J84412400
Link, shift rod
Loading…
↗
32
9299006200
Ybs66-6 washer, plain
Loading…
↗
33
9149020012
Pin, cotter (648)
Loading…
↗
