30HW (2012)
STEERING

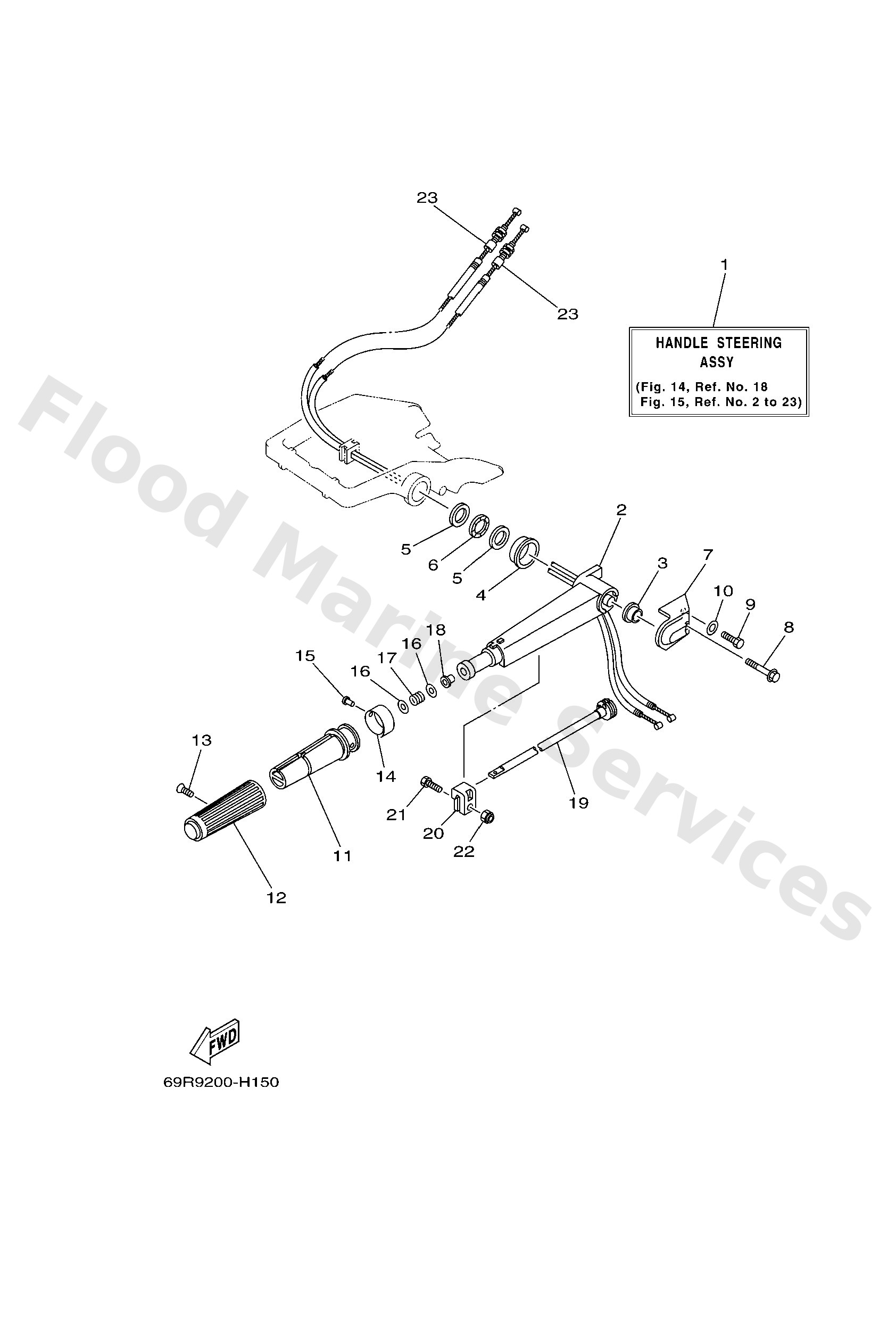

Diagram: STEERING
Parts List
Reference
Description
Price
1
69PW0084004D
Handle steering assembly
Loading…
↗
2
68942111014D
Handle, steering
Loading…
↗
3
9038713003
Collar
Loading…
↗
4
9038733001
Collar
Loading…
↗
5
9020128013
Washer, plate
Loading…
↗
6
9020628001
Washer, wave
Loading…
↗
7
69P42112004D
Handle, steering
Loading…
↗
8
9759506550
Bolt, hexagon w/w deep recess
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
6644211900
Grip, steering handle
Loading…
↗
12
6G14217700
Rubber, handle
Loading…
↗
13
9015205011
Screw, countersunk
Loading…
↗
14
6G14213710
Indicator, throttle
Loading…
↗
15
9026902M09
Rivet(6l5)
Loading…
↗
16
9020110M02
Washer, plate(6g9)
Loading…
↗
17
9050123215
Spring (655)
Loading…
↗
18
9038608032
Bushing (650)
Loading…
↗
19
6894213800
Lever, throttle
Loading…
↗
20
6564212601
Piece, friction
Loading…
↗
22
9018506062
Nut selflocking (656)
Loading…
↗
23
61N2631101
Cable, throttle 1
Loading…
↗
