40XMH (2008)
STEERING

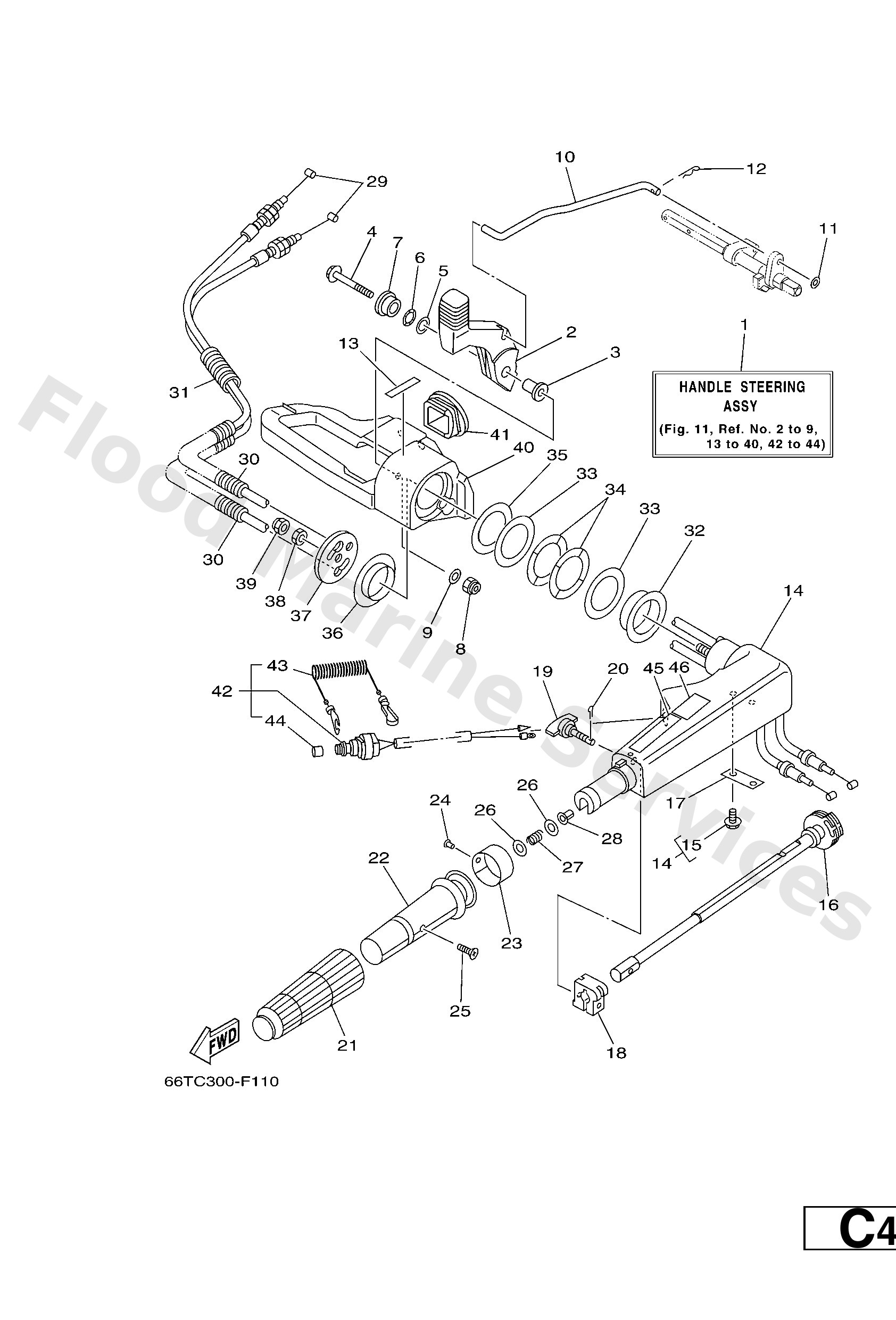

Diagram: STEERING
Parts List
Reference
Description
Price
1
66TW0084024D
Handle steering assembly
Loading…
↗
2
66T4411102
Handle, gear shift
Loading…
↗
3
9038706M86
Collar
Loading…
↗
4
9759506550
Bolt, hexagon w/w deep recess
Loading…
↗
5
9020112M07
Washer, plate
Loading…
↗
6
9020612052
Washer, wave (666)
Loading…
↗
7
66T4212300
Bolt, handle joint
Loading…
↗
8
9578006300
Nut, nylon (6g1)
Loading…
↗
9
9299506200
Ybs66-6 washer, plain
Loading…
↗
10
66T4412400
Link, shift rod
Loading…
↗
11
9299006200
Ybs66-6 washer, plain
Loading…
↗
12
9046818008
Clip 620436610000
Loading…
↗
13
6E04419111
Indicator, shift
Loading…
↗
14
65W42101014D
Handle, steering
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
65W4213800
Lever, throttle
Loading…
↗
17
65W4215900
Stay
Loading…
↗
18
6G14212600
Piece, friction
Loading…
↗
19
65W4212500
Bolt, friction adjusting
Loading…
↗
20
9149020010
Pin, cotter
Loading…
↗
21
6F642177A0
Rubber, handle
Loading…
↗
22
6644211900
Grip, steering handle
Loading…
↗
23
6G14213710
Indicator, throttle
Loading…
↗
24
9026902M09
Rivet(6l5)
Loading…
↗
25
9014905M13
Screw, countersunk
Loading…
↗
26
9020110M02
Washer, plate(6g9)
Loading…
↗
27
9050123215
Spring (655)
Loading…
↗
28
9038608032
Bushing (650)
Loading…
↗
29
66T2630100
Throttle cable assembly
Loading…
↗
30
9044610M87
Hose
Loading…
↗
31
9044610M86
Hose
Loading…
↗
32
9038640MA0
Bushing
Loading…
↗
33
9020143M00
Washer, plate
Loading…
↗
34
9020643M22
Washer, wave
Loading…
↗
35
9020243M57
Washer, plate
Loading…
↗
36
9038640M99
Bush
Loading…
↗
37
65W4213101
Cover, handle steering
Loading…
↗
38
9538010700
Nut (682)
Loading…
↗
39
9578010300
Nut, nylon (6e5)
Loading…
↗
40
65W42121014D
Bracket
Loading…
↗
41
66T4127300
Grommet
Loading…
↗
42
66T8257501
Engine stop switch assembly
Loading…
↗
43
6828255600
Lanyard, stop switch
Loading…
↗
44
6898257Y00
Cap
Loading…
↗
45
6E08362741
Label, caution 7
Loading…
↗
46
6E08362751
-
Loading…
↗
