40XWT (2003)
STEERING

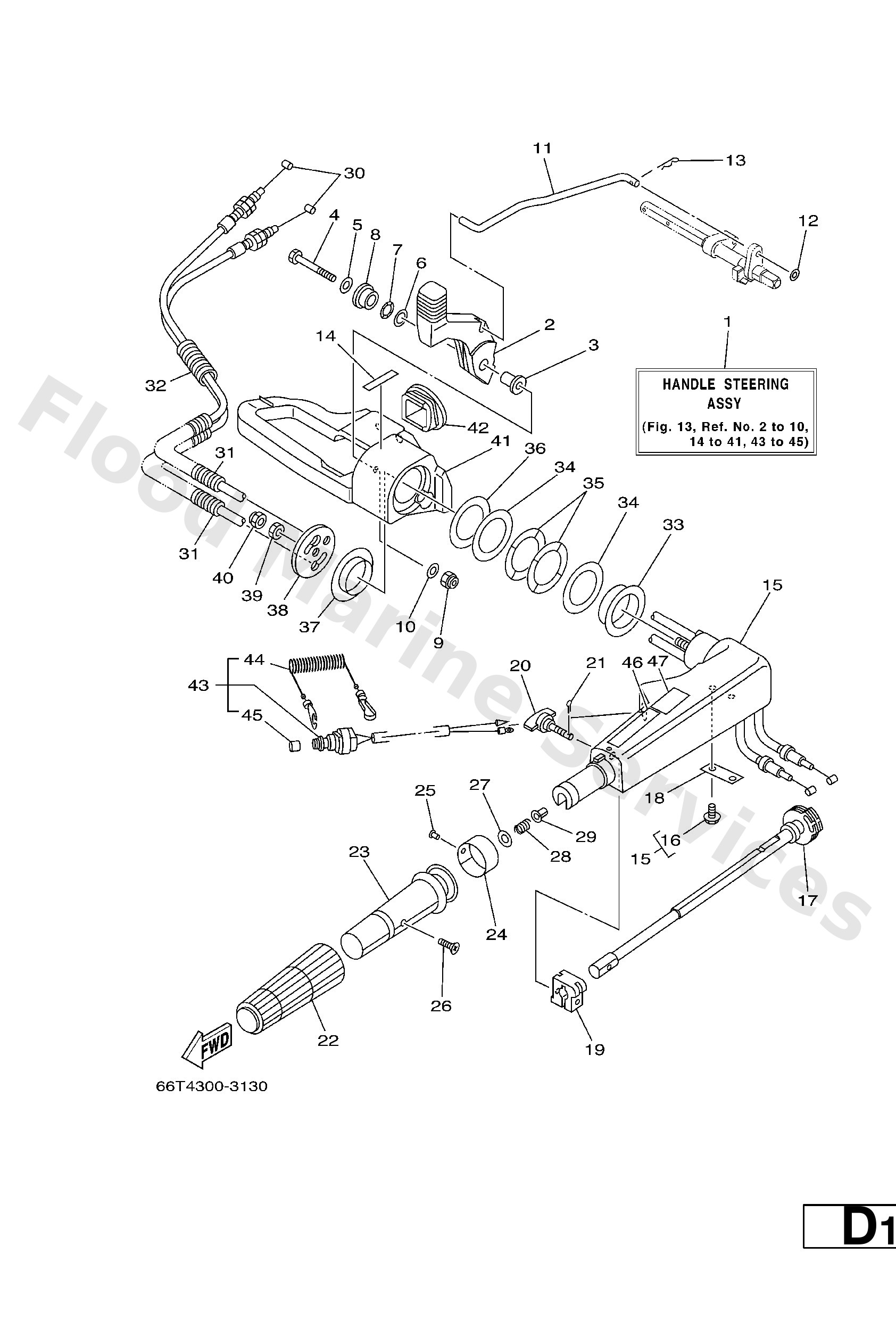

Diagram: STEERING
Parts List
Reference
Description
Price
2
66T−44111−02
Handle, gear shift
Loading…
↗
3
90387−06M86
Collar
Loading…
↗
4
97095−06050
Bolt(jf7)
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
90201−12M07
Washer, plate
Loading…
↗
7
90206−12052
Washer, wave (666)
Loading…
↗
8
66T−42123−00
Bolt, handle joint
Loading…
↗
9
95780−06300
Nut, nylon (6g1)
Loading…
↗
10
92995−06200
Ybs66-6 washer, plain
Loading…
↗
11
66T−44124−00
Link, shift rod
Loading…
↗
12
92990−06200
Ybs66-6 washer, plain
Loading…
↗
13
90468−18008
Clip 620436610000
Loading…
↗
14
6E0−44191−11
Indicator, shift
Loading…
↗
16
90109−06M86
Bolt
Loading…
↗
17
65W−42138−00
Lever, throttle
Loading…
↗
18
65W−42159−00
Stay
Loading…
↗
19
6G1−42126−00
Piece, friction
Loading…
↗
20
65W−42125−00
Bolt, friction adjusting
Loading…
↗
21
91490−20010
Pin, cotter
Loading…
↗
22
6F6−42177−A0
Rubber, handle
Loading…
↗
23
664−42119−00
Grip, steering handle
Loading…
↗
24
6G1−42137−10
Indicator, throttle
Loading…
↗
25
90269−02M09
Rivet(6l5)
Loading…
↗
26
90149−05M13
Screw, countersunk
Loading…
↗
27
92903−10600
Washer, plate
Loading…
↗
28
90501−23215
Spring (655)
Loading…
↗
29
90386−08032
Bushing (650)
Loading…
↗
30
66T−26301−00
Throttle cable assembly
Loading…
↗
31
90446−10M87
Hose
Loading…
↗
32
90446−10M86
Hose
Loading…
↗
33
90386−40MA0
Bushing
Loading…
↗
34
90201−43M00
Washer, plate
Loading…
↗
35
90206−43M22
Washer, wave
Loading…
↗
36
90202−43M57
Washer, plate
Loading…
↗
37
90386−40M99
Bush
Loading…
↗
38
65W−42131−01
Cover, handle steering
Loading…
↗
39
95380−10700
Nut (682)
Loading…
↗
40
95780−10300
Nut, nylon (6e5)
Loading…
↗
42
66T−41273−00
Grommet
Loading…
↗
43
66T−82575−01
Engine stop switch assembly
Loading…
↗
44
682−82556−00
Lanyard, stop switch
Loading…
↗
45
689−8257Y−00
Cap
Loading…
↗
46
6E0−83627−41
Label, caution 7
Loading…
↗
47
6E0−83627−51
Label, Caution 7
Loading…
↗
