6CMH (2003)
STEERING

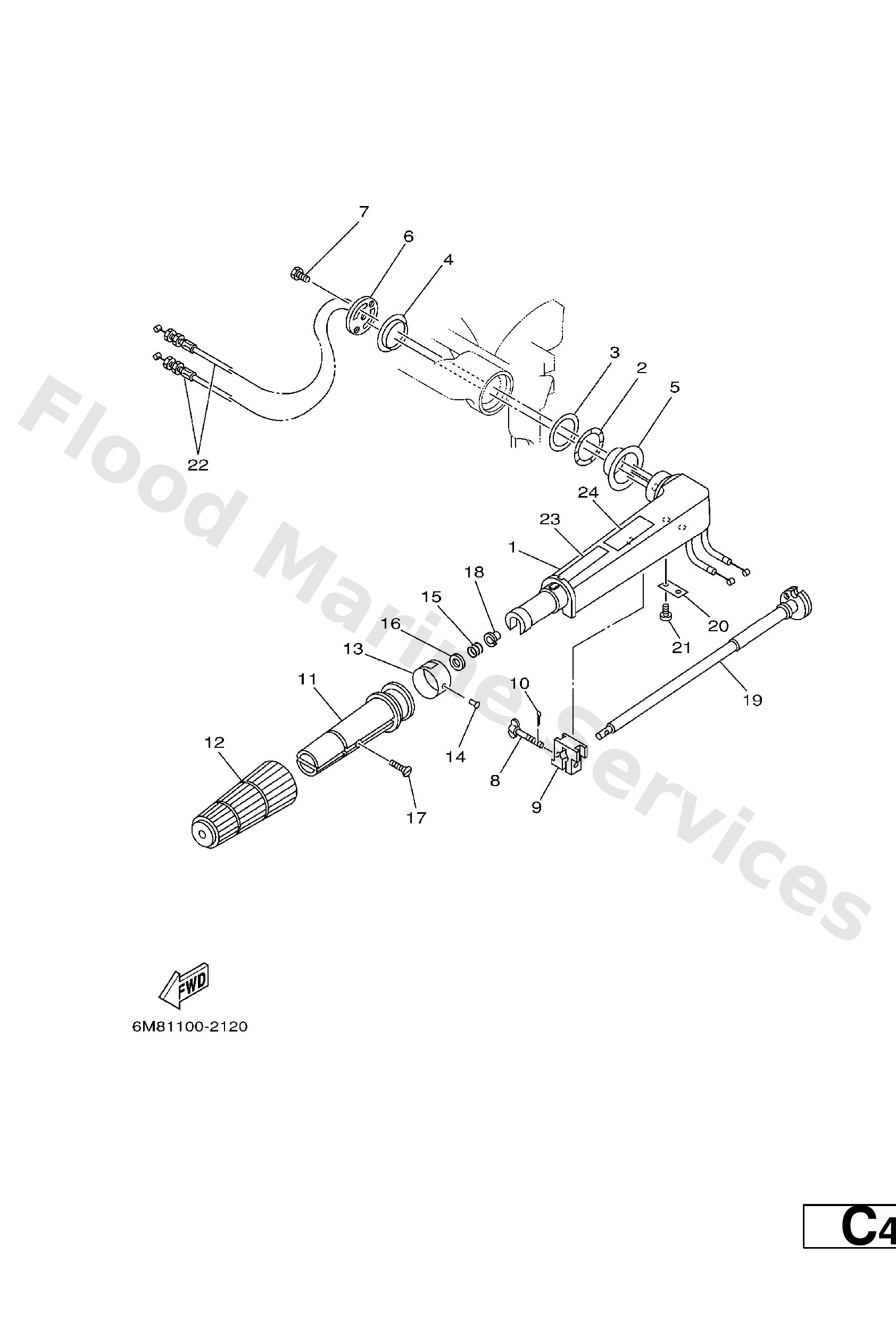

Diagram: STEERING
Parts List
Reference
Description
Price
2
90206−36M21
Washer, wave(63v)
Loading…
↗
3
90202−36M55
Washer, plate(63v)
Loading…
↗
4
90386−33M96
Bush(63v)
Loading…
↗
5
90386−34M97
Bush(63v)
Loading…
↗
6
6G1−42131−01
Cover, handle steering
Loading…
↗
7
97095−06020
Bolt(7u8)
Loading…
↗
8
6G1−42125−01
Bolt, friction adjusting
Loading…
↗
9
6N0−G2126−00
Piece, friction
Loading…
↗
10
91490−16010
Pin, cotter
Loading…
↗
11
6M4−G2119−00
Grip, steering handle
Loading…
↗
12
6N0−G2177−00
Rubber, handle
Loading…
↗
13
6G1−42137−10
Indicator, throttle
Loading…
↗
14
90269−02M09
Rivet(6l5)
Loading…
↗
15
90501−23215
Spring (655)
Loading…
↗
16
92903−10600
Washer, plate
Loading…
↗
17
90149−05M13
Screw, countersunk
Loading…
↗
18
90386−08032
Bushing (650)
Loading…
↗
19
69M−G2138−00
Lever, throttle
Loading…
↗
20
6E0−42159−02
Stay
Loading…
↗
21
97885−05012
Screw,pan head (646)
Loading…
↗
22
6N0−F6301−00
Throttle cable assembly
Loading…
↗
23
6E0−83627−41
Label, caution 7
Loading…
↗
24
6E0−83627−51
Label, Caution 7
Loading…
↗
