6CMH (2008)
STEERING

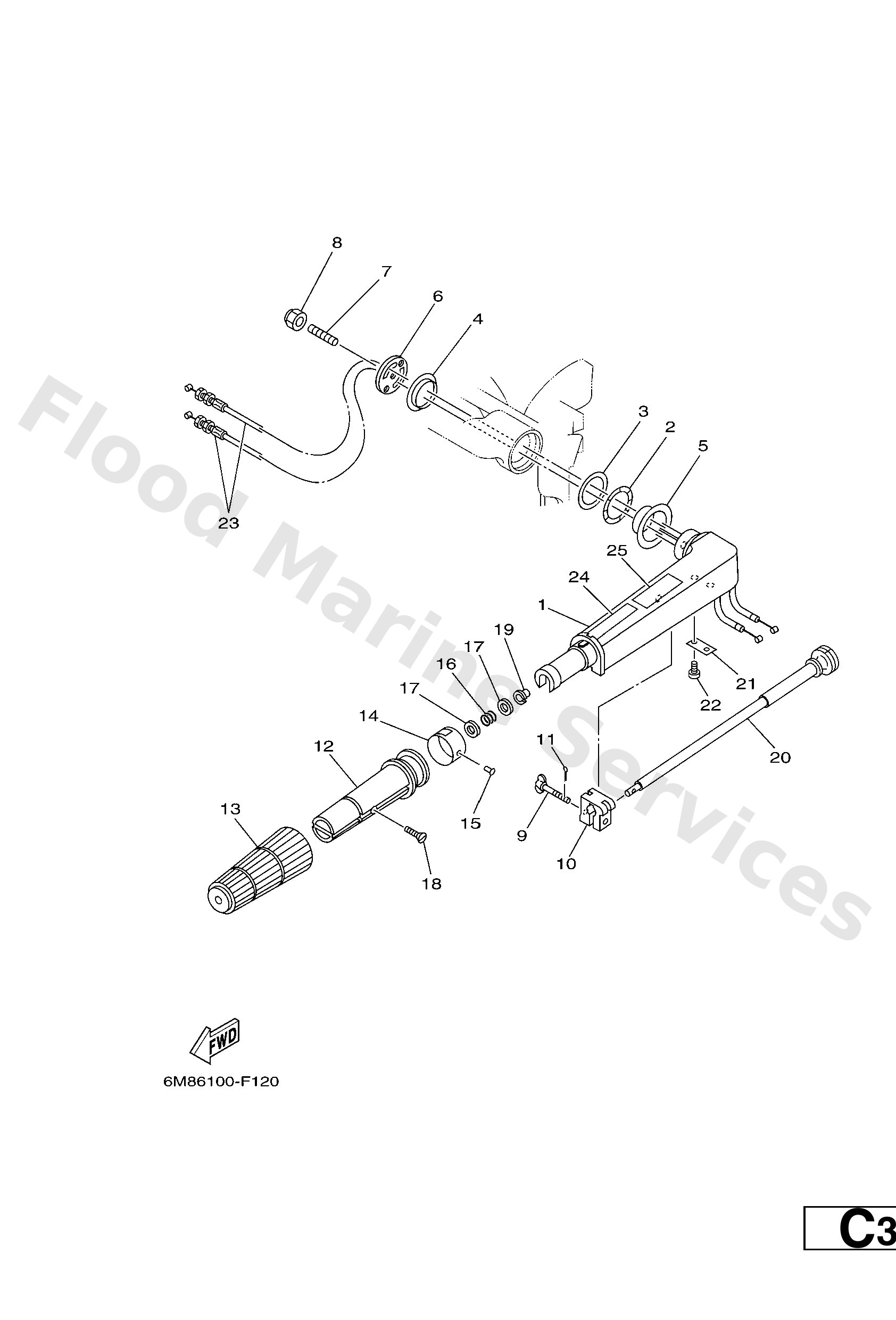

Diagram: STEERING
Parts List
Reference
Description
Price
1
6M8G2111114D
Handle, steering
Loading…
↗
2
9020636M21
Washer, wave(63v)
Loading…
↗
3
9020236M55
Washer, plate(63v)
Loading…
↗
4
9038633M96
Bush(63v)
Loading…
↗
5
9038634M97
Bush(63v)
Loading…
↗
6
6G14213102
Cover, handle steering
Loading…
↗
7
9011608016
Bolt, stud
Loading…
↗
8
9018508057
Nut, nylon (6j8)
Loading…
↗
9
6G14212501
Bolt, friction adjusting
Loading…
↗
10
6G14212600
Piece, friction
Loading…
↗
11
9149016010
Pin, cotter
Loading…
↗
12
6M4G211900
Grip, steering handle
Loading…
↗
13
6N0G217700
Rubber, handle
Loading…
↗
14
6N0G213710
Indicator, throttle
Loading…
↗
15
9026902M09
Rivet(6l5)
Loading…
↗
16
9050123215
Spring (655)
Loading…
↗
17
9020110M02
Washer, plate(6g9)
Loading…
↗
18
9014905M13
Screw, countersunk
Loading…
↗
19
9038608032
Bushing (650)
Loading…
↗
20
6G14213801
Lever, throttle
Loading…
↗
21
6E04215902
Stay
Loading…
↗
22
9788505012
Screw,pan head (646)
Loading…
↗
23
6N0F630100
Throttle cable assembly
Loading…
↗
24
60RH362740
-
Loading…
↗
25
60RH362750
-
Loading…
↗
