Yamaha Outboard Parts - STEERING - 9.9FMH (2023) | Flood Marine

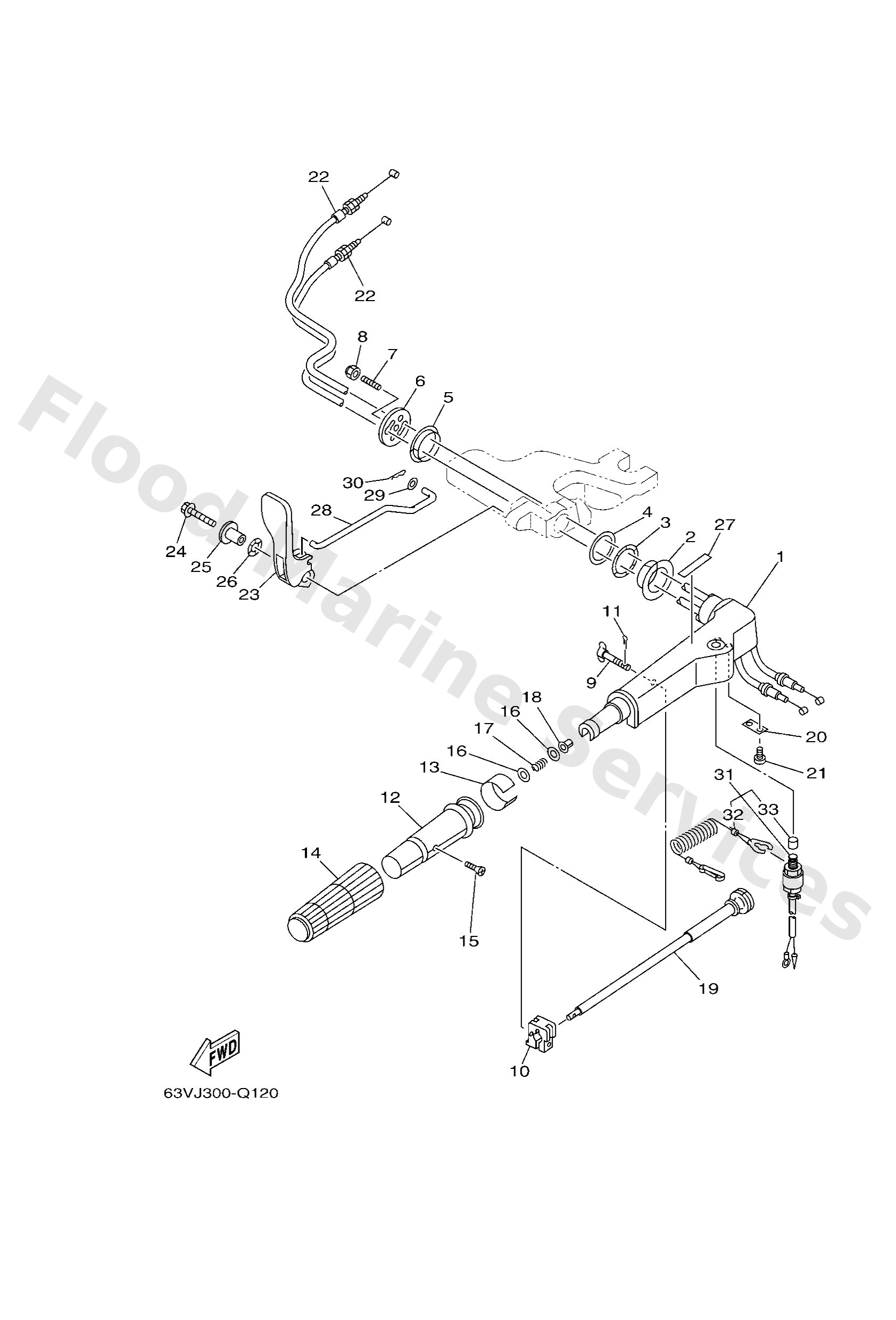

Diagram: STEERING

Diagram

Parts List

Reference
Description
Price


1
63V42111018D
Handle, steering
Loading…

↗
2
9038634M97
Bush(63v)
Loading…

↗
3
9020636M21
Washer, wave(63v)
Loading…

↗
4
9020236M55
Washer, plate(63v)
Loading…

↗
5
9038633M96
Bush(63v)
Loading…

↗
6
6G14213102
Cover, handle steering
Loading…

↗
7
9011608016
Bolt, stud
Loading…

↗
8
9018508057
Nut, nylon (6j8)
Loading…

↗
9
6G14212501
Bolt, friction adjusting
Loading…

↗
10
6G14212600
Piece, friction
Loading…

↗
11
9149016010
Pin, cotter
Loading…

↗
12
6644211900
Grip, steering handle
Loading…

↗
13
6H24213710
Indicator, throttle
Loading…

↗
14
6G14217701
Rubber, handle
Loading…

↗
15
9015205011
Screw, countersunk
Loading…

↗
16
9020110M02
Washer, plate(6g9)
Loading…

↗
17
9050123215
Spring (655)
Loading…

↗
18
9038608032
Bushing (650)
Loading…

↗
19
6G14213801
Lever, throttle
Loading…

↗
20
6E04215902
Stay
Loading…

↗
21
9788505012
Screw,pan head (646)
Loading…

↗
22
6L22630101
Throttle cable assembly
Loading…

↗
23
63V4411102
Handle, gear shift
Loading…

↗
24
9011906M05
Bolt, with washer(6l2)
Loading…

↗
25
9038706M86
Collar
Loading…

↗
26
9020615M18
Washer, wave(6l2)
Loading…

↗
27
6X34419100
Indicator, shift
Loading…

↗
28
63V4412402
Link, shift rod
Loading…

↗
29
9020206009
Washer plate 626427510000
Loading…

↗
30
9046818008
Clip 620436610000
Loading…

↗
31
65W8257501
Engine stop switch assembly
Loading…

↗
32
6828255600
Lanyard, stop switch
Loading…

↗
33
6898257Y00
Cap
Loading…

↗
