Yamaha Outboard Parts - STEERING - E40GMH (2003) | Flood Marine

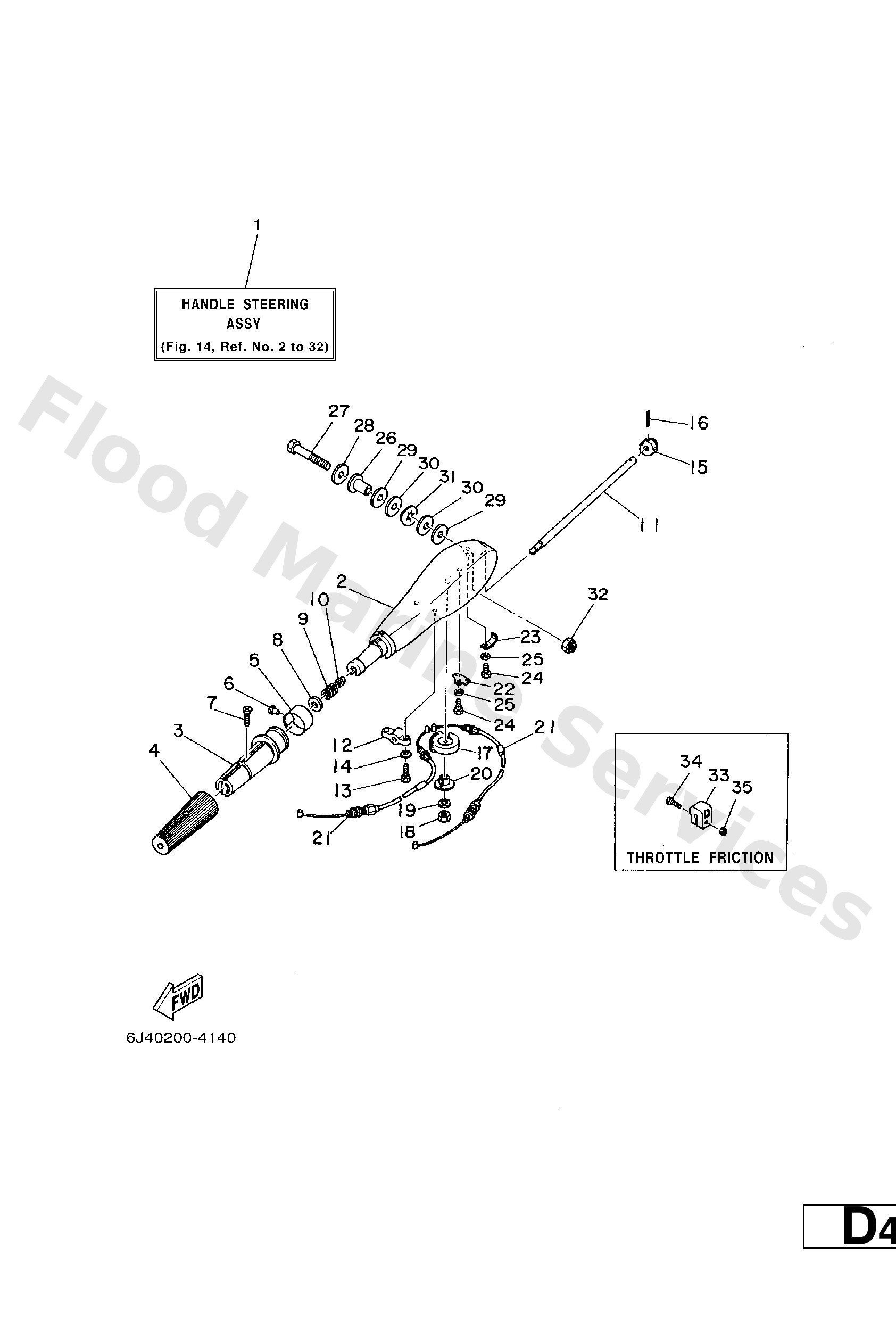

Diagram: STEERING

Diagram

Parts List

Reference
Description
Price


3
664−42119−00
Grip, steering handle
Loading…

↗
4
6F6−42177−A0
Rubber, handle
Loading…

↗
5
6F6−42137−10
Indicator, Throttle
Loading…

↗
6
90269−02M09
Rivet(6l5)
Loading…

↗
7
90149−05M13
Screw, countersunk
Loading…

↗
8
92903−10600
Washer, plate
Loading…

↗
9
90501−23215
Spring (655)
Loading…

↗
10
90386−08032
Bushing (650)
Loading…

↗
11
676−42115−00
Shaft, steering handle
Loading…

↗
12
676−42159−00
Stay
Loading…

↗
13
97095−06020
Bolt(7u8)
Loading…

↗
14
92995−06600
Washer, plain (646)
Loading…

↗
16
91690−30025
Pin, spring
Loading…

↗
18
95380−06600
Nut(661)
Loading…

↗
19
92990−06100
Washer(6a1)
Loading…

↗
20
90386−08M00
Bushing (676)
Loading…

↗
21
6F5−26311−00
Throttle wire comp.
Loading…

↗
22
676−26391−00
Clip, wire 1
Loading…

↗
23
676−26392−00
Clip, wire 2
Loading…

↗
24
97095−05010
Bolt (682)
Loading…

↗
25
92995−05600
Washer, plain (646)
Loading…

↗
26
90386−12089
Bushing(663)
Loading…

↗
27
90101−12M37
Bolt (676)
Loading…

↗
28
92990−12200
Ybs66-12 washer,plain
Loading…

↗
29
90202−12092
Washer, plate(663)
Loading…

↗
30
90201−12537
Washer, plate(663)
Loading…

↗
31
90206−12054
Washer, wave(663)
Loading…

↗
32
90185−12058
Nut, nylon(663)
Loading…

↗
33
656−42126−01
Piece, friction
Loading…

↗
35
90185−06062
Nut selflocking (656)
Loading…

↗
