E60HMHD (2004)
STEERING

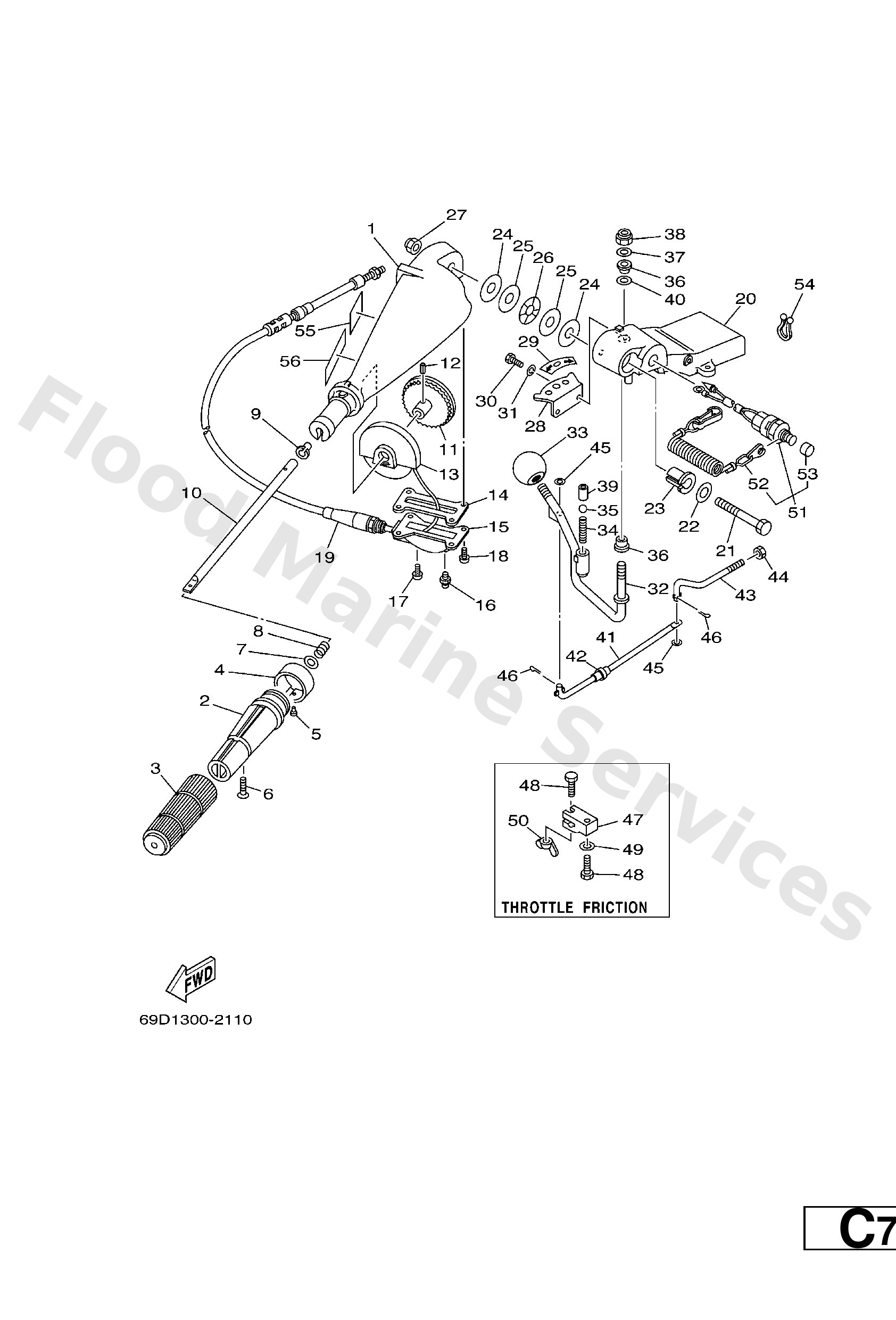

Diagram: STEERING
Parts List
Reference
Description
Price
1
66342111024D
Handle, steering
Loading…
↗
2
6644211900
Grip, steering handle
Loading…
↗
3
6F642177A0
Rubber, handle
Loading…
↗
4
6K54213700
Indicator, throttle
Loading…
↗
5
9026902M09
Rivet(6l5)
Loading…
↗
6
9014905M13
Screw, countersunk
Loading…
↗
7
9290310600
Washer, plate
Loading…
↗
8
9050123215
Spring (655)
Loading…
↗
9
9038608032
Bushing (650)
Loading…
↗
10
6634211500
Shaft, steering handle
Loading…
↗
11
6634213800
Lever, throttle
Loading…
↗
12
9025403003
Pin, spring
Loading…
↗
13
6634213501
Housing, throttle lever
Loading…
↗
14
6634213301
Gasket
Loading…
↗
15
663421340394
Cover, throttle lever
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
9788506008
Screw, pan head(6a3)
Loading…
↗
18
9788505012
Screw,pan head (646)
Loading…
↗
19
6922630103
Throttle cable assembly
Loading…
↗
20
69242121024D
Bracket
Loading…
↗
21
9010112M06
Bolt
Loading…
↗
22
9299012200
Ybs66-12 washer,plain
Loading…
↗
23
9038612089
Bushing(663)
Loading…
↗
24
9020212092
Washer, plate(663)
Loading…
↗
25
9020112537
Washer, plate(663)
Loading…
↗
26
9020612054
Washer, wave(663)
Loading…
↗
27
9018512058
Nut, nylon(663)
Loading…
↗
28
6974411300
Cam plate, handle
Loading…
↗
29
6K54419100
Indicator,shift
Loading…
↗
30
9701306016
Bolt, hexagon deep recess
Loading…
↗
31
9290306100
Washer(6a1)
Loading…
↗
32
6924415901
Handle, gear shift 2
Loading…
↗
33
6634417300
Lever, shift control
Loading…
↗
34
9050116M17
Spring (697)
Loading…
↗
35
9351532M01
Ball (697)
Loading…
↗
36
9038610009
Bushing 6484418600
Loading…
↗
37
9020110120
Washer, plate
Loading…
↗
38
9018510051
Nut, self-locking
Loading…
↗
39
9038712M30
Coller (697)
Loading…
↗
40
9020112M34
Washer (692)
Loading…
↗
41
6H34219101
Rod 1
Loading…
↗
42
9038606088
Bushing(663)
Loading…
↗
43
6H34219200
Rod 2
Loading…
↗
44
7004833900
Nut,cable end
Loading…
↗
45
9299006600
Washer, plain (646)
Loading…
↗
46
9149025012
Pin, cotter
Loading…
↗
47
6634212601
Friction, steering handle
Loading…
↗
48
9010106M27
Bolt
Loading…
↗
50
9017506003
Nut, wing (f87)
Loading…
↗
51
6K58257503
Engine stop switch assembly
Loading…
↗
52
6828255600
Lanyard, stop switch
Loading…
↗
53
6898257Y00
Cap
Loading…
↗
54
9046408M07
Clamp
Loading…
↗
55
6E08362751
-
Loading…
↗
56
6E08362741
Label, caution 7
Loading…
↗
