EK9.9HMH (2003)
STEERING

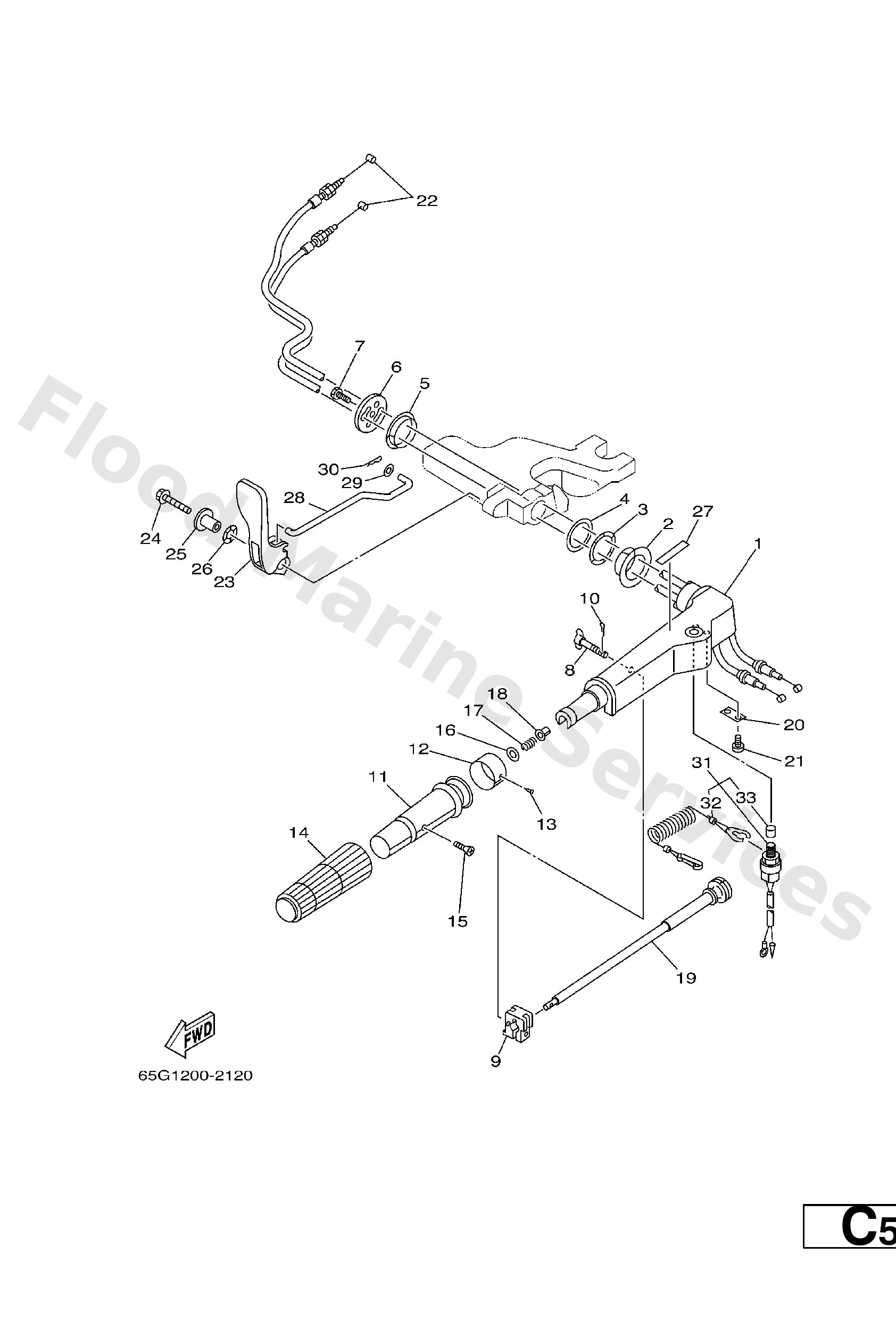

Diagram: STEERING
Parts List
Reference
Description
Price
1
63V−42111−00−4D
Handle, steering
Loading…
↗
2
90386−34M97
Bush(63v)
Loading…
↗
3
90206−36M21
Washer, wave(63v)
Loading…
↗
4
90202−36M55
Washer, plate(63v)
Loading…
↗
5
90386−33M96
Bush(63v)
Loading…
↗
6
6G1−42131−01
Cover, handle steering
Loading…
↗
7
97095−06020
Bolt(7u8)
Loading…
↗
8
6G1−42125−01
Bolt, friction adjusting
Loading…
↗
9
6G1−42126−00
Piece, friction
Loading…
↗
10
91490−16010
Pin, cotter
Loading…
↗
11
664−42119−00
Grip, steering handle
Loading…
↗
12
6H2−42137−00
Indicator, throttle
Loading…
↗
13
90269−02M09
Rivet(6l5)
Loading…
↗
14
6G1−42177−00
Rubber, handle
Loading…
↗
15
90149−05M13
Screw, countersunk
Loading…
↗
16
92903−10600
Washer, plate
Loading…
↗
17
90501−23215
Spring (655)
Loading…
↗
18
90386−08032
Bushing (650)
Loading…
↗
19
6G1−42138−01
Lever, throttle
Loading…
↗
20
6E0−42159−02
Stay
Loading…
↗
21
97885−05012
Screw,pan head (646)
Loading…
↗
22
6L2−26301−00
Throttle cable assembly
Loading…
↗
23
63V−44111−02
Handle, gear shift
Loading…
↗
24
90119−06M05
Bolt, with washer(6l2)
Loading…
↗
25
90387−06M86
Collar
Loading…
↗
26
90206−15M18
Washer, wave(6l2)
Loading…
↗
27
6E0−44191−11
Indicator, shift
Loading…
↗
28
63V−44124−02
Link, shift rod
Loading…
↗
29
90202−06009
Washer plate 626427510000
Loading…
↗
30
90468−18008
Clip 620436610000
Loading…
↗
31
65W−82575−01
Engine stop switch assembly
Loading…
↗
32
682−82556−00
Lanyard, stop switch
Loading…
↗
33
689−8257Y−00
Cap
