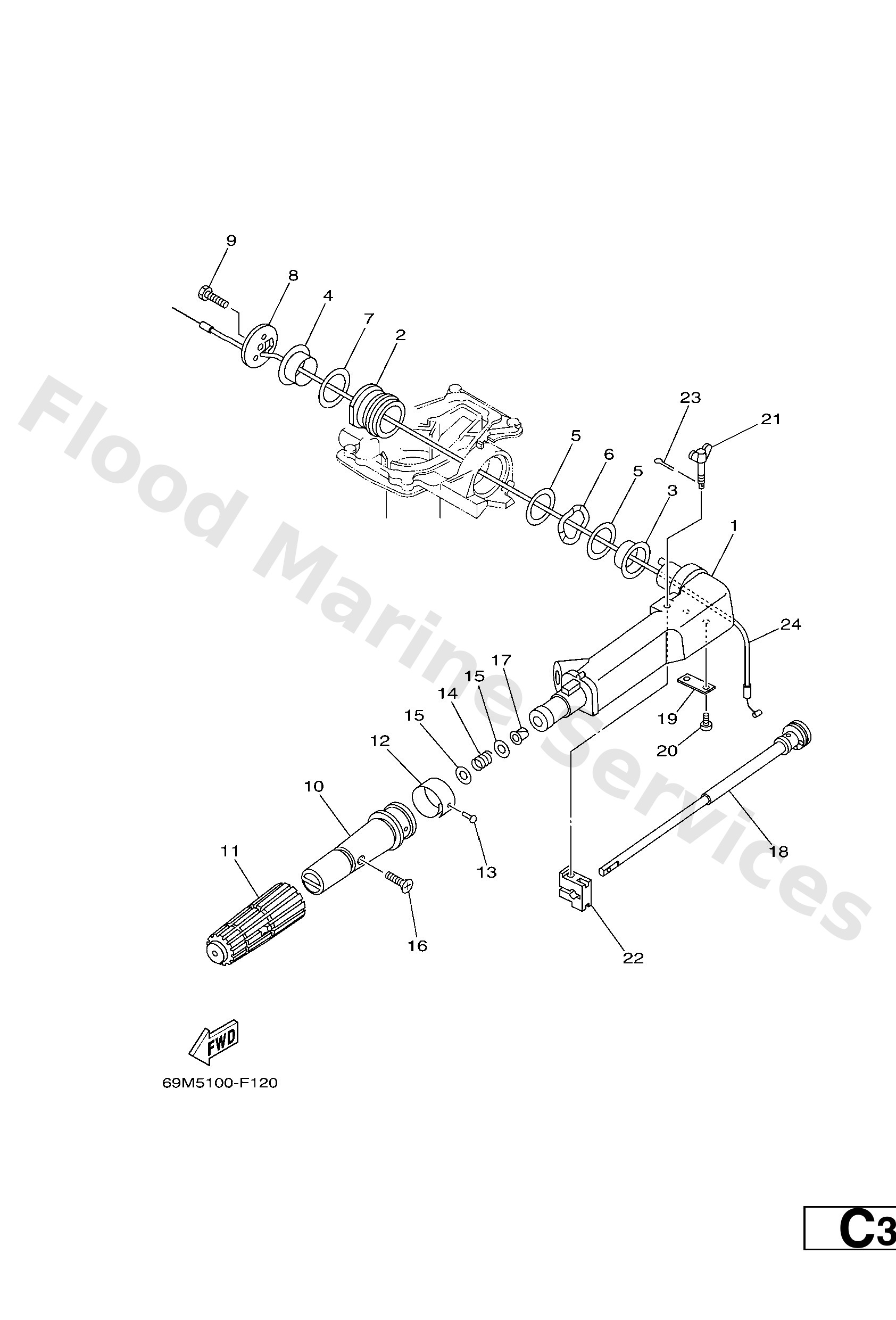

Diagram: STEERING

Diagram

Parts List

Reference
Description
Price


1
69MG2111004D
Handle, Steering
Loading…

↗
2
67D4212900
Bushing, rubber
Loading…

↗
3
68DG217100
Bushing, 1
Loading…

↗
4
68DG217200
Bushing, 2
Loading…

↗
5
68DG218100
Washer, 1
Loading…

↗
6
69MG218800
Washer,wave
Loading…

↗
7
68DG218200
Washer, 2
Loading…

↗
8
68DG213101
Cover, Handle Steering
Loading…

↗
9
9707508025
Bolt, hexagon deep recess
Loading…

↗
10
69MG211910
Grip steering handle
Loading…

↗
11
6N0G217700
Rubber, handle
Loading…

↗
12
69MG213700
Indicator, throttle
Loading…

↗
13
9026902M09
Rivet(6l5)
Loading…

↗
14
9050123800
Spring (655)
Loading…

↗
15
9020110M02
Washer, plate(6g9)
Loading…

↗
16
9014905M13
Screw, countersunk
Loading…

↗
17
9038608032
Bushing (650)
Loading…

↗
18
6G14213801
Lever, throttle
Loading…

↗
19
68DG215900
Stay
Loading…

↗
20
9788505012
Screw,pan head (646)
Loading…

↗
21
6G14212501
Bolt, friction adjusting
Loading…

↗
22
6G14212600
Piece, friction
Loading…

↗
23
9149016010
Pin, cotter
Loading…

↗
24
69MF630100
Trottle cable
Loading…

↗
