F2.5BMH (2025)
STEERING

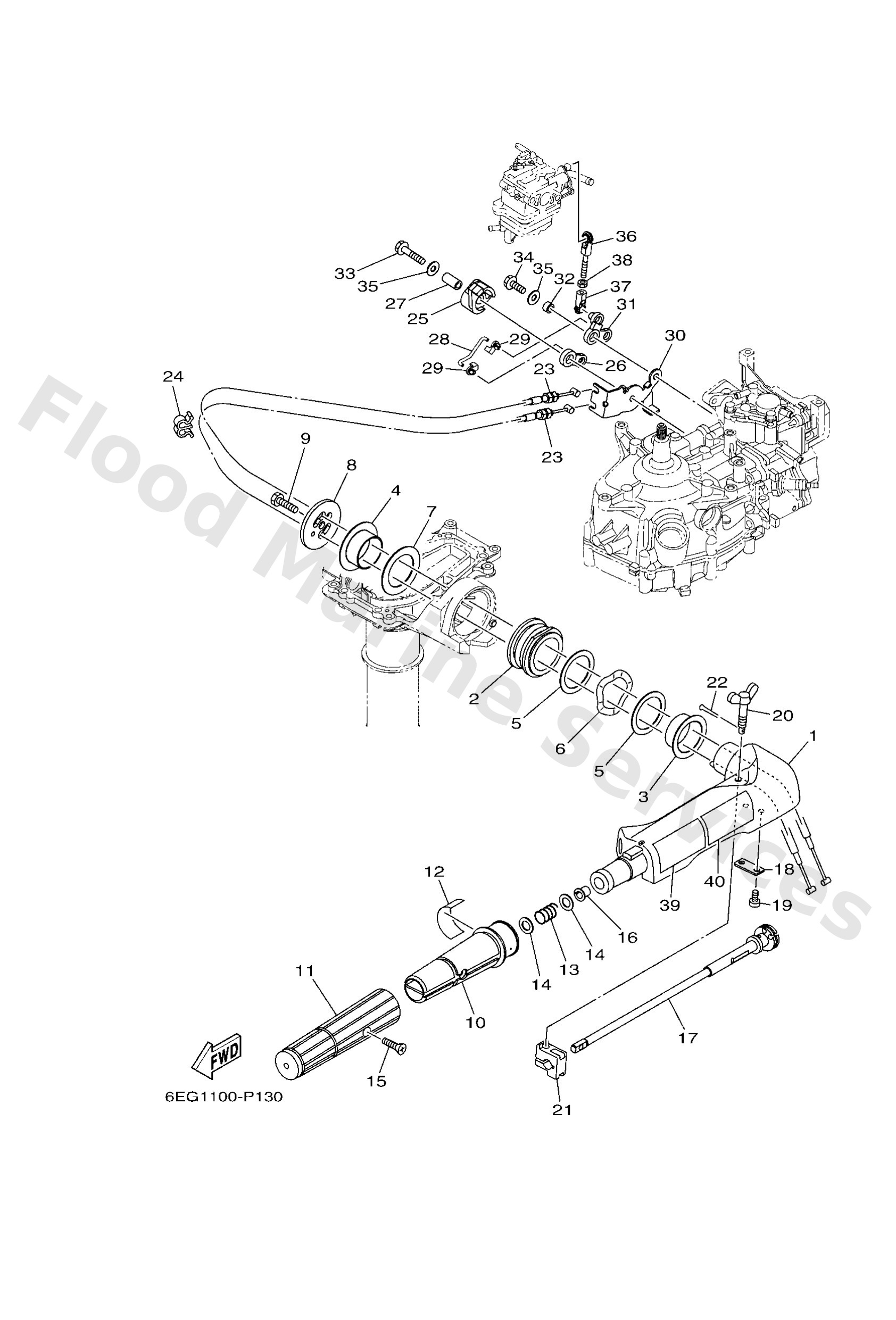

Diagram: STEERING
Parts List
Reference
Description
Price
1
6EG42111008D
Handle, Steering
Loading…
↗
2
6BX4212900
Bushing, rubber
Loading…
↗
3
6EE4217100
Bushing
Loading…
↗
4
6EE4217200
Bushing 2
Loading…
↗
5
6EE4218100
Washer
Loading…
↗
6
6EE4218800
Washer, wave
Loading…
↗
7
6EE4218200
Washer 2
Loading…
↗
8
6BX4213100
Cover, handle steering
Loading…
↗
9
97D7508025
Bolt, hexagon deep recess
Loading…
↗
10
6EG4211900
Grip, steering handle
Loading…
↗
11
6EG4217700
Rubber, handle
Loading…
↗
12
6EG4213700
Indicator, throttle
Loading…
↗
13
9050123215
Spring (655)
Loading…
↗
14
9020110M02
Washer, plate(6g9)
Loading…
↗
15
9015205011
Screw, countersunk
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
6G14213801
Lever, throttle
Loading…
↗
18
6E04215902
Stay
Loading…
↗
19
9788505012
Screw,pan head (646)
Loading…
↗
20
6G14212501
Bolt, friction adjusting
Loading…
↗
21
6G14212600
Piece, friction
Loading…
↗
22
9149016010
Pin, cotter
Loading…
↗
23
6EG2630100
Throttle cable assembly
Loading…
↗
24
9046407M20
Clamp(6h0)
Loading…
↗
25
6BX4163800
Pulley
Loading…
↗
26
6EG4128300
Lever, free accel.
Loading…
↗
27
9038706252
Collar
Loading…
↗
28
6EG4121100
Link, accel.
Loading…
↗
29
6614126202
Joint, choke lever
Loading…
↗
30
6EG1449700
Stay, throttle wire
Loading…
↗
31
6EG4128400
Lever, free axle 2
Loading…
↗
32
9038706M24
Collar(6r8)
Loading…
↗
33
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
34
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
35
9020106M62
Washer, plate (6e5)
Loading…
↗
36
6824123750
Joint, link 2
Loading…
↗
37
6H14123700
Joint, link
Loading…
↗
38
9538005600
Nut, hexagon (663)
Loading…
↗
39
6EG4279440
Label, Warning (General)
Loading…
↗
40
6EG4279450
Label, Warning (General)
Loading…
↗
