F4AMH (2008)
STEERING

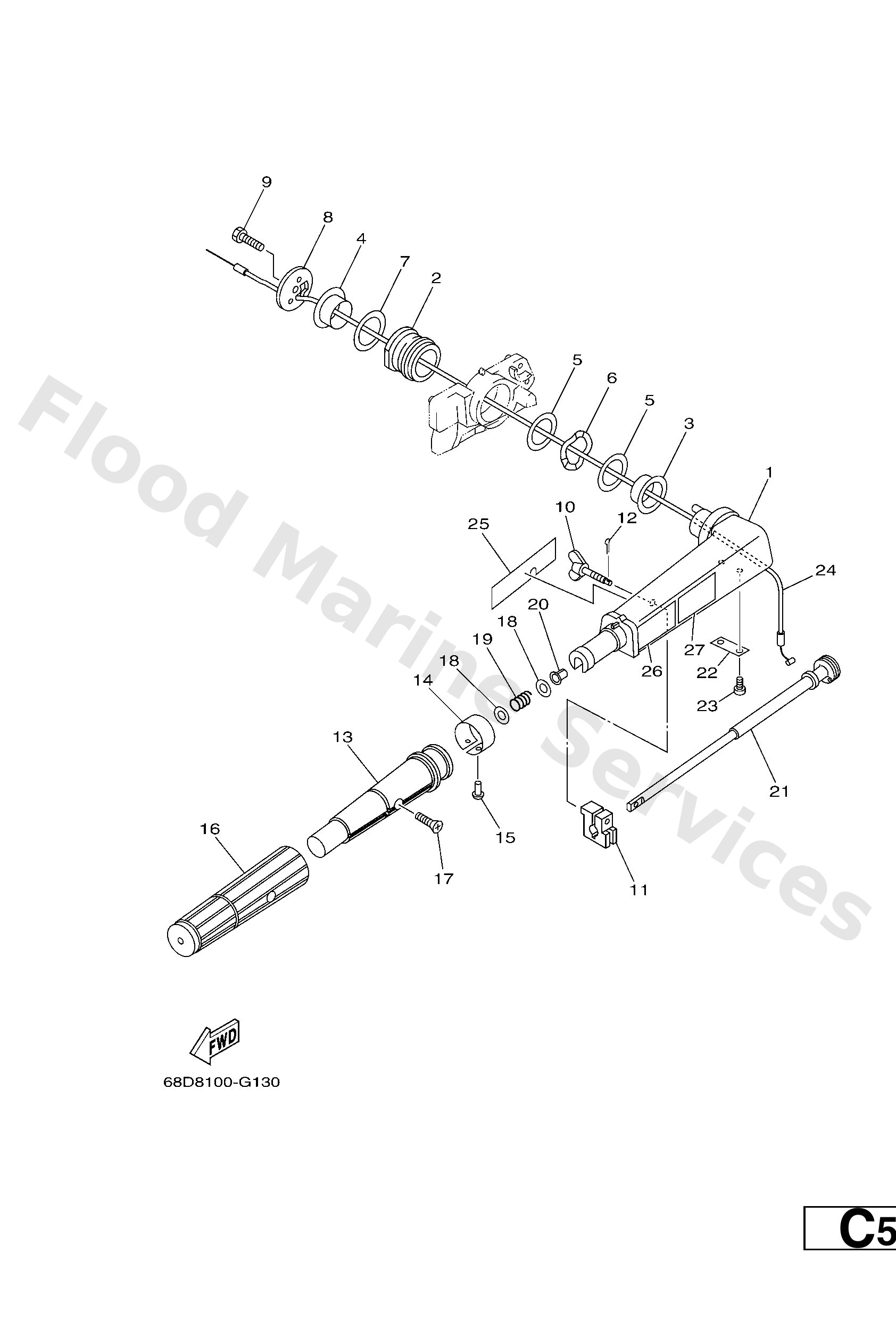

Diagram: STEERING
Parts List
Reference
Description
Price
1
68DG2111004D
Handle, Steering
Loading…
↗
2
67D4212900
Bushing, rubber
Loading…
↗
3
68DG217100
Bushing, 1
Loading…
↗
4
68DG217200
Bushing, 2
Loading…
↗
5
68DG218100
Washer, 1
Loading…
↗
6
69MG218800
Washer,wave
Loading…
↗
7
68DG218200
Washer, 2
Loading…
↗
8
68DG213101
Cover, Handle Steering
Loading…
↗
9
9707508025
Bolt, hexagon deep recess
Loading…
↗
10
6G14212501
Bolt, friction adjusting
Loading…
↗
11
6G14212600
Piece, friction
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
68DG211900
Grip, steering han
Loading…
↗
14
68DG213700
Indicator, Throttle
Loading…
↗
15
9026902M09
Rivet(6l5)
Loading…
↗
16
68DG217710
Rubber, handle
Loading…
↗
17
9014905M13
Screw, countersunk
Loading…
↗
18
9020110M02
Washer, plate(6g9)
Loading…
↗
19
9050123215
Spring (655)
Loading…
↗
20
9038608032
Bushing (650)
Loading…
↗
21
6G14213801
Lever, throttle
Loading…
↗
22
68DG215900
Stay
Loading…
↗
23
9788505012
Screw,pan head (646)
Loading…
↗
24
68DF630100
Trottle cable
Loading…
↗
25
68DE571Y60
Mark, Caution
Loading…
↗
26
6AH4279440
Label, warning (ge
Loading…
↗
27
6AH4279450
Label, warning (ge
Loading…
↗
