F50TRA (2002)
STEERING

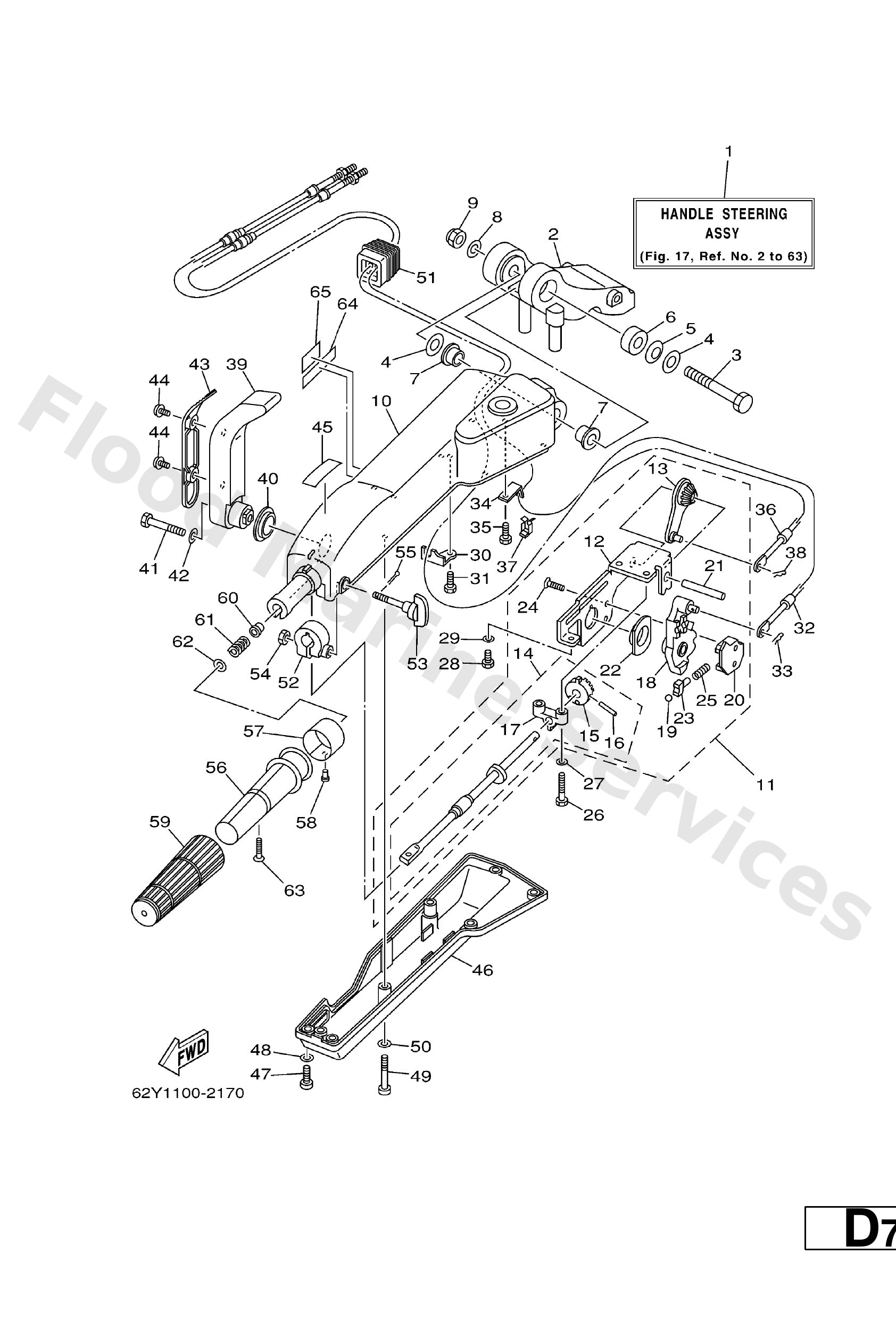

Diagram: STEERING
Parts List
Reference
Description
Price
3
9010112M09
Bolt
Loading…
↗
4
9299012200
Ybs66-12 washer,plain
Loading…
↗
5
9020612M22
Washer, wave(6b0)
Loading…
↗
6
9038712M02
Collar(6b0)
Loading…
↗
7
9038612M93
Bush(6b0)
Loading…
↗
8
9299012600
Washer, plate(663)
Loading…
↗
9
9018512M12
Nut, self-locking(6e5)
Loading…
↗
11
67C4410000
Shift Link assembly
Loading…
↗
12
67C4410400
Plate Comp.
Loading…
↗
13
67G4826100
Arm, Throttle
Loading…
↗
14
67C4211500
Shaft, Steering Handle
Loading…
↗
15
650421520094
Gear
Loading…
↗
16
9169030025
Pin, spring
Loading…
↗
17
67G4215900
Stay
Loading…
↗
18
67C4411300
Cam plate, handle
Loading…
↗
19
63D4823600
Roller, detent
Loading…
↗
20
67C4811900
Cover
Loading…
↗
21
67G4215300
Shaft, Throttle Control
Loading…
↗
22
67G4413200
Bushing
Loading…
↗
23
63D4823700
Adaptor
Loading…
↗
24
9878505014
Screw 3
Loading…
↗
25
63D4823800
Spring, detent
Loading…
↗
26
9709506030
Bolt(jf7)
Loading…
↗
27
9299506600
Washer, plain (646)
Loading…
↗
28
9709506014
Bolt(gj3)
Loading…
↗
30
67G4853100
Bracket, Remote Control 1
Loading…
↗
32
67C4832100
Cable
Loading…
↗
33
9046810005
Pin, hair 6264123500
Loading…
↗
34
66R4853800
Clamp, cable 1
Loading…
↗
36
67C2630100
Throttle Cable assembly
Loading…
↗
37
63D4853800
Clamp, cable 1
Loading…
↗
40
9038626MA3
Bush
Loading…
↗
41
9709508040
Bolt, hexagon
Loading…
↗
42
9299508600
Washer, plain (663)
Loading…
↗
43
67G4417300
Lever, Shift Control
Loading…
↗
44
9015906M18
Screw, with washer(6b0)
Loading…
↗
45
6G84419100
Indicator, shift
Loading…
↗
46
67G4213100
Cover, Handle Steering
Loading…
↗
47
9788506016
Screw, pan head(6b0)
Loading…
↗
49
9788506040
Screw pan head
Loading…
↗
51
63D4272500
-
Loading…
↗
52
63D4212600
Friction, steering handle grip
Loading…
↗
53
63D4815400
Knob, Throttle
Loading…
↗
54
9538006600
Nut(661)
Loading…
↗
55
9149020010
Pin, cotter
Loading…
↗
56
6644211900
Grip, steering handle
Loading…
↗
57
6J04213700
Indicator, throttle
Loading…
↗
58
9026902M09
Rivet(6l5)
Loading…
↗
59
6G14217700
Rubber, handle
Loading…
↗
60
9038608032
Bushing (650)
Loading…
↗
61
9050123215
Spring (655)
Loading…
↗
62
9290310600
Washer, plate
Loading…
↗
63
9014905M13
Screw, countersunk
Loading…
↗
64
6E08362741
Label, caution 7
Loading…
↗
65
6E08362751
FOR CANADA
-
Loading…
↗
