Yamaha Outboard Parts - STEERING - F5AMH (2020) | Flood Marine
New Search
Parts
New Outboards
Home
F5AMH (2020)
STEERING

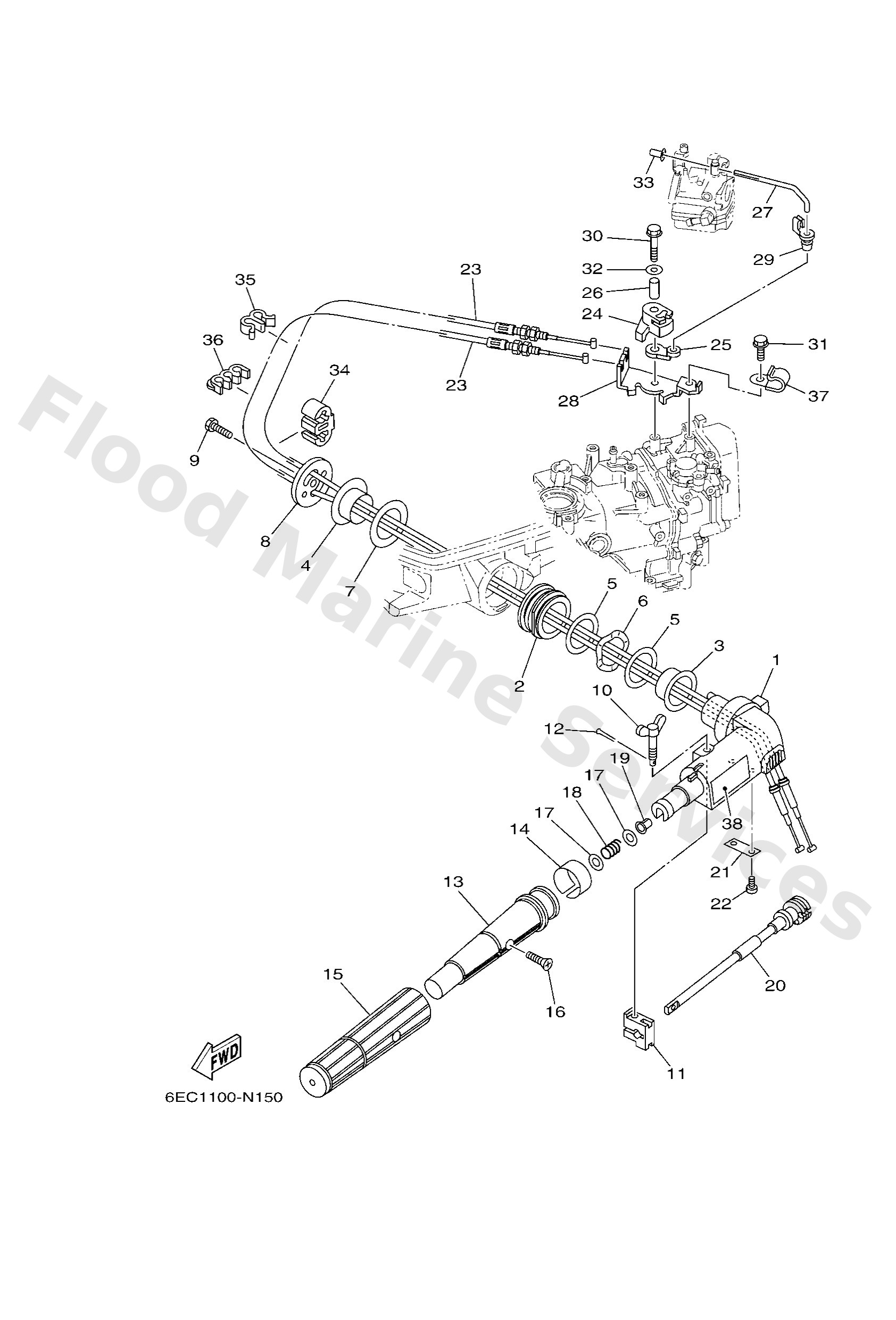

Diagram: STEERING
Parts List
Reference
Description
Price
1
6EEG2111008D
Handle, steering
Loading…
↗
2
6BX4212900
Bushing, rubber
Loading…
↗
3
6EEG217100
Bushing
Loading…
↗
4
6EEG217200
Bushing 2
Loading…
↗
5
6EEG218100
Washer
Loading…
↗
6
6EEG218800
Washer, wave
Loading…
↗
7
6EEG218200
Washer 2
Loading…
↗
8
6EEG213100
Cover, handle stee
Loading…
↗
9
97D7508025
Bolt, hexagon deep recess
Loading…
↗
10
6G14212501
Bolt, friction adjusting
Loading…
↗
11
6EEG212600
Friction, steering
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
6EEG211900
Grip, steering han
Loading…
↗
14
6EEG213700
Indicator, throttl
Loading…
↗
15
6EEG217701
Rubber, handle
Loading…
↗
16
9015205014
Screw, countersunk
Loading…
↗
17
9020110M02
Washer, plate(6g9)
Loading…
↗
18
9050123215
Spring (655)
Loading…
↗
19
9038608032
Bushing (650)
Loading…
↗
20
6EEG213800
Lever, throttle
Loading…
↗
21
6EEG215900
Stay
Loading…
↗
22
9788505012
Screw,pan head (646)
Loading…
↗
23
6EEF630100
Throttle cable ass
Loading…
↗
24
6EEG163800
Pulley
Loading…
↗
25
6EEG128300
Lever, free accel.
Loading…
↗
26
9038706252
Collar
Loading…
↗
27
6EEG121100
Link, accel.
Loading…
↗
28
6EEE449700
Stay, throttle wir
Loading…
↗
29
6614126202
Joint, choke lever
Loading…
↗
30
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
31
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
32
9020106M62
Washer, plate (6e5)
Loading…
↗
33
6471439560
Cap,over flow pipe
Loading…
↗
34
9046406006
Clamp
Loading…
↗
35
9046407M20
Clamp(6h0)
Loading…
↗
36
9046407M05
Clamp (6g5)
Loading…
↗
37
9046508395
Clamp
Loading…
↗
38
6EEG279440
Label, warning (ge
Loading…
↗
