F6AMH (2002)
STEERING

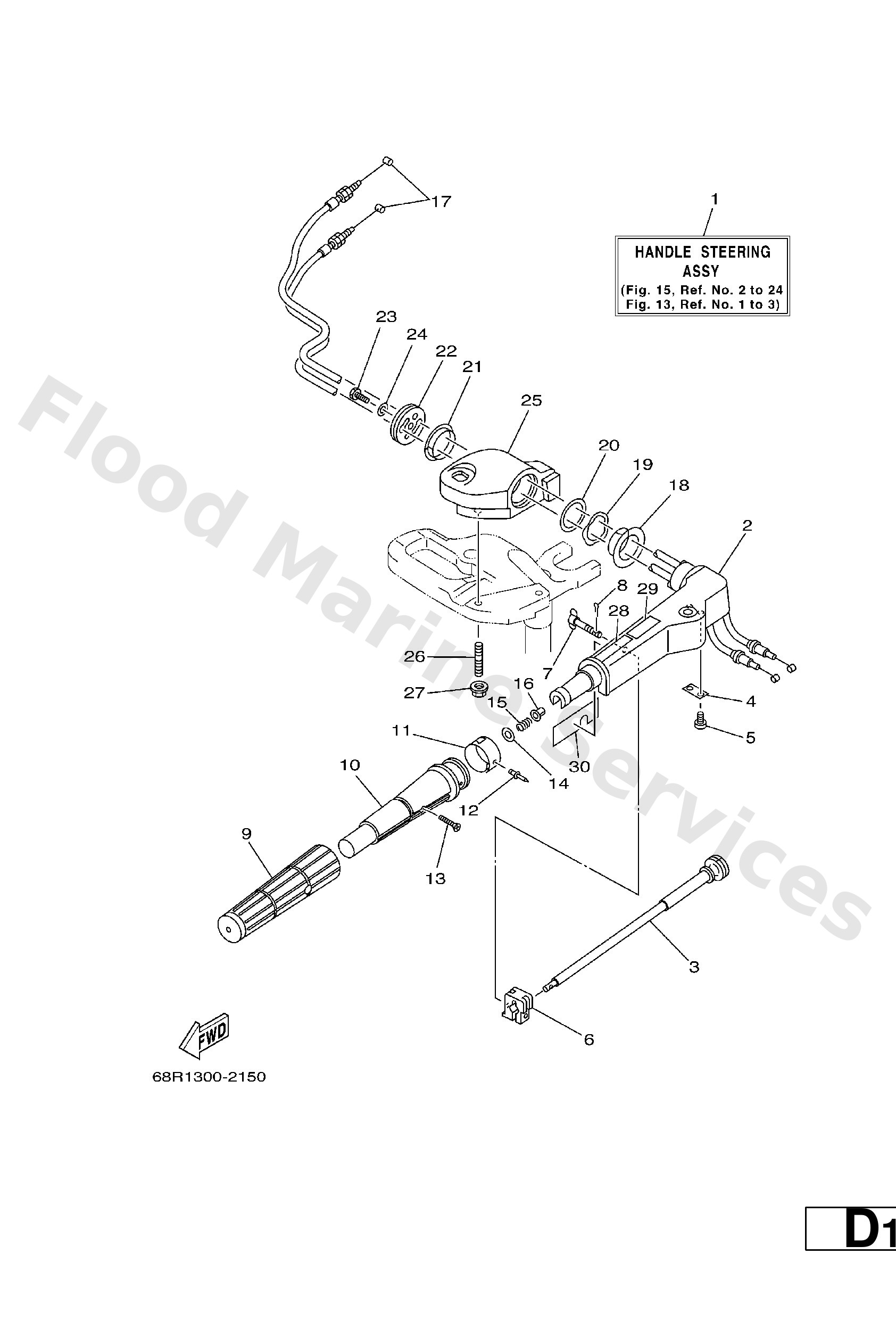

Diagram: STEERING
Parts List
Reference
Description
Price
3
6G14213801
Lever, throttle
Loading…
↗
4
6E04215902
Stay
Loading…
↗
5
9788505012
Screw,pan head (646)
Loading…
↗
6
6G14212600
Piece, friction
Loading…
↗
7
6G14212501
Bolt, friction adjusting
Loading…
↗
8
9149016010
Pin, cotter
Loading…
↗
9
67D4217700
Rubber, handle
Loading…
↗
10
67D4211900
Grip, steering handle
Loading…
↗
11
68T4213700
F8C
Indicator, throttle
Loading…
↗
11
69F4213700
F6B
Indicator, Throttle
Loading…
↗
11
68R4213700
F6A
Indicator, Throttle
Loading…
↗
12
9026902M09
Rivet(6l5)
Loading…
↗
13
9014905M13
Screw, countersunk
Loading…
↗
14
9290310600
Washer, plate
Loading…
↗
15
9050123215
Spring (655)
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
68T2630101
Throttle cable assembly
Loading…
↗
18
9038634M97
Bush(63v)
Loading…
↗
19
9020636M21
Washer, wave(63v)
Loading…
↗
20
9020236M55
Washer, plate(63v)
Loading…
↗
21
9038633M96
Bush(63v)
Loading…
↗
22
68T4213100
Cover, Handle Steering
Loading…
↗
23
9707506025
Bolt
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
26
9011610M28
Bolt, stud
Loading…
↗
27
9017910004
Nut
Loading…
↗
28
6E08362741
Label, caution 7
Loading…
↗
29
6E08362751
-
Loading…
↗
30
68T1571Y60
Mark, Caution
Loading…
↗
