F6AMH (2006)
STEERING

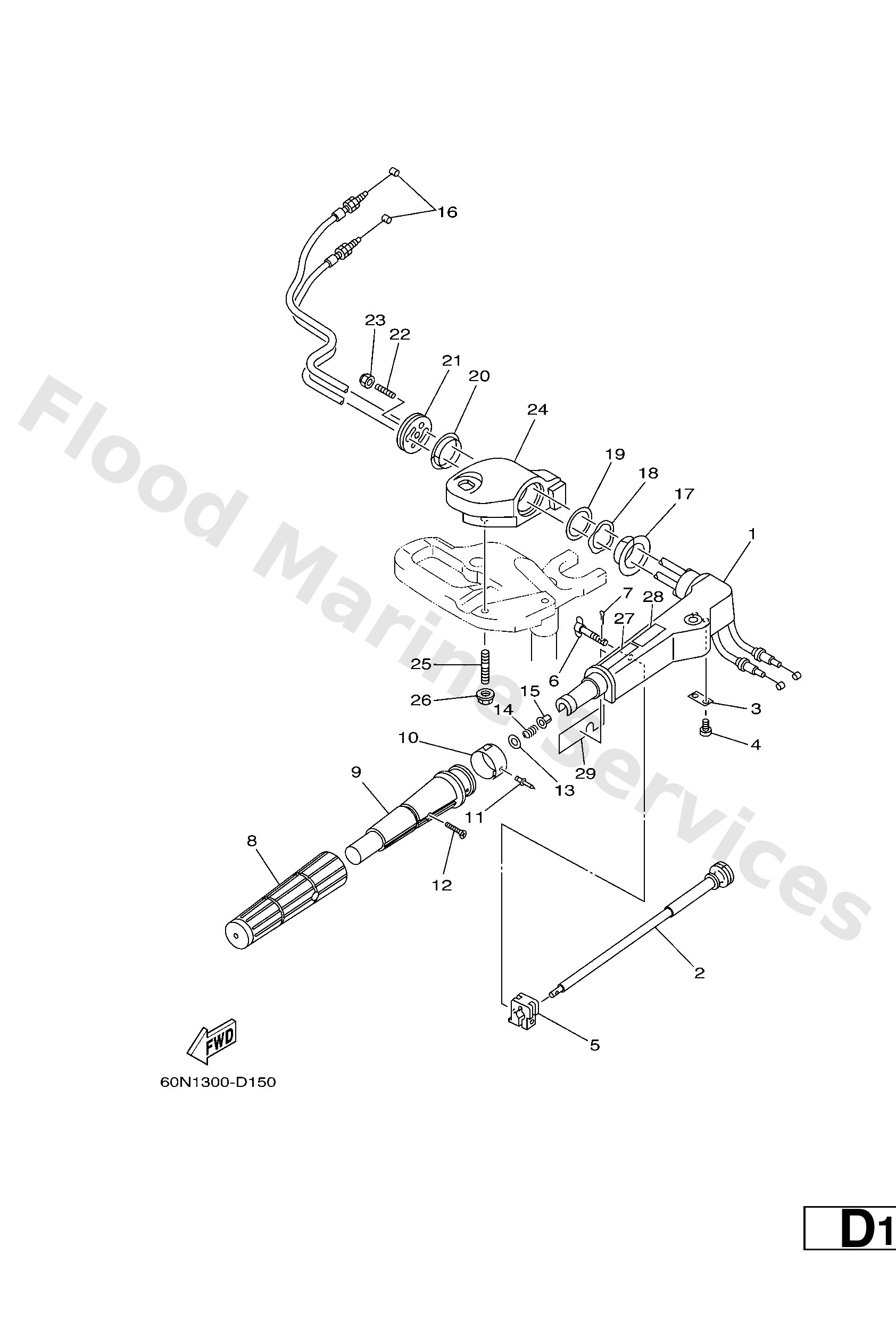

Diagram: STEERING
Parts List
Reference
Description
Price
1
60RG2111004D
Handle steering
Loading…
↗
2
6G14213801
Lever, throttle
Loading…
↗
3
68DG215900
Stay
Loading…
↗
4
9788505012
Screw,pan head (646)
Loading…
↗
5
6G14212600
Piece, friction
Loading…
↗
6
6G14212501
Bolt, friction adjusting
Loading…
↗
7
9149016010
Pin, cotter
Loading…
↗
8
68DG217710
Rubber, handle
Loading…
↗
9
68DG211900
Grip, steering han
Loading…
↗
10
60NG213700
Indicator, Throttle
Loading…
↗
10
60PG213700
Indicator, throttl
Loading…
↗
10
60RG213700
Indicator throttle
Loading…
↗
11
9026902M09
Rivet(6l5)
Loading…
↗
12
9014905M13
Screw, countersunk
Loading…
↗
13
9290310600
Washer, plate
Loading…
↗
14
9050123800
Spring (655)
Loading…
↗
15
9038608032
Bushing (650)
Loading…
↗
16
68T2630101
Throttle cable assembly
Loading…
↗
17
9038634M97
Bush(63v)
Loading…
↗
18
9020636M21
Washer, wave(63v)
Loading…
↗
19
9020236M55
Washer, plate(63v)
Loading…
↗
20
9038633M96
Bush(63v)
Loading…
↗
21
68T4213101
Cover, handle steering
Loading…
↗
22
9011608015
Bolt, stud
Loading…
↗
23
9018508057
Nut, nylon (6j8)
Loading…
↗
24
60RG2121004D
Bracket & washer set
Loading…
↗
25
9011610019
Bolt, Stud
Loading…
↗
26
9017910M33
Nut
Loading…
↗
27
60RH362740
-
Loading…
↗
28
60RH362750
-
Loading…
↗
29
60RE571Y60
-
Loading…
↗
