F6CMH (2014)
STEERING

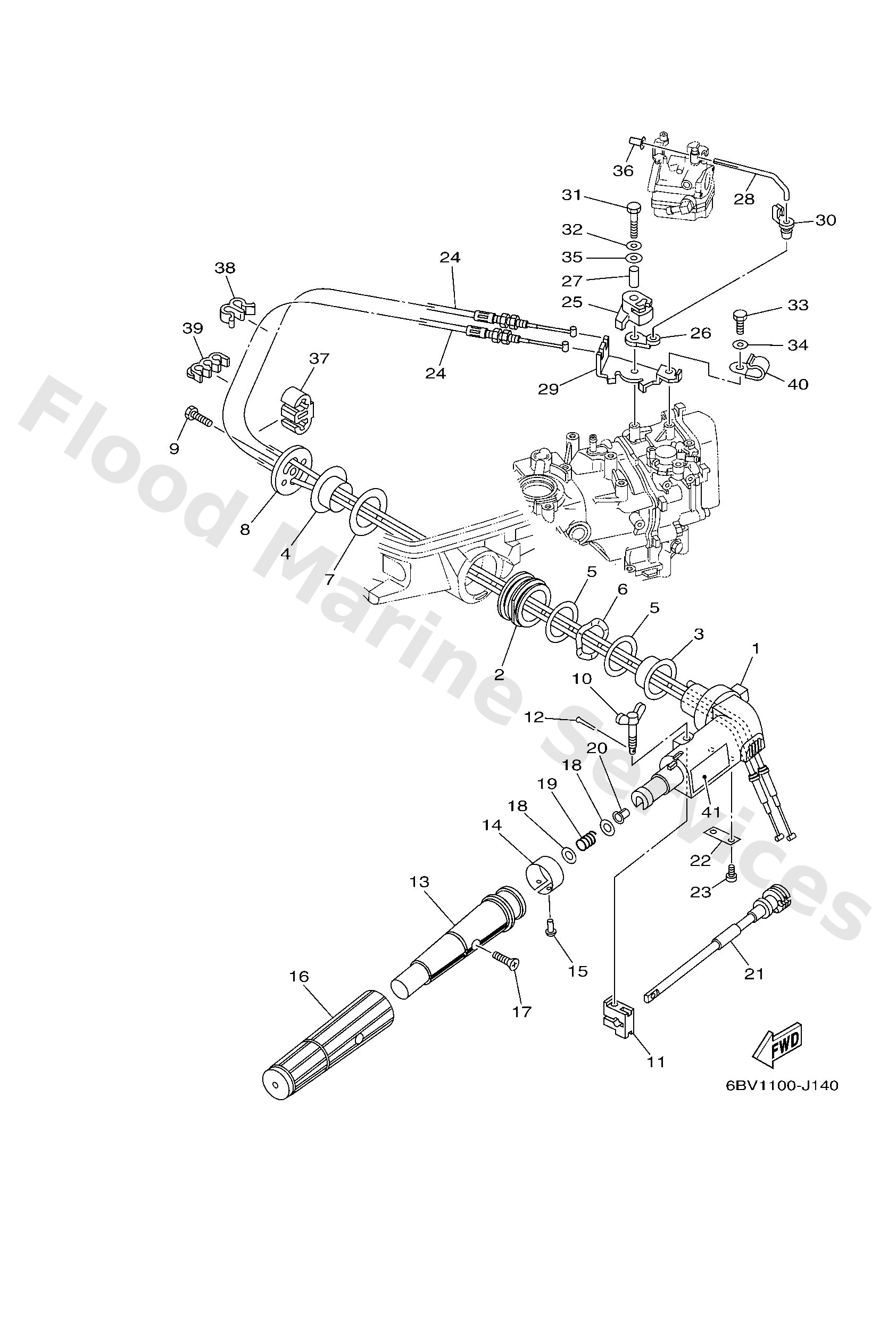

Diagram: STEERING
Parts List
Reference
Description
Price
1
6BXG2111004D
Handle, steering
Loading…
↗
2
6BX4212900
Bushing, rubber
Loading…
↗
3
6BXG217100
Bushing
Loading…
↗
4
6BXG217200
Bushing 2
Loading…
↗
5
6BXG218100
Washer
Loading…
↗
6
6BXG218800
Washer, wave
Loading…
↗
7
6BXG218200
Washer 2
Loading…
↗
8
6BX4213100
Cover, handle steering
Loading…
↗
9
9707508025
Bolt, hexagon deep recess
Loading…
↗
10
6G14212501
Bolt, friction adjusting
Loading…
↗
11
6G14212600
Piece, friction
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
68DG211901
Grip, steering han
Loading…
↗
14
60PG213700
Indicator, throttl
Loading…
↗
15
9026902M09
Rivet(6l5)
Loading…
↗
16
68DG217710
Rubber, handle
Loading…
↗
17
9015205011
Screw, countersunk
Loading…
↗
18
9020110M02
Washer, plate(6g9)
Loading…
↗
19
9050123215
Spring (655)
Loading…
↗
20
9038608032
Bushing (650)
Loading…
↗
21
6BX4213800
Lever, throttle
Loading…
↗
22
68DG215900
Stay
Loading…
↗
23
9788505012
Screw,pan head (646)
Loading…
↗
24
6BXF630100
Throttle cable ass
Loading…
↗
25
6BX4163800
Pulley
Loading…
↗
26
6BX4128300
Lever, free accel.
Loading…
↗
27
9038706252
Collar
Loading…
↗
28
6BX4121100
Link, accel.
Loading…
↗
29
6BXE449700
Stay, throttle wir
Loading…
↗
30
6614126202
Joint, choke lever
Loading…
↗
31
9709506035
Bolt(j52)
Loading…
↗
32
9299506600
Washer, plain (646)
Loading…
↗
33
9709506012
Bolt(gh1)
Loading…
↗
35
9020106M62
Washer, plate (6e5)
Loading…
↗
36
6471439560
Cap,over flow pipe
Loading…
↗
37
9046406006
Clamp
Loading…
↗
38
9046407M20
Clamp(6h0)
Loading…
↗
39
9046407M05
Clamp (6g5)
Loading…
↗
40
9046508395
Clamp
Loading…
↗
41
6AH4279440
Label, warning (ge
Loading…
↗
