Yamaha Outboard Parts - STEERING - F8FE (2020) | Flood Marine

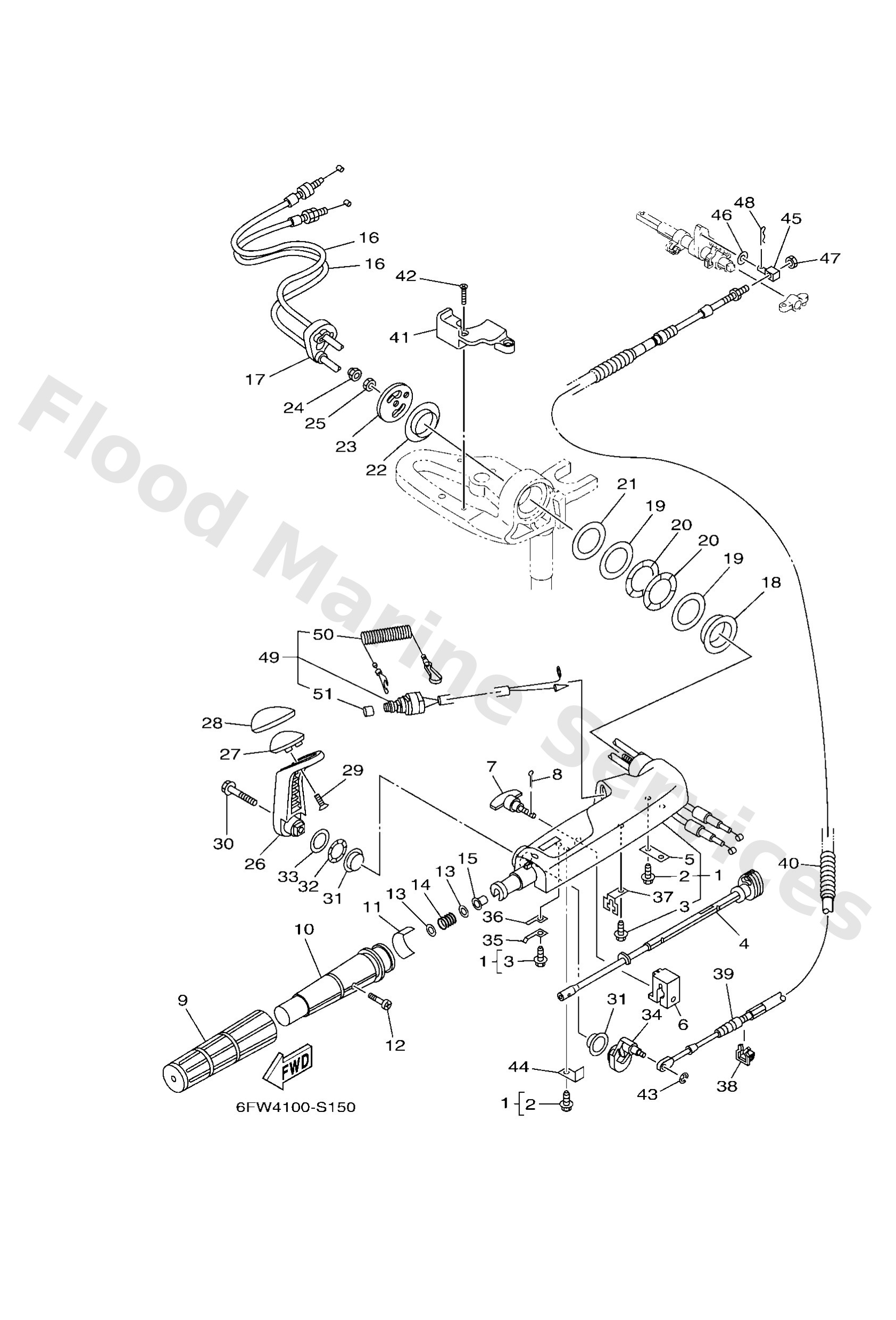

Diagram: STEERING

Diagram

Parts List

Reference

Description

Price

1

6DR42101008D

Handle, steering

Loading…

2

9010906M86

Loading…

3

9010906M80

Loading…

4

6DR4213801

Lever, throttle

Loading…

5

65W4215900

Loading…

6

6DR4212600

Friction, steering handle grip

Loading…

7

65W4212500

Bolt, friction adjusting

Loading…

8

9149016010

Loading…

9

67D4217700

Loading…

10

67D4211901

Grip, steering handle

Loading…

11

6FW4213700

Indicator, throttle

Loading…

12

9015205011

Screw, countersunk

Loading…

13

9020110M02

Washer, plate(6g9)

Loading…

14

9050123215

Loading…

15

9038608032

Loading…

16

6DR2630100

Throttle cable assembly

Loading…

17

6DR2631600

Boot, throttle cable

Loading…

18

66R4217100

Loading…

19

9020143M00

Loading…

20

9020643M22

Loading…

21

9020243M57

Loading…

22

9038640M99

Loading…

23

65W4213101

Cover, handle steering

Loading…

24

9578010300

Nut, nylon (6e5)

Loading…

25

9538010700

Loading…

26

6DR44111008D

Handle, gear shift

Loading…

27

6DR4417300

Lever, shift control

Loading…

28

6DR4212900

Bushing, rubber

Loading…

29

9778060920

Loading…

30

97E9508535

Bolt, hexagon w/w deep recess

Loading…

31

9038626MA3

Loading…

32

9020626M25

Loading…

33

9020226M59

Loading…

34

6DR44113A0

Cam plate, handle

Loading…

35

6DR4411600

Loading…

36

66R4411800

Loading…

37

66R4853800

Loading…

38

63D4853800

Loading…

39

6DR4832100

Loading…

40

9044713015

Loading…

41

6DR8259400

Loading…

42

9015105003

Screw, countersunk

Loading…

43

9908004600

Loading…

44

6DR4411400

Loading…

45

66R4834400

Cable end, remote control

Loading…

46

9020106M62

Washer, plate (6e5)

Loading…

47

9017005M38

Loading…

48

9149020012

Pin, cotter (648)

Loading…

49

65W8257501

Engine stop switch assembly

Loading…

50

6828255600

Lanyard, stop switch

Loading…

51

6898257Y00

Loading…
