F9.9FMH (2011)
STEERING

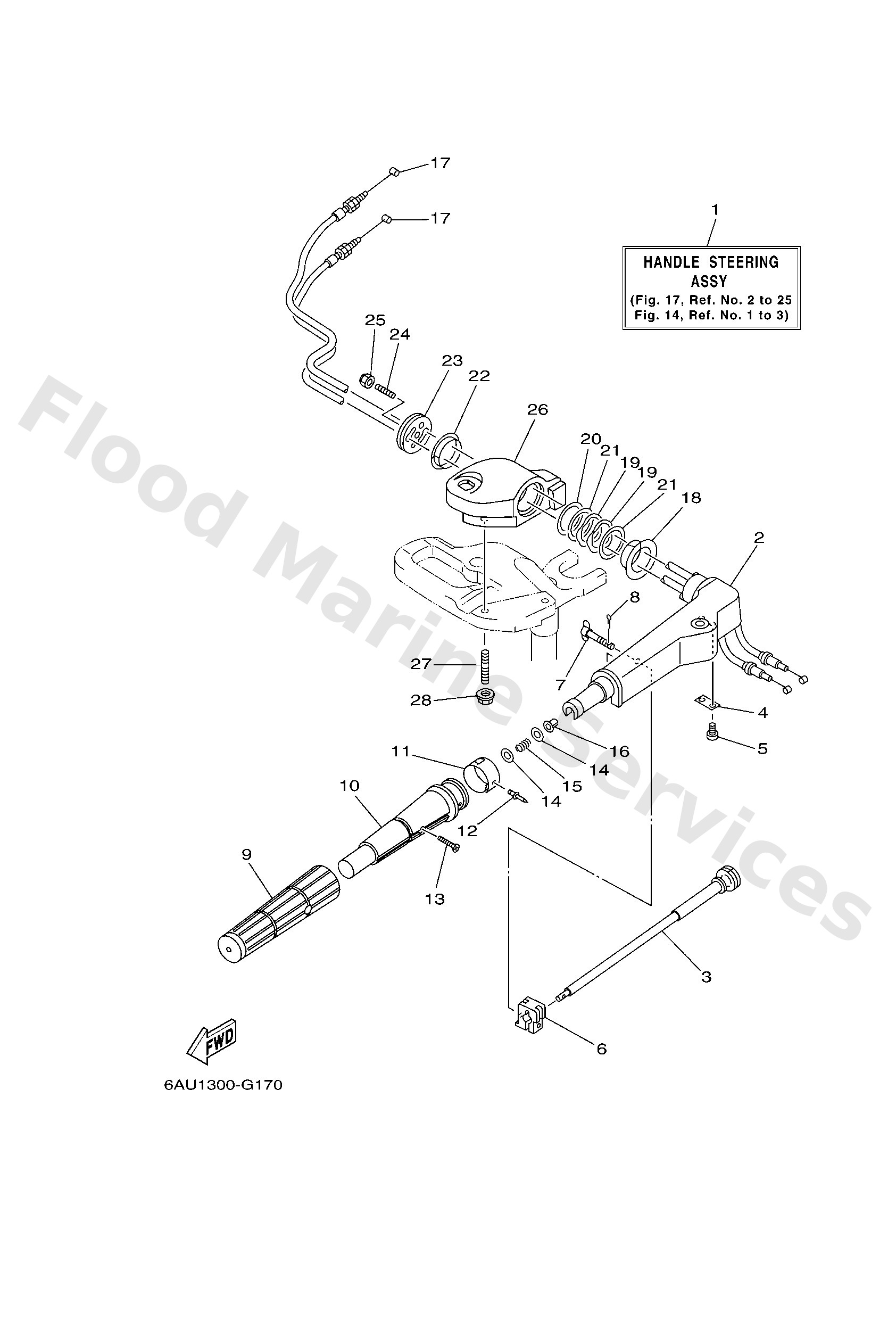

Diagram: STEERING
Parts List
Reference
Description
Price
1
6AUW0084014D
Handle steering assembly
Loading…
↗
2
63V42111014D
Handle, steering
Loading…
↗
3
6G14213801
Lever, throttle
Loading…
↗
4
6E04215902
Stay
Loading…
↗
5
9788505012
Screw,pan head (646)
Loading…
↗
6
6G14212600
Piece, friction
Loading…
↗
7
6G14212501
Bolt, friction adjusting
Loading…
↗
8
9149016010
Pin, cotter
Loading…
↗
9
67D4217700
Rubber, handle
Loading…
↗
10
67D4211901
Grip, steering handle
Loading…
↗
11
6AU4213700
Indicator, throttle
Loading…
↗
12
9026902M09
Rivet(6l5)
Loading…
↗
13
9015205011
Screw, countersunk
Loading…
↗
14
9020110M02
Washer, plate(6g9)
Loading…
↗
15
9050123215
Spring (655)
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
68T2630101
Throttle cable assembly
Loading…
↗
18
9038634M97
Bush(63v)
Loading…
↗
19
9020636M21
Washer, wave(63v)
Loading…
↗
20
9020236M55
Washer, plate(63v)
Loading…
↗
21
9020137008
Washer, plate
Loading…
↗
22
9038633M96
Bush(63v)
Loading…
↗
23
68T4213101
Cover, handle steering
Loading…
↗
24
9011608015
Bolt, stud
Loading…
↗
25
9018508057
Nut, nylon (6j8)
Loading…
↗
26
6AU42121014D
Bracket
Loading…
↗
27
9011610040
Bolt, stud
Loading…
↗
28
9017910M33
Nut
Loading…
↗
