F9.9HMH (2009)
STEERING

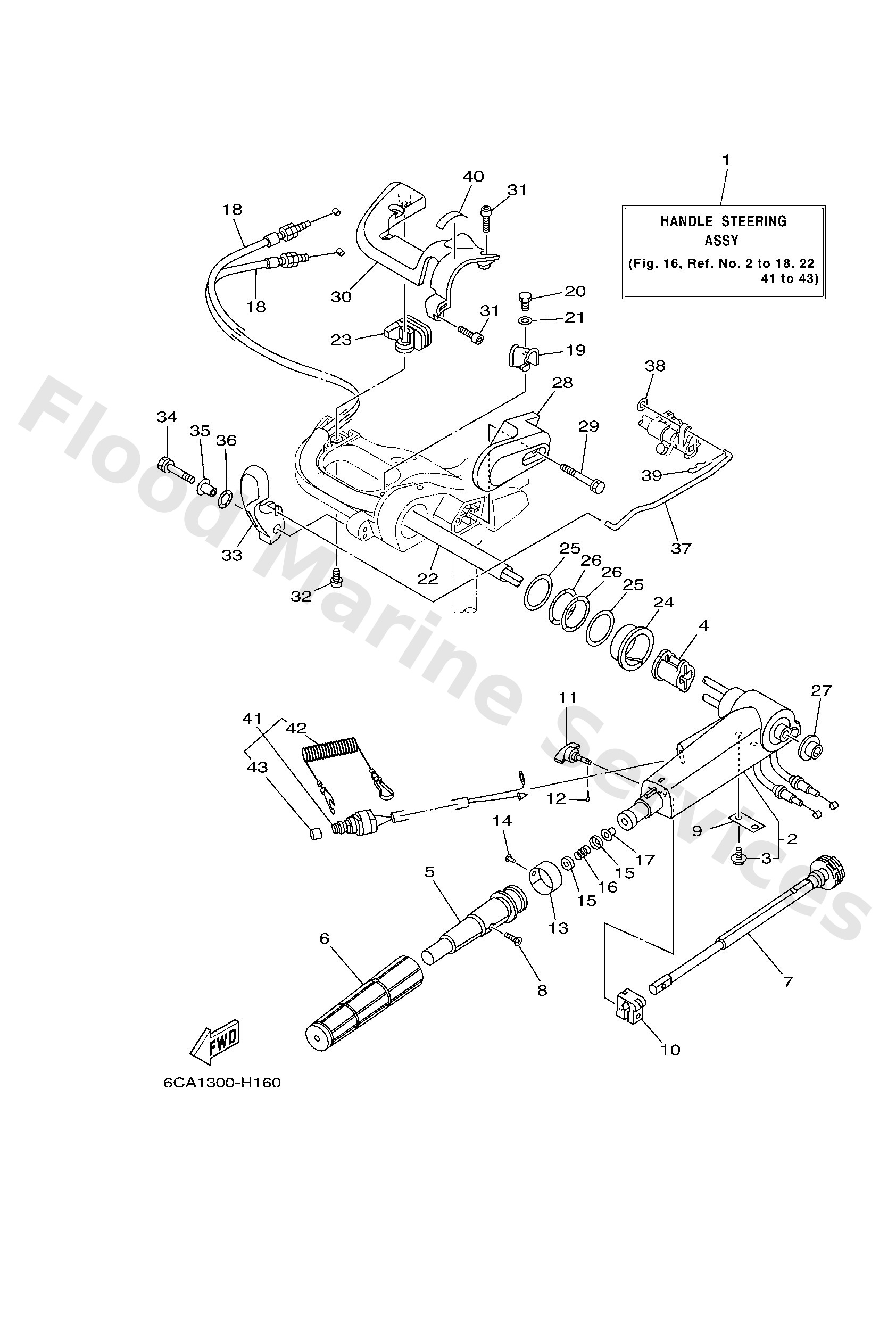

Diagram: STEERING
Parts List
Reference
Description
Price
1
6AHW0084014D
Handle steering assembly
Loading…
↗
2
6AH42101014D
Handle, steering
Loading…
↗
3
9010906M86
Bolt
Loading…
↗
4
6AH2628800
Grommet, cable
Loading…
↗
5
66M4211900
Grip, steering handle
Loading…
↗
6
67D4217700
Rubber, handle
Loading…
↗
7
65W4213800
Lever, throttle
Loading…
↗
8
9014905M13
Screw, countersunk
Loading…
↗
9
65W4215900
Stay
Loading…
↗
10
6G14212600
Piece, friction
Loading…
↗
11
65W4212500
Bolt, friction adjusting
Loading…
↗
12
9149016010
Pin, cotter
Loading…
↗
13
6J04213700
Indicator, throttle
Loading…
↗
14
9026902M09
Rivet(6l5)
Loading…
↗
15
6X44418800
Washer
Loading…
↗
16
9050123215
Spring (655)
Loading…
↗
17
9038608004
Bush
Loading…
↗
18
6AH2631100
Cable, throttle 1
Loading…
↗
19
6AH4455400
Plate
Loading…
↗
20
9709506014
Bolt(gj3)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6AH2634E00
Protector 1
Loading…
↗
23
6AH4255100
Grommet
Loading…
↗
24
9038645001
Bush
Loading…
↗
25
9020139008
Washer, plate
Loading…
↗
26
9020639001
Washer, wave
Loading…
↗
27
9038120001
Bush, solid
Loading…
↗
28
6AH42131004D
Cover, handle steering
Loading…
↗
29
9759506555
Bolt, hexagon w/w deep recess
Loading…
↗
30
6AH4253200
Cover
Loading…
↗
31
9011106072
Bolt,hex. socket button
Loading…
↗
32
9778060520
Screw, tapping(6k8)
Loading…
↗
33
6AH4411100
Handle, gear shift
Loading…
↗
34
9011906M05
Bolt, with washer(6l2)
Loading…
↗
35
9038706M86
Collar
Loading…
↗
36
9020615M18
Washer, wave(6l2)
Loading…
↗
37
6AH4412400
Link, shift rod
Loading…
↗
38
9299006200
Ybs66-6 washer, plain
Loading…
↗
39
9046818008
Clip 620436610000
Loading…
↗
40
6G84419100
Indicator, shift
Loading…
↗
41
6AH8257500
Engine stop switch assembly
Loading…
↗
42
6828255600
Lanyard, stop switch
Loading…
↗
43
6898257Y00
Cap
Loading…
↗
