Yamaha Outboard Parts - STEERING - FT8DMH (2002) | Flood Marine

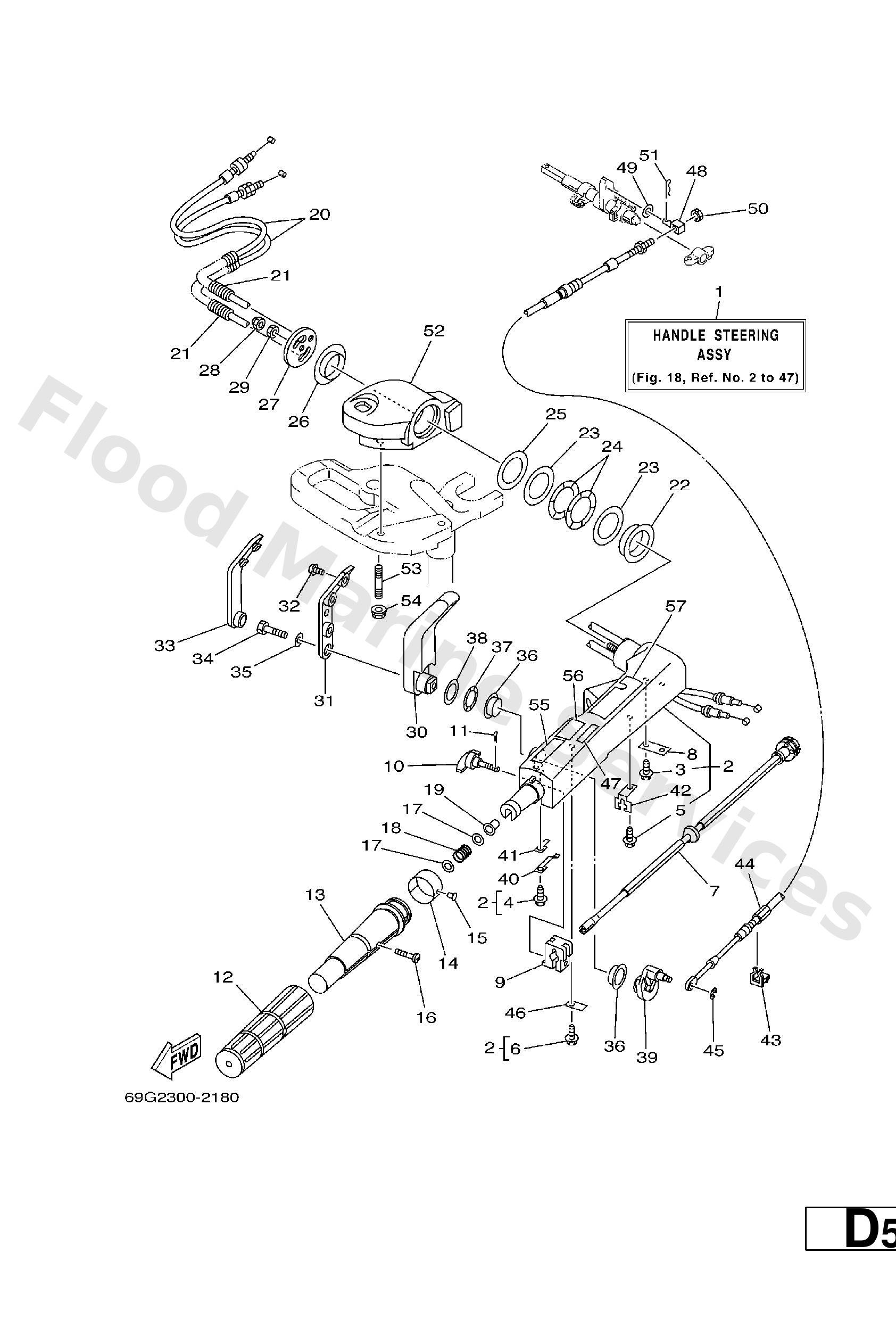

Diagram: STEERING

Diagram

Parts List

Reference
Description
Price


3
90109−06M86
Bolt
Loading…

↗
4
90109−06M80
Bolt
Loading…

↗
7
69G−42138−00
Lever, throttle
Loading…

↗
8
65W−42159−00
Stay
Loading…

↗
9
6G1−42126−00
Piece, friction
Loading…

↗
10
65W−42125−00
Bolt, friction adjusting
Loading…

↗
11
91490−16010
Pin, cotter
Loading…

↗
12
67D−42177−00
Rubber, handle
Loading…

↗
13
67D−42119−00
Grip, steering handle
Loading…

↗
14
68T−42137−00
Indicator, throttle
Loading…

↗
15
90269−02M09
Rivet(6l5)
Loading…

↗
16
90149−05M13
Screw, countersunk
Loading…

↗
17
90201−10M02
Washer, plate(6g9)
Loading…

↗
18
90501−23215
Spring (655)
Loading…

↗
19
90386−08032
Bushing (650)
Loading…

↗
20
68T−26301−11
Throttle cable assembly
Loading…

↗
21
90447−07005
Hose, with spring
Loading…

↗
22
66R−42171−00
Bushing
Loading…

↗
23
90201−43M00
Washer, plate
Loading…

↗
24
90206−43M22
Washer, wave
Loading…

↗
25
90202−43M57
Washer, plate
Loading…

↗
26
90386−40M99
Bush
Loading…

↗
27
66M−42131−01
Cover, handle steering
Loading…

↗
28
95780−10300
Nut, nylon (6e5)
Loading…

↗
29
95380−10700
Nut (682)
Loading…

↗
30
66R−44111−00−4D
Handle, gear shift
Loading…

↗
31
66R−44173−00
Lever, shift control
Loading…

↗
32
90159−06M18
Screw, with washer(6b0)
Loading…

↗
33
66R−42129−00
Bushing, rubber
Loading…

↗
34
97095−08030
Bolt, hexagon (fj1)
Loading…

↗
35
92995−08600
Washer, plain (663)
Loading…

↗
36
90386−26MA3
Bush
Loading…

↗
37
90206−26M25
Washer, wave
Loading…

↗
38
90202−26M59
Washer, plate
Loading…

↗
39
68T−44113−01
Cam plate, handle
Loading…

↗
40
66R−44116−00
Spring
Loading…

↗
41
66R−44118−00
Bracket
Loading…

↗
42
66R−48538−00
Clamp, cable 1
Loading…

↗
43
63D−48538−00
Clamp, cable 1
Loading…

↗
44
68T−48321−00
Cable
Loading…

↗
45
99080−04600
Circlip (eu0)
Loading…

↗
46
66R−44114−00
Stopper
Loading…

↗
47
6E0−44191−11
Indicator, shift
Loading…

↗
48
66R−48344−00
Cable end, remote control
Loading…

↗
49
90201−06M62
Washer, plate (6e5)
Loading…

↗
50
90170−05M38
Nut
Loading…

↗
51
91490−20012
Pin, cotter (648)
Loading…

↗
52
68T−42121−10−4D
Bracket
Loading…

↗
53
90116−10M28
Bolt, stud
Loading…

↗
54
90179−10004
Nut
Loading…

↗
55
6E0−83627−41
Label, caution 7
Loading…

↗
56
6E0−83627−51
Label, Caution 7
Loading…

↗
57
68T−1571Y−60
Mark, Caution
Loading…

↗
