Yamaha Outboard Parts - STEERING - FT9.9GMH (2008) | Flood Marine
New Search
Parts
New Outboards
Home
FT9.9GMH (2008)
STEERING

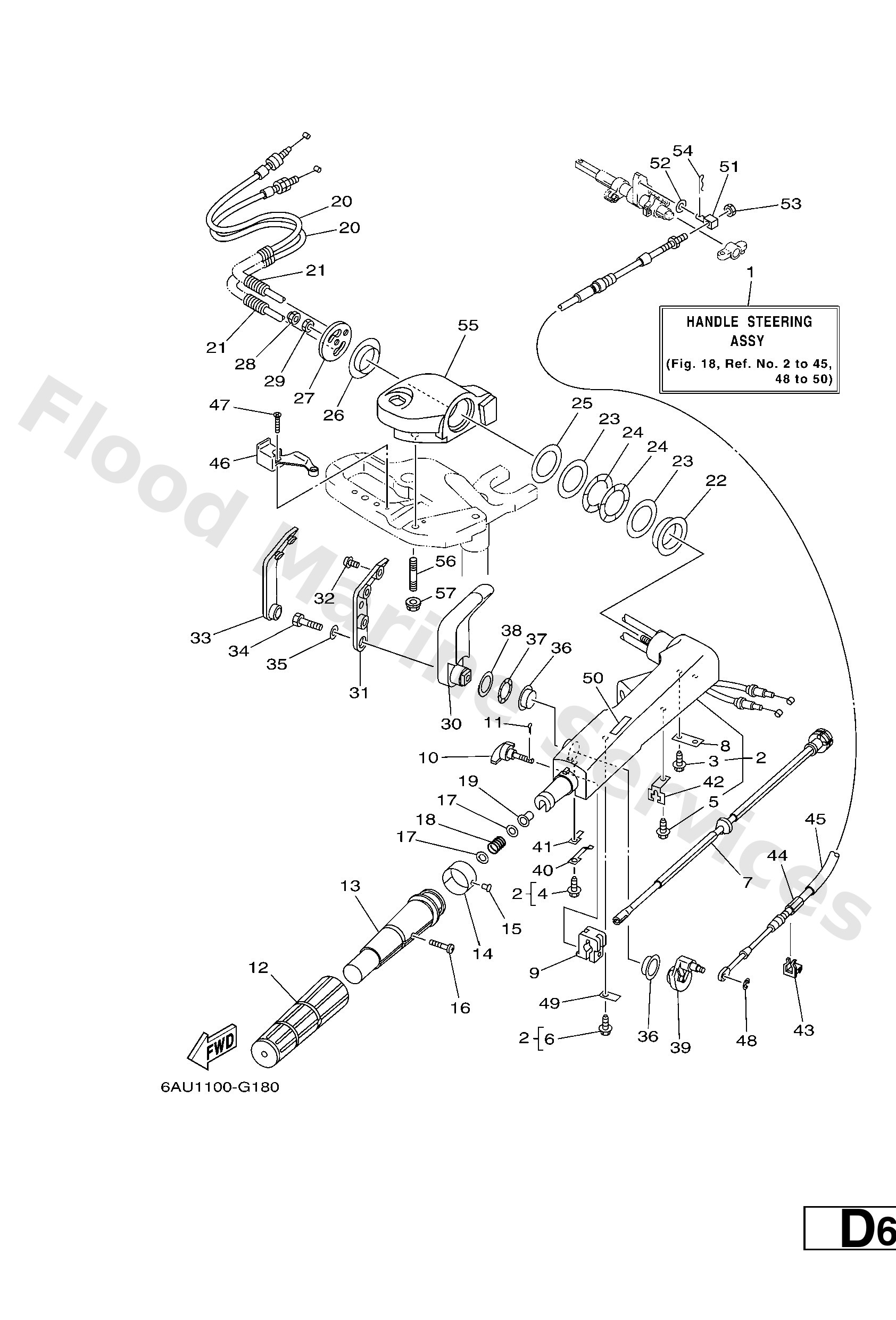

Diagram: STEERING
Parts List
Reference
Description
Price
1
69GW0084004D
Handle steering assembly
Loading…
↗
2
66R42101014D
Handle, steering
Loading…
↗
3
9010906M86
Bolt
Loading…
↗
4
9010906M80
Bolt
Loading…
↗
7
69G4213800
Lever, throttle
Loading…
↗
8
65W4215900
Stay
Loading…
↗
9
6G14212600
Piece, friction
Loading…
↗
10
65W4212500
Bolt, friction adjusting
Loading…
↗
11
9149016010
Pin, cotter
Loading…
↗
12
67D4217700
Rubber, handle
Loading…
↗
13
67D4211900
Grip, steering handle
Loading…
↗
14
6AU4213700
Indicator, throttle
Loading…
↗
15
9026902M09
Rivet(6l5)
Loading…
↗
16
9014905M13
Screw, countersunk
Loading…
↗
17
9020110M02
Washer, plate(6g9)
Loading…
↗
18
9050123215
Spring (655)
Loading…
↗
19
9038608032
Bushing (650)
Loading…
↗
20
68T2630111
Throttle cable assembly
Loading…
↗
21
9044707005
Hose, with spring
Loading…
↗
22
66R4217100
Bushing
Loading…
↗
23
9020143M00
Washer, plate
Loading…
↗
24
9020643M22
Washer, wave
Loading…
↗
25
9020243M57
Washer, plate
Loading…
↗
26
9038640M99
Bush
Loading…
↗
27
66M4213101
Cover, handle steering
Loading…
↗
28
9578010300
Nut, nylon (6e5)
Loading…
↗
29
9538010700
Nut (682)
Loading…
↗
30
66R44111004D
Handle, gear shift
Loading…
↗
31
66R4417300
Lever, shift control
Loading…
↗
32
9015906M18
Screw, with washer(6b0)
Loading…
↗
33
66R4212900
Bushing, rubber
Loading…
↗
34
9709508030
Bolt, hexagon (fj1)
Loading…
↗
35
9299508600
Washer, plain (663)
Loading…
↗
36
9038626MA3
Bush
Loading…
↗
37
9020626M25
Washer, wave
Loading…
↗
38
9020226M59
Washer, plate
Loading…
↗
39
68T4411301
Cam plate, handle
Loading…
↗
40
66R4411600
Spring
Loading…
↗
41
66R4411800
Bracket
Loading…
↗
42
66R4853800
Clamp, cable 1
Loading…
↗
43
63D4853800
Clamp, cable 1
Loading…
↗
44
68T4832101
Cable
Loading…
↗
45
9044615002
Hose
Loading…
↗
46
68T8259410
Clamp
Loading…
↗
47
9015105003
Screw, countersunk
Loading…
↗
48
9908004600
Circlip (eu0)
Loading…
↗
49
66R4411400
Stopper
Loading…
↗
50
6E04419111
Indicator, shift
Loading…
↗
51
66R4834400
Cable end, remote control
Loading…
↗
52
9020106M62
Washer, plate (6e5)
Loading…
↗
53
9017005M38
Nut
Loading…
↗
54
9149020012
Pin, cotter (648)
Loading…
↗
55
6AU42121104D
Bracket
Loading…
↗
56
9011610040
Bolt, stud
Loading…
↗
57
9017910M33
Nut
Loading…
↗
