50HETO (2020)
STEERING 1

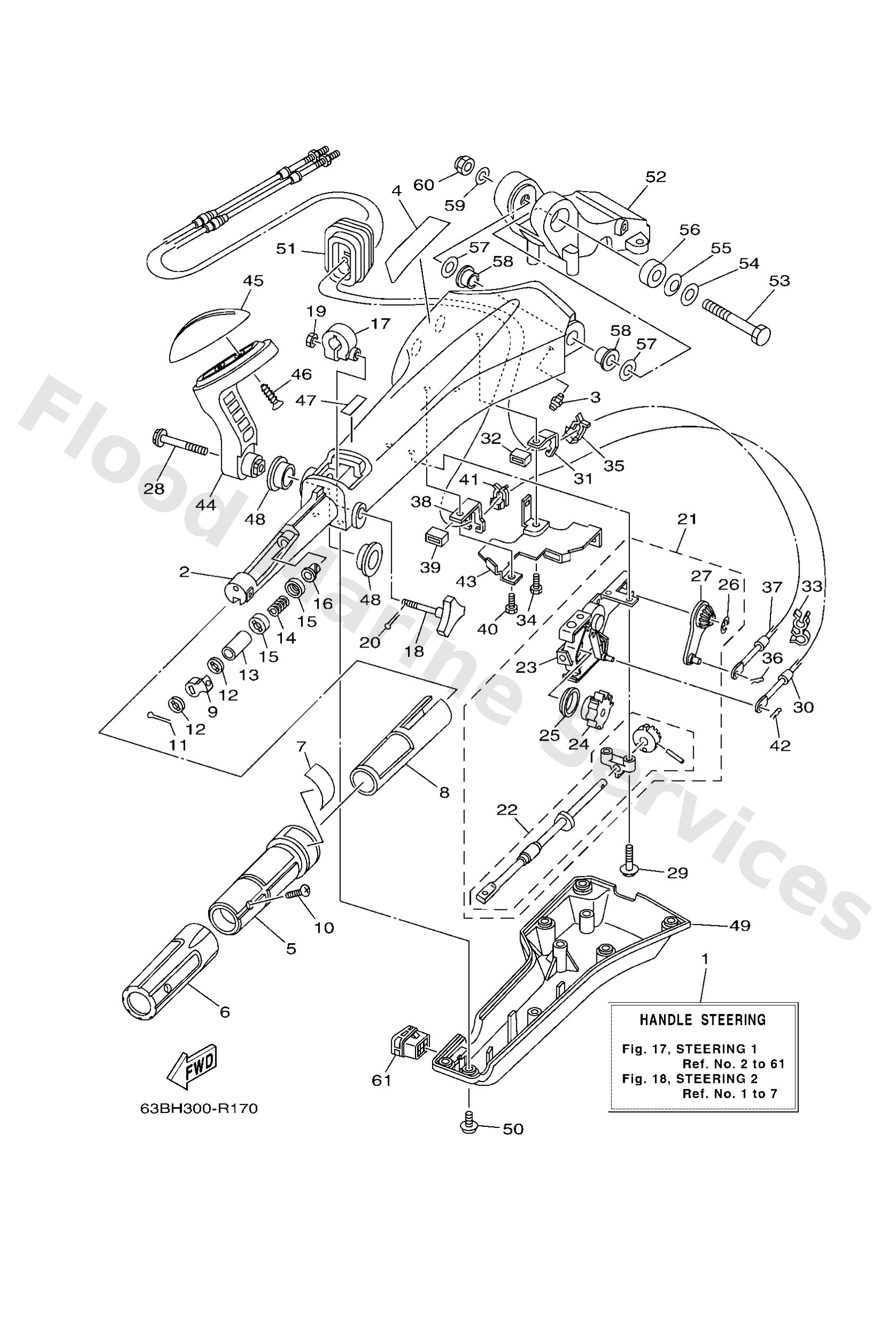

Diagram: STEERING 1
Parts List
Reference
Description
Price
1
6X442101G5
Handle, steering
Loading…
↗
2
6X442111028D
Handle, steering
Loading…
↗
3
9370006002
Nipple, grease
Loading…
↗
4
6X44821510
Graphic
Loading…
↗
5
6X44211901
Grip, steering handle
Loading…
↗
6
6X44217700
Rubber, handle
Loading…
↗
7
6X44213700
Indicator, throttle
Loading…
↗
8
6X44129100
Bushing
Loading…
↗
9
6X44413901
Collar
Loading…
↗
10
9015205007
Screw, countersunk
Loading…
↗
11
9149020010
Pin, cotter
Loading…
↗
12
6X44417700
Washer
Loading…
↗
13
6X44212800
Collar, distance 1
Loading…
↗
14
9050123215
Spring (655)
Loading…
↗
15
6X44418800
Washer
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
63D4212600
Friction, steering handle grip
Loading…
↗
18
6X44815400
Knob, throttle
Loading…
↗
19
9538006600
Nut(661)
Loading…
↗
21
6X44410011
Shift link assembly
Loading…
↗
22
6X44211500
Shaft, steering handle
Loading…
↗
23
6X44410200
Shift assist assembly.
Loading…
↗
24
6X44773101
Gear, drive
Loading…
↗
25
6X44413200
Bushing
Loading…
↗
26
6X41413700
Clip
Loading…
↗
27
6X44826100
Arm, throttle
Loading…
↗
28
97E9508540
Bolt, hexagon w/w deep recess
Loading…
↗
29
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
30
63D4832111
Cable
Loading…
↗
31
6X44853800
Clamp, cable 1
Loading…
↗
32
6X42636700
Protector
Loading…
↗
33
9046409M42
Clamp(6b0)
Loading…
↗
34
97D9506014
Bolt, hexagon deep recess
Loading…
↗
35
63D4853800
Clamp, cable 1
Loading…
↗
36
9046810005
Pin, hair 6264123500
Loading…
↗
37
63D2630101
Throttle cable assembly
Loading…
↗
38
6X44853810
Clamp, cable 1
Loading…
↗
43
6X44215900
Stay
Loading…
↗
44
6X444159A08D
Handle, gear shift
Loading…
↗
45
6X44417300
Lever, shift control
Loading…
↗
46
9778060920
Screw, tapping
Loading…
↗
47
6X34419100
Indicator, shift
Loading…
↗
48
9038626MA3
Bush
Loading…
↗
49
6X44213101
Cover, handle steering
Loading…
↗
50
9798506216
Screw, with washer(6h2)
Loading…
↗
51
6X44272510
Grommet
Loading…
↗
52
63D42121228D
Bracket
Loading…
↗
53
9010112014
Bolt
Loading…
↗
54
9299012200
Ybs66-12 washer,plain
Loading…
↗
55
9020612M22
Washer, wave(6b0)
Loading…
↗
56
9038712M02
Collar(6b0)
Loading…
↗
57
9020112035
Washer, plate
Loading…
↗
58
9038612003
Bush
Loading…
↗
59
9299012600
Washer, plate(663)
Loading…
↗
60
9018512M12
Nut, self-locking(6e5)
Loading…
↗
61
6X44272810
Cap
Loading…
↗
