F80AET (2003)
STEERING 1

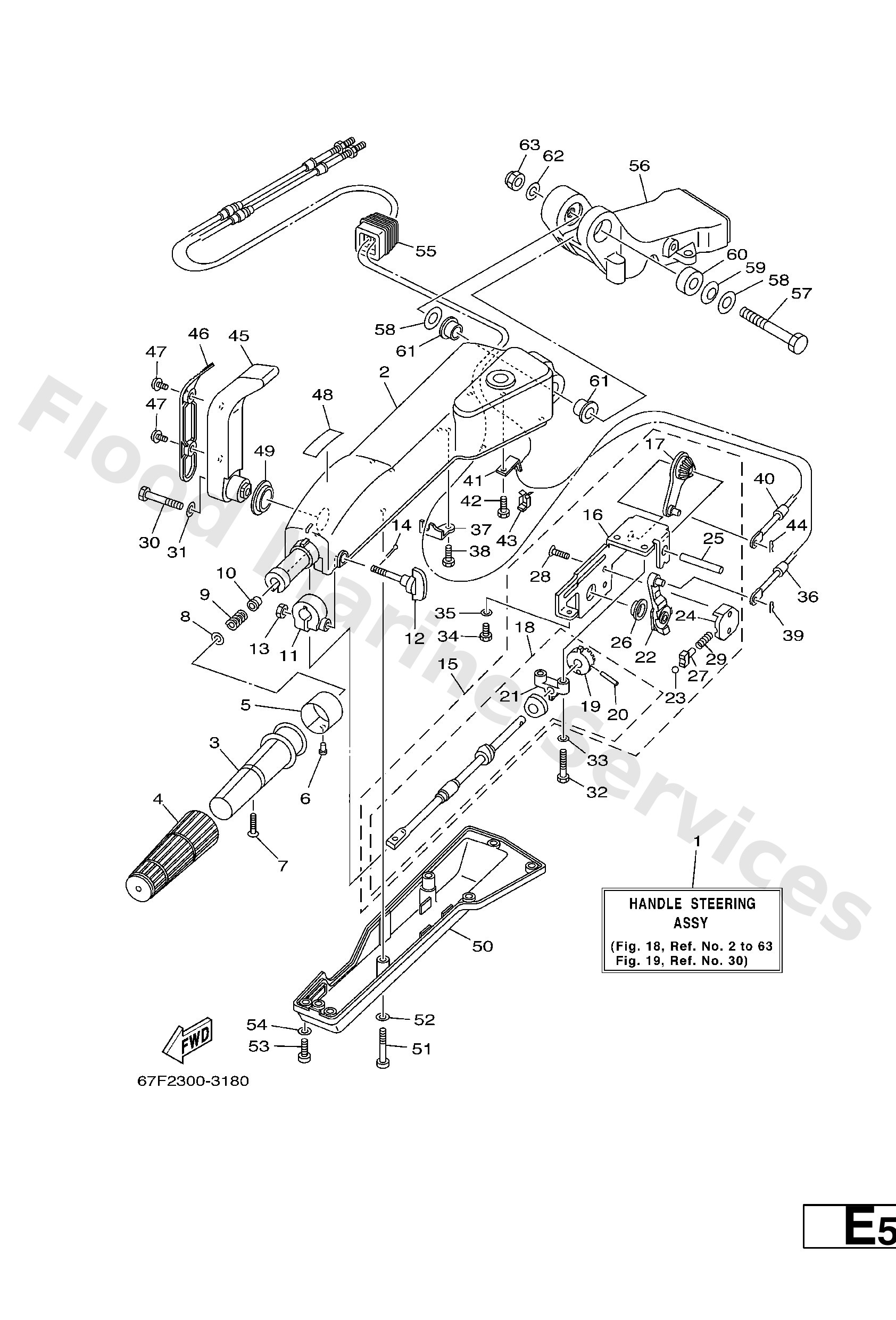

Diagram: STEERING 1
Parts List
Reference
Description
Price
3
664−42119−00
Grip, steering handle
Loading…
↗
4
6G1−42177−00
Rubber, handle
Loading…
↗
5
6H2−42137−00
Indicator, throttle
Loading…
↗
6
90269−02M09
Rivet(6l5)
Loading…
↗
7
90149−05M13
Screw, countersunk
Loading…
↗
8
92903−10600
Washer, plate
Loading…
↗
9
90501−23215
Spring (655)
Loading…
↗
10
90386−08032
Bushing (650)
Loading…
↗
11
63D−42126−00
Friction, steering handle grip
Loading…
↗
12
63D−48154−00
Knob, Throttle
Loading…
↗
13
95380−06600
Nut(661)
Loading…
↗
14
91490−20010
Pin, cotter
Loading…
↗
15
67G−44100−10
Shift Link assembly
Loading…
↗
16
67G−44104−00
Plate Comp.
Loading…
↗
17
67G−48261−00
17 −
Loading…
↗
18
67G−42115−10
Shaft, Steering Handle
Loading…
↗
20
91690−30025
Pin, spring
Loading…
↗
21
67G−42159−00
17 −
Loading…
↗
22
67G−44113−00
Cam Plate, Handle
Loading…
↗
23
63D−48236−00
Roller, detent
Loading…
↗
24
63D−48119−00
Cover
Loading…
↗
25
67G−42153−00
17 −
Loading…
↗
26
67G−44132−00
Bushing
Loading…
↗
27
63D−48237−00
Adaptor
Loading…
↗
28
98785−05014
Screw 3
Loading…
↗
29
63D−48238−00
Spring, detent
Loading…
↗
30
97095−08040
Bolt, hexagon
Loading…
↗
31
92995−08600
Washer, plain (663)
Loading…
↗
32
97095−06030
Bolt(jf7)
Loading…
↗
33
92995−06600
Washer, plain (646)
Loading…
↗
34
97095−06014
Bolt(gj3)
Loading…
↗
36
67G−48321−10
Cable
Loading…
↗
37
67G−48531−00
17 −
Loading…
↗
39
90468−10005
Pin, hair 6264123500
Loading…
↗
40
67G−26301−10
Throttle cable assembly
Loading…
↗
41
66R−48538−00
Clamp, cable 1
Loading…
↗
43
63D−48538−00
Clamp, cable 1
Loading…
↗
45
67G−44159−00−4D
Handle, Gear Shift
Loading…
↗
46
67G−44173−00
Lever, Shift Control
Loading…
↗
47
90159−06M18
Screw, with washer(6b0)
Loading…
↗
48
6G8−44191−00
Indicator, shift
Loading…
↗
49
90386−26MA3
Bush
Loading…
↗
50
67G−42131−00
17 −
Loading…
↗
51
97885−06040
Screw pan head
Loading…
↗
53
97885−06016
Screw, pan head(6b0)
Loading…
↗
55
63D−42725−00
17 −
Loading…
↗
56
63D−42121−30−4D
Bracket
Loading…
↗
57
90101−12M09
Bolt
Loading…
↗
58
92990−12200
Ybs66-12 washer,plain
Loading…
↗
59
90206−12M22
Washer, wave(6b0)
Loading…
↗
60
90387−12M02
Collar(6b0)
Loading…
↗
61
90386−12M93
Bush(6b0)
Loading…
↗
62
92990−12600
Washer, plate(663)
Loading…
↗
63
90185−12M12
Nut, self-locking(6e5)
Loading…
↗
