F100CET (2003)
STEERING 2

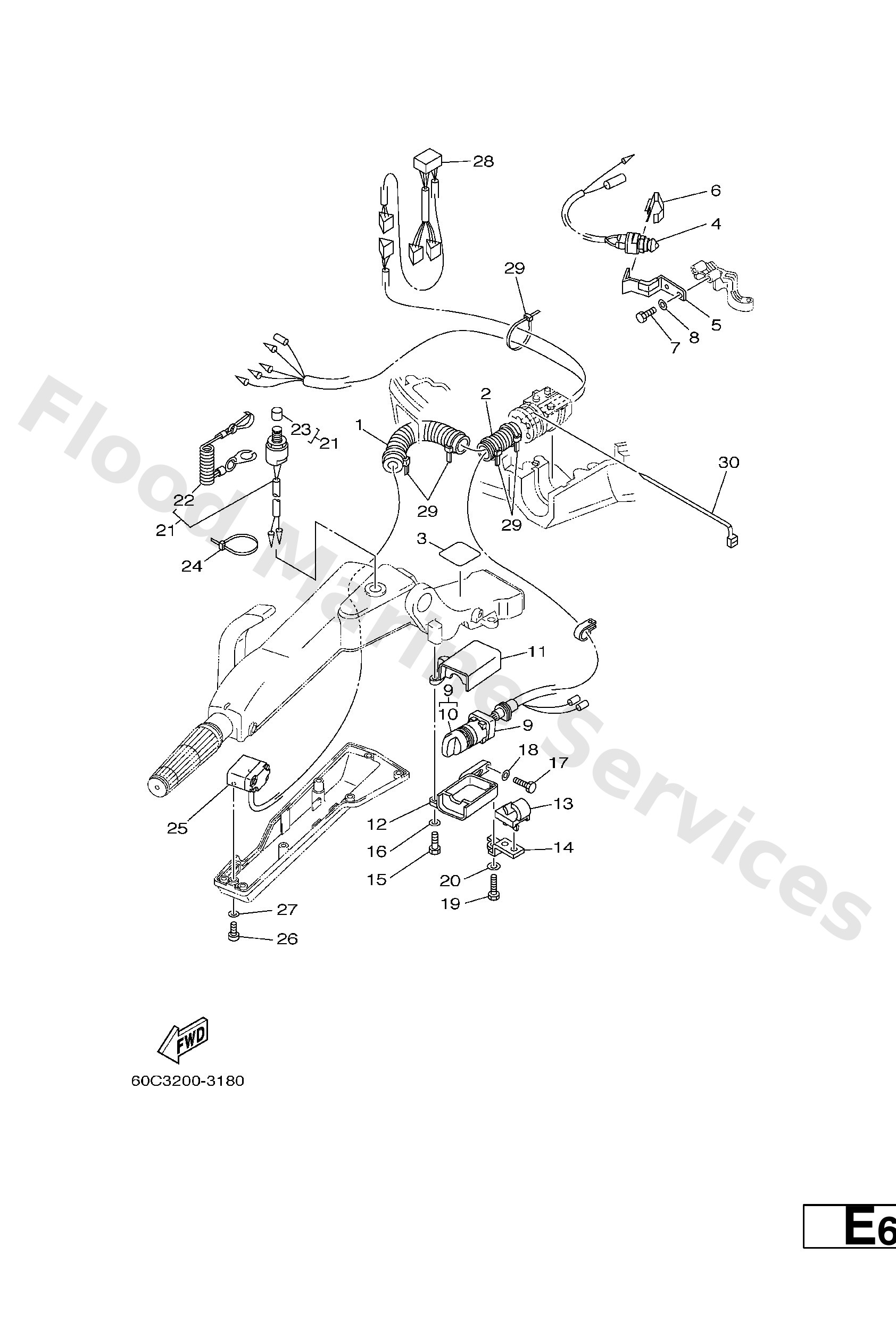

Diagram: STEERING 2
Parts List
Reference
Description
Price
1
90446−24M79
AP
Hose
Loading…
↗
2
6K3−83557−00
AP
Tube
Loading…
↗
3
67G−42735−00
AP
Protector
Loading…
↗
4
688−82540−11
AP
Neutral switch assembly
Loading…
↗
5
67G−82554−01
AP
Stay, Neutral Switch
Loading…
↗
6
62Y−82555−00
AP
Damper, Main Switch 1
Loading…
↗
7
97095−06014
AP
Bolt(gj3)
Loading…
↗
8
92995−06600
AP
Washer, plain (646)
Loading…
↗
9
67G−82510−50
AP
Main Switch assembly
Loading…
↗
10
676−82577−00
Cap, key
Loading…
↗
11
63D−8252E−01−4D
AP
Cover, main switch 1
Loading…
↗
12
63D−8252F−01−4D
AP
Cover, main switch 2
Loading…
↗
13
63D−24367−00
AP
Clamp, fuel pipe 2
Loading…
↗
14
63D−24364−00
AP
Stay
Loading…
↗
15
97095−06025
AP
Bolt
Loading…
↗
17
97095−06020
AP
Bolt(7u8)
Loading…
↗
19
97095−06030
AP
Bolt(jf7)
Loading…
↗
21
69W−82575−00
AP
Engine stop switch assembly
Loading…
↗
22
682−82556−00
Lanyard, stop switch
Loading…
↗
23
689−8257Y−00
Cap
Loading…
↗
24
90465−13M11
AP
Clamp (6e5)
Loading…
↗
25
67G−82563−00
AP
Trim & tilt switch assembly
Loading…
↗
26
97885−06016
AP
Screw, pan head(6b0)
Loading…
↗
28
63D−83728−00
AP
Connector assembly
Loading…
↗
29
90465−13M24
AP
Band, switch cord
Loading…
↗
30
90465−13M30
AP
Clamp
Loading…
↗
